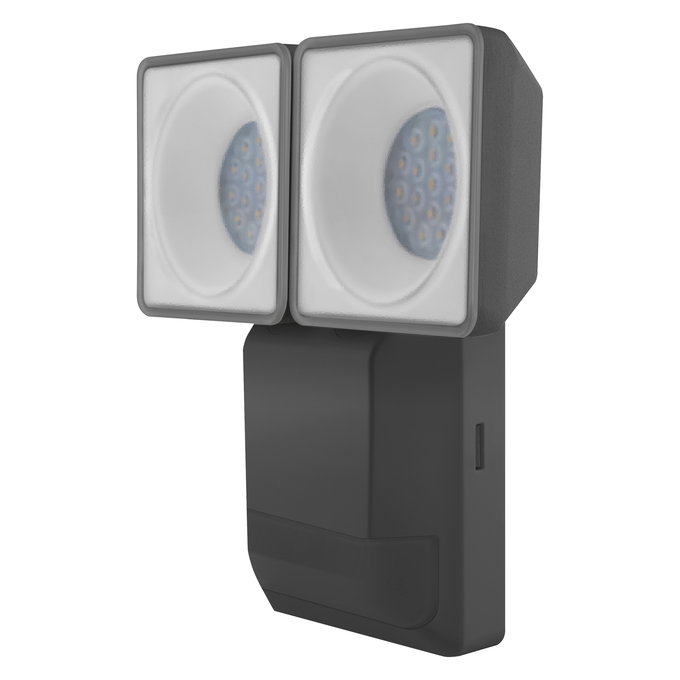

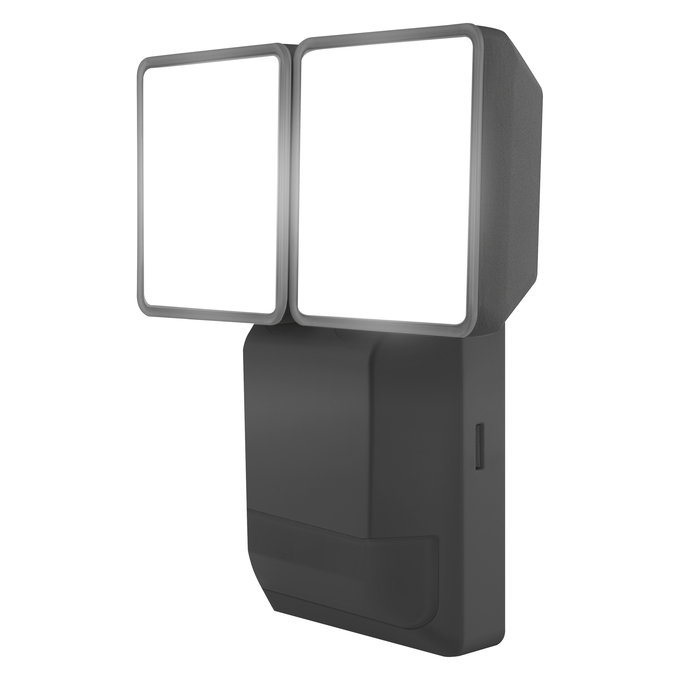

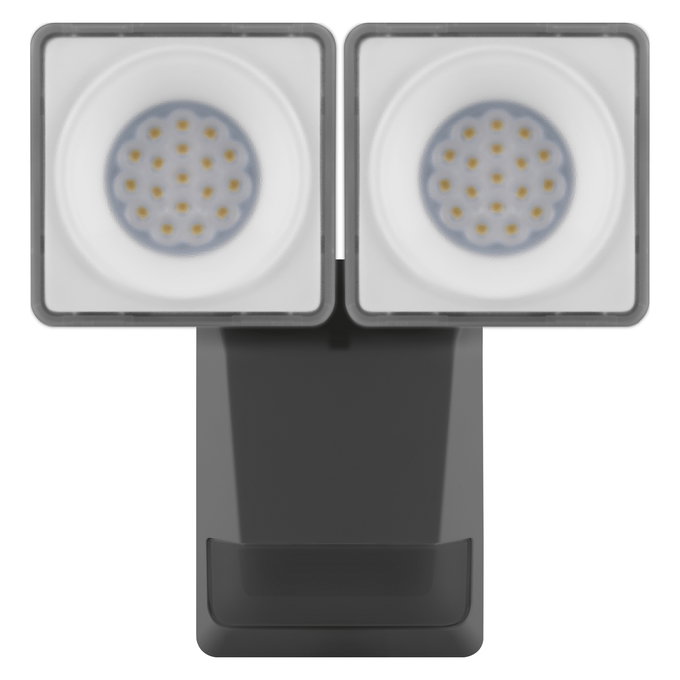

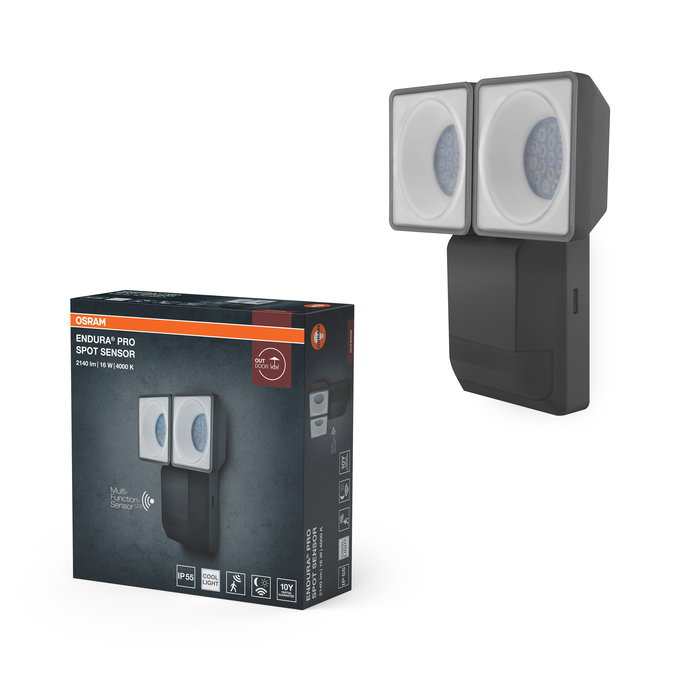

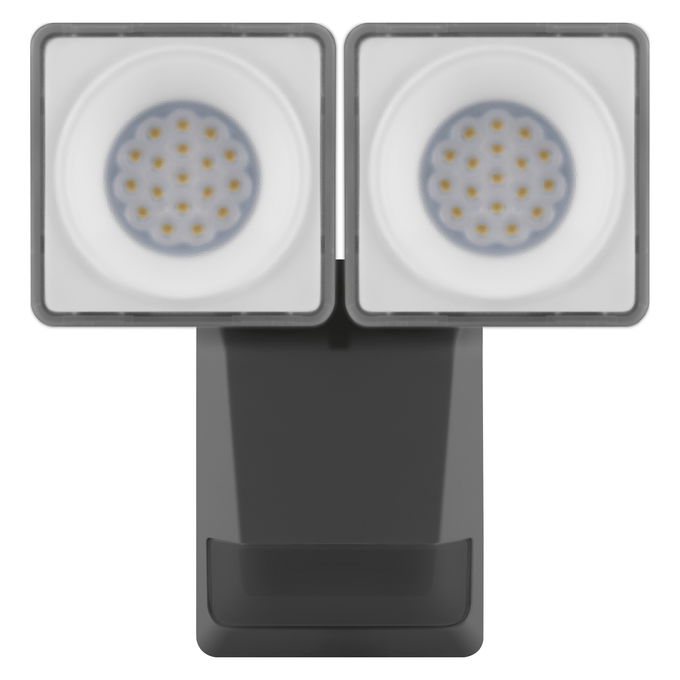

ENDURA PRO Spot Sensor 16W 4000K IP55 Dark Gray

4 operating modes selectable (light 6h continous on, standby, switch-on by movement or dusk)
Adjustable luminaire head
Type of protection: IP55
Impact resistance: IK05
Protection class: II

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.

Product identifiers

SKU: 4099854451812

EAN: 4099854451812

GTIN: 4099854451812

MPN: 4099854451812

Price: £ 0.00 Excl. VAT

Specifications

Sensor

Lifespan

Lifespan L70/B50 at 25 °C	30000 h 1)
Number of switching cycles	12500

Control gear

Output current

220…280 mA

Electrical data

Nominal wattage	16.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	86.000 mA
Inrush current time T h50	50 µs
Max. number of luminaires per miniature circuit breaker B16	94
Max. number of luminaires per miniature circuit breaker C10	75
Max. number of luminaires per miniature circuit breaker C16	120
Power factor λ	> 0.85
Protection class	II
Operating mode	Mains voltage

Photometrical data

Luminous flux	1500 lm
Total luminous flux of contained light sources	2140 lm
Luminous efficacy	86 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	≥80
Standard deviation of color matching	≤6 sdcm
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	50 °

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-25…+70 °C
Type of connection	Terminal, 3-Pole (L, N, PE)
Type of protection	IP55
Protection class IK (shock resistance)	IK05
Dimmable	No
Mounting type	Surface
Application environment	Outdoor
With light source	Yes
Replaceable light source	No
