LED PIN 20 320° 1.5W 827 Clear G4

LED PIN 20 320° 1.5W 827 Clear G4 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £3.89 excl. VAT.

Product benefits

Variable use at Direct Current and Alternating Current
Good all-around light emission
Ideal for decorative and free-burning applications
Long lifetime of up to 15,000 h
Three year guarantee
Lower energy consumption than incandescent or halogen lamps

Areas of application

Decorative applications
Atmospheric accent lighting throughout the home
Outdoor use in suitable outdoor luminaires only

Product features

Compatible with many common conventional and electronic control gears (see also compatibility list)
LED alternative to low voltage halogen lamps
Base: G4, GY6.35

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.
To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.

References / Links

For Guarantee see www.osram-lamps.com/guarantee
For further products and actual information concerning LED lamps see www.osram-lamps.com/led-lamps

Product identifiers

SKU: 4058075431966

EAN: 4058075431966

GTIN: 4058075431966

MPN: 4058075431966

Price: £ 3.89 Excl. VAT

Specifications

Electrical data

Nominal wattage	1.5 W
Construction wattage	1.50 W
Nominal voltage	12 V
Operating mode	12V AC/DC 1)
Claimed equiv. conventional lamp power	20 W
Nominal current	200 mA
Type of current	AC/DC
Inrush current	3.9 A
Max. lamp number on MCB B10 A	7
Max. lamp number on MCB B16 A	12
Total harmonic distortion	93 %
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED PIN G4 GY6.35

Open

Declarations of conformity UKCA – LED lamp

Open

PRODUCT DATASHEET – PIN203001.8W2700KG4en

Open

Product datasheet -> old version of product – LEDPIN20320°1.8W827Cl earG4en

Open

Product datasheet -> old version of product – LEDPIN20320°1.5W827Cl earG4en

Open

Product datasheet -> old version of product – LEDPIN20320°1.5W827Cl earG4en

Open

Product Images And Graphics

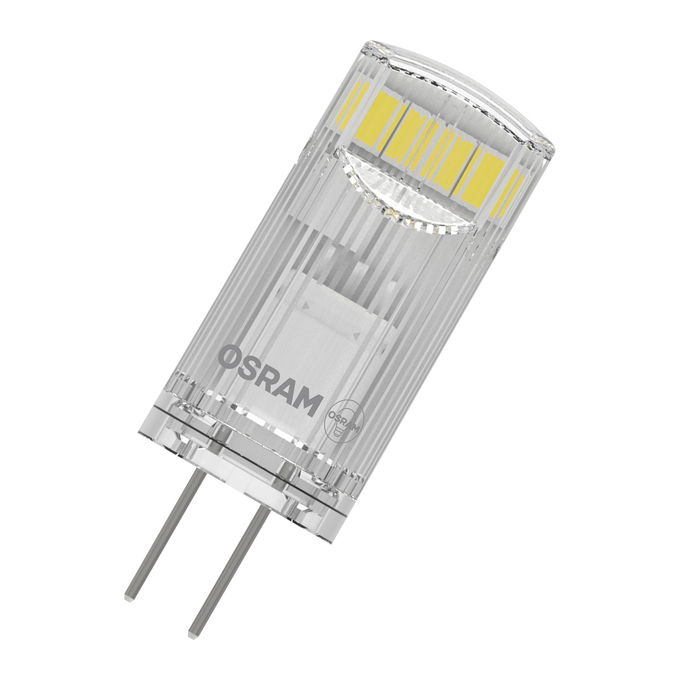

Product image: white background, diagonal with OSRAM logo – LED PIN20 12V Clear G4 Plastic

Open

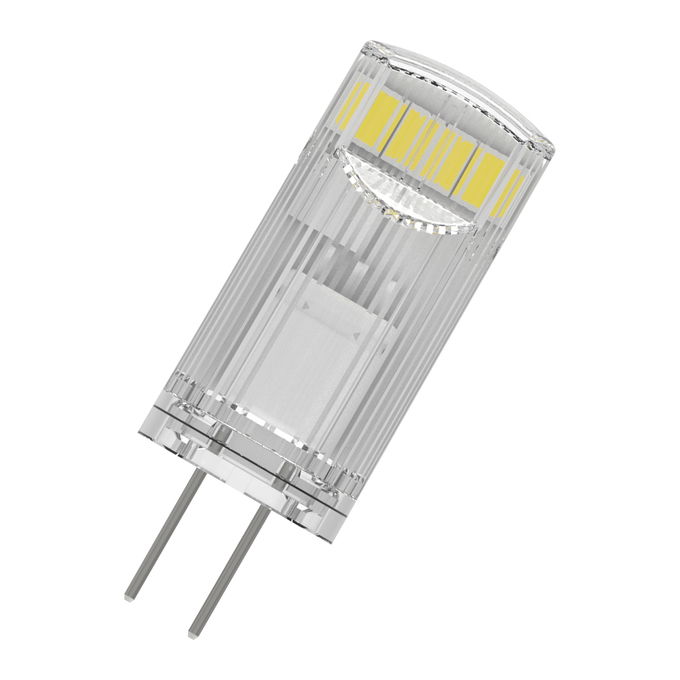

Product image: white background, diagonal – LED PIN20 12V Clear G4 Plastic

Open

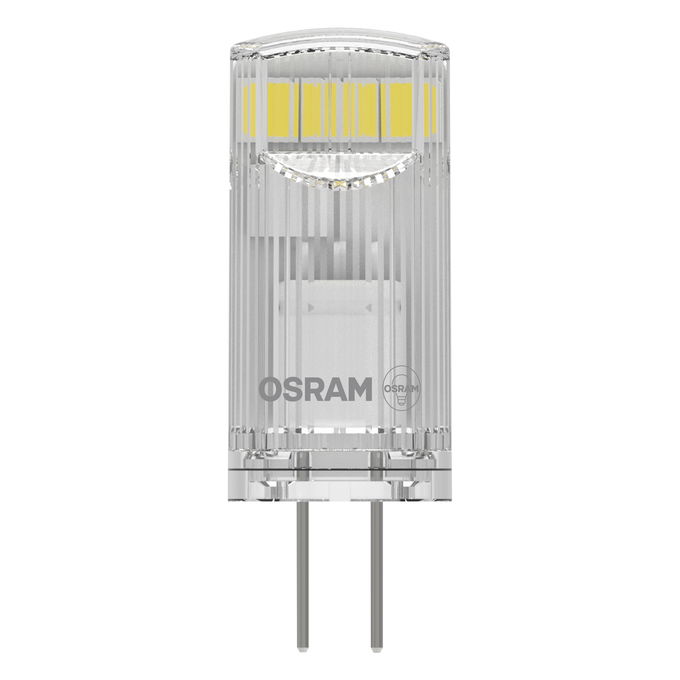

Product image: white background, upright, OSRAM logo – LED PIN20 12V Clear G4 Plastic

Open

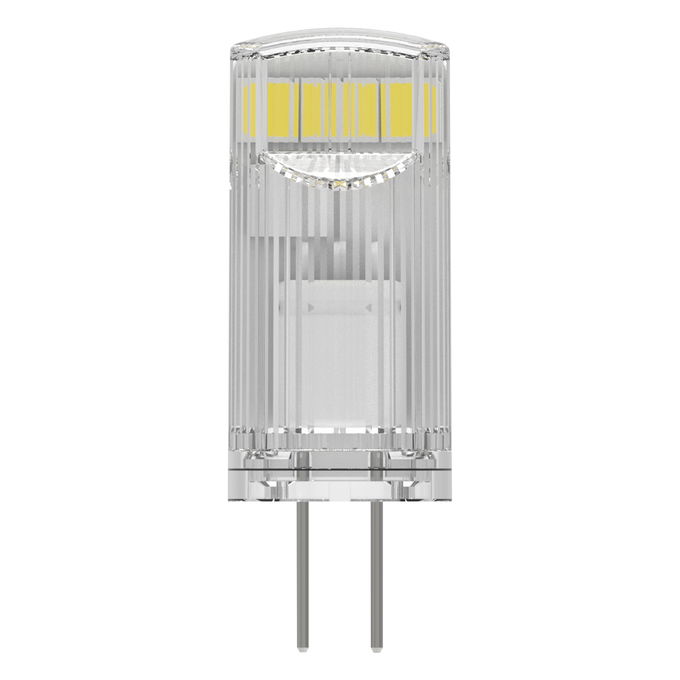

Product image: white background, upright – LED PIN20 12V Clear G4 Plastic

Open

Product line drawing with letters – LED PIN20 12V Clear G4 Plastic

Open

Product line drawing with numbers – LED PIN20 12V Clear G4 Plastic

Open

Product line drawing - technical – LED PIN20 12V Clear G4 Plastic

Open

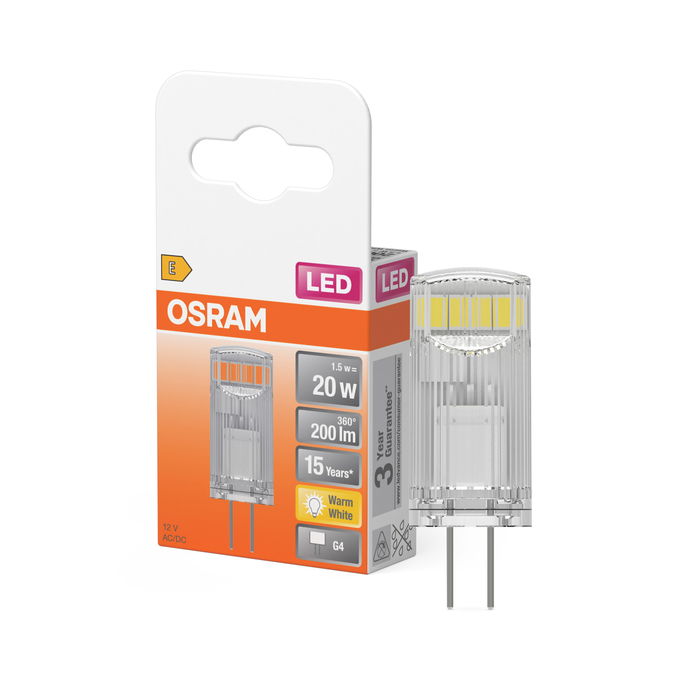

Combo Shot = Product Beauty Shot + Packaging Image – LEDPIN20 CL 1,8W-827 12V G4 FS1 OSRAM

Open

Packaging image, frontal – LED ST PIN 20 1.8W 827 CL G4 MiCh

Open

Packaging image, spacial – LED ST PIN 20 1.8W 827 CL G4 MiCh

Open

Energy Label 2021 UK – EL-4058075431966-AC321 23

Open

Energy Label 2021 UK – EL-4058075431966-AC247 47

Open

Energy Label 2021 UK – EL-4058075431966-AC589 25

Open

Energy Label 2021 UK – EL-4058075431966-AC841 33

Open

Luminous flux	200 lm
Luminous efficacy	133 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Beam angle	320 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	33.00 mm
Diameter	12.00 mm
Maximum diameter	12 mm
Product weight	2.5 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	83.5 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93

Base (standard designation)	G4
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	E 1)
Energy consumption	2.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG1

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	G4
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	33.00 mm
Height	12.00 mm
Width	12.00 mm
Chromaticity coordinate x	0.4578
Chromaticity coordinate y	0.4101
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	>0.5
LED light source replaces a fluorescent light source	No
EPREL ID	1403248,522871,1856545,2365049
Model number	AC32123,AC24747,AC58925,AC58925,AC84133

Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
