OSRAM VINTAGE GLOBE 4W 320LM 2400K E27 IP20 230V

1 / 4

OSRAM VINTAGE GLOBE 4W 320LM 2400K E27 IP20 230V

OSRAM VINTAGE GLOBE 4W 320LM 2400K E27 IP20 230V by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock.

Product benefits

Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lamps with innovative LED "filament" technology

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Lamp made of glass
Lifetime up to 15,000 h
Beam angle: up to 360°
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4099854091179

EAN: 4099854091179

GTIN: 4099854091179

MPN: 4099854091179

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Capabilities

Dimmable

Electrical data

Nominal wattage	4 W
Construction wattage	4.00 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	35 W
Nominal current	32 mA
Type of current	AC
Inrush current	1.5 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	300
Max. lamp number on MCB B16 A	480
Power factor λ	> 0.40

Documents

Documents and certificates

Data sheet

Open

Product Images And Graphics

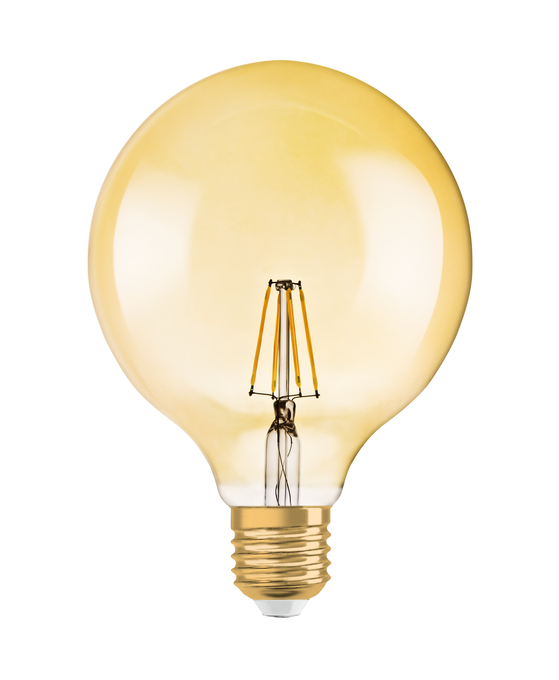

Product image: white background, diagonal – 661492_Vintage 1906 LED Globe

Open

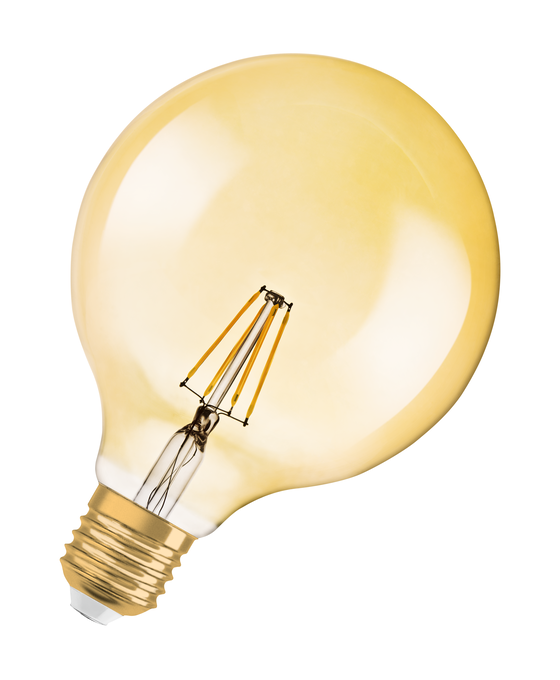

Product image: white background, upright – 661494_Retrofit 1906 Globe125 40 non-dim E27

Open

Product infographic (application image with text and graphic) – Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN

Open

Product infographic (application image with text and graphic) – Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN

Open

Product line drawing with letters – CLG 125 FIL E27 4F ml

Open

Product line drawing with numbers – SMART+ BT CL Globe125 DIM 48 6W/827 E27

Open

Product line drawing, front, no dimensions – CLG 125 FIL E27 4F

Open

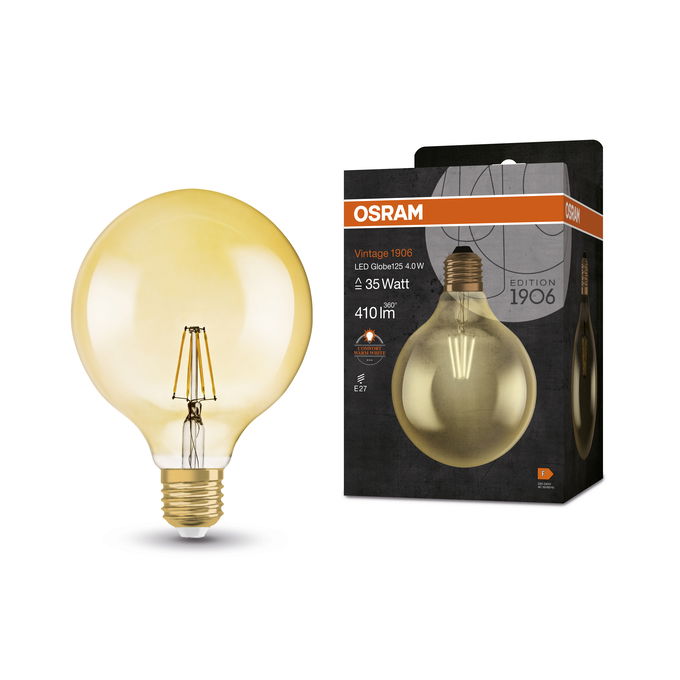

Combo Shot = Product Beauty Shot + Packaging Image – LED V1906 GLOBE 125 4W 824 FIL GOLD E27 MiCh

Open

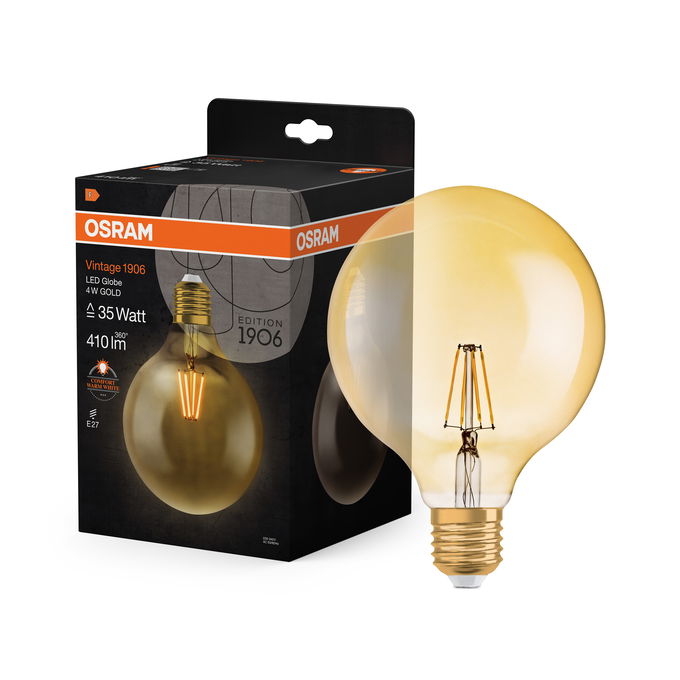

Combo Shot = Product Beauty Shot + Packaging Image – LED V1906 GLOBE 125 4W 824 FIL GOLD E27 MiCh

Open

Packaging image, frontal – LED V1906 GLOBE 125 4W 824 FIL GOLD E27 MiCh

Open

Packaging image, spacial – LED V1906 GLOBE 125 4W 824 FIL GOLD E27 MiCh

Open

Energy Label 2021 UK – EL-4099854091179-AC324 03

Open

Application Images

Luminous flux	410 lm
Nominal useful luminous flux 90°	410 lm
Luminous efficacy	102 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm Comfort Light
Color temperature	2400 K
Color rendering index Ra	80
Light color	824
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4

Overall length	168.00 mm
Diameter	124.00 mm
Maximum diameter	124 mm
Product weight	100.00 g

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear gold
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	4.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC
Photobiological safety group acc. to EN62778	RG0

OSRAM VINTAGE GLOBE 4W 320LM 2400K E27 IP20 230V

Product benefits

Areas of application

Product features

Safety advice

Categories

ETIM group

Specifications

Documents

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	168.00 mm
Height	124.00 mm
Width	124.00 mm
Chromaticity coordinate x	0.494
Chromaticity coordinate y	0,424
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	≥0.4
LED light source replaces a fluorescent light source	No
EPREL ID	523040
Model number	AC32403,AC32403

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
