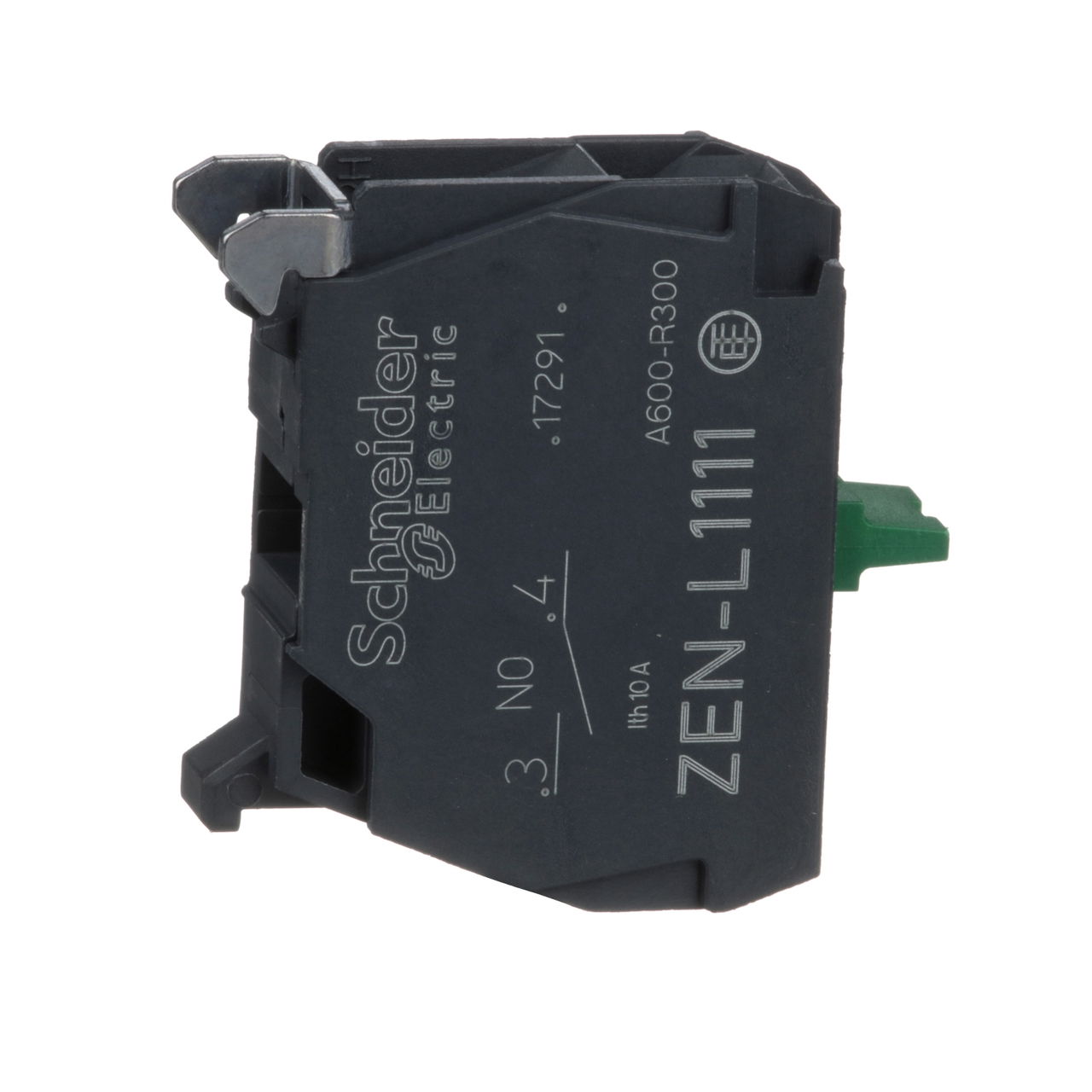

Single contact block for head Ø22 1NO screw clamp terminal

Single contact block for head Ø22 1NO screw clamp terminal – Image 2 of 2

1 / 2

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Single contact block for head Ø22 1NO screw clamp terminal

Name: Single contact block for head Ø22 1NO screw clamp terminal
Brand: Schneider Electric
SKU: ZENL1111
Availability: InStock

Single contact block for head Ø22 1NO screw clamp terminal by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £5.13 to £8.85 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XAL, single contact block uses screw-clamp terminals and has 1 x NO contact. It is compatible with Harmony XB5, 22mm control and signaling units and XAPS control stations. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches and XAPS control station and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. 1 million cycle high endurance allows less maintenance and damage in your installation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Product identifiers

SKU: ZENL1111

EAN: 3389110115079

GTIN: 3389110115079

MPN: ZENL1111

Loyalty points: 1

Price range: £ 5.13 - £ 8.85 Excl. VAT

Specifications

Model	Integrable
Lamp holder	None
Mounting method	Floor fastening
Type of electric connection	Screw connection
Number of fault-signal switches	0
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 230 V	3 A
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

ZENL1111 REACh Regulation

Single contact block for head Ø22 1NO screw clamp terminal
