30MM CONTACT BLOCK 1NO

Link copied
SKU
EAN
GTIN
MPN

30MM CONTACT BLOCK 1NO by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £9.32 to £20.67 excl. VAT. Voltimum+ members earn 2 points per unit.

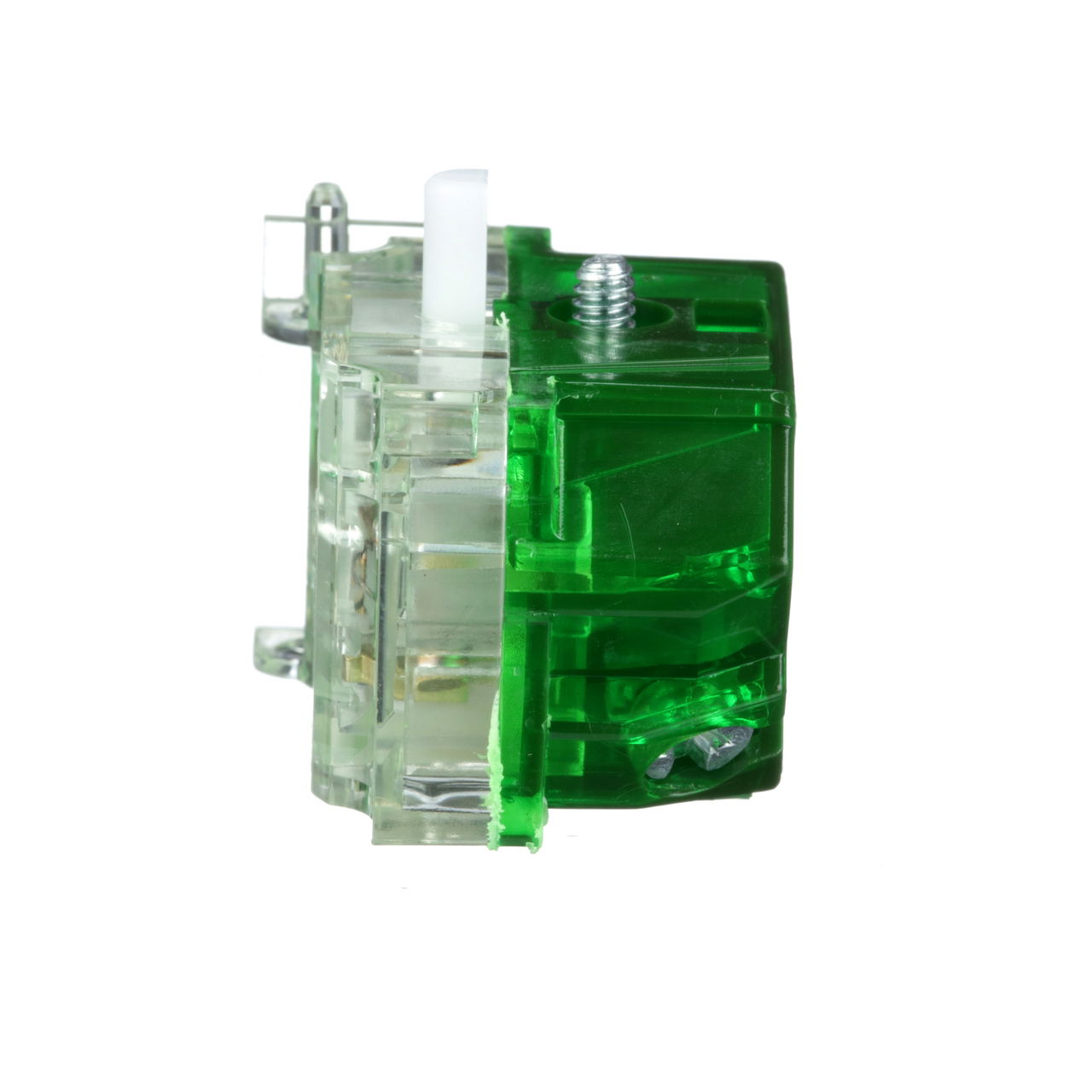

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 9.32 - £ 20.67 Excl. VAT

Specifications

Model Integrable
Lamp holder None
Mounting method Other
Type of electric connection Screw connection
Number of fault-signal switches 0
Number of contacts as change-over contact 0
Rated operation current Ie at AC-15, 230 V 3 A
Number of contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

9001KA2 REACh Regulation

Open

Instruction sheet

Maintenance Mode Switch (MMS) Installation Instructions

Open

Product data sheet

Open

Catalog

Discover the Harmony 9001K and 9001SK Control and signaling units Ø 30 catalog

Open

Declaration of Conformity (Sustainability)

9001KA2 EU RoHS Directive

Open

Declaration of conformity

9001K/KX/SK/SKRU/KA/KM/KMF/KY/SKY/SKYP Control and signaling units

Open

Environmental Disclosure

Harmony 9001 Contact Block, Product Environmental Profile, IA

Open

CAD

9001KA2_CAD_DOC

Open
