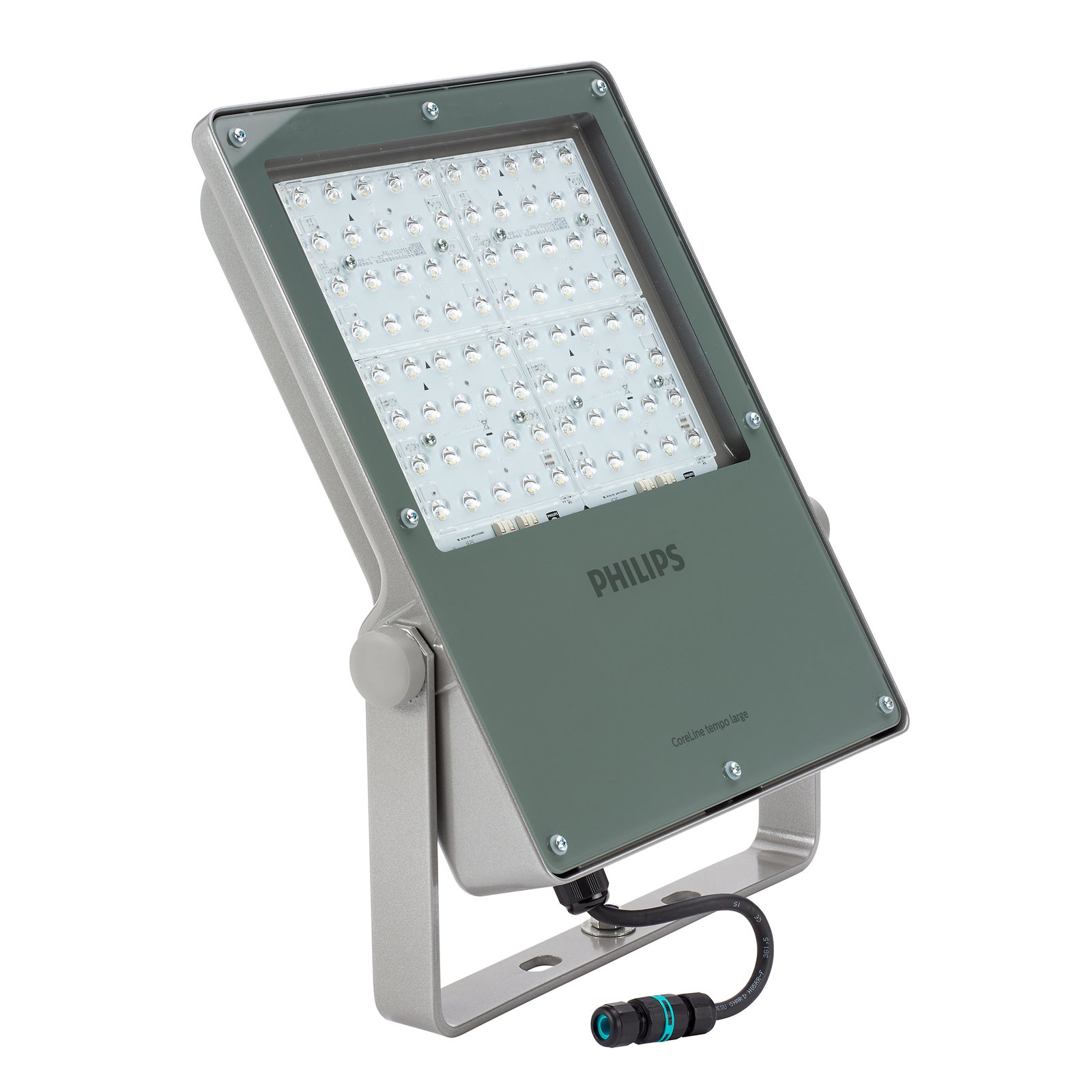

Coreline tempo large, Floodlight, 182 W, 26000 lm, 4000 K, CRI70, Asymmetrical, IP66
Philips

Coreline tempo large, Floodlight, 182 W, 26000 lm, 4000 K, CRI70, Asymmetrical, IP66

Floodlight, Aluminium, Grey, Grey aluminium (RAL9007), Power supply unit (On/Off), 26000 lm, 182 W, 143 lm/W, 4000 K, (0.382, 0.379) SDCM 5, CRI70, Asymmetrical, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, Surge protection level until 6 kV differential mode and 8 kV common mode, Cable 1.0 m with plug Wieland/Adels compatible 3-pole, External connector

Product identifiers

SKU: 912300023660

Price: £ 0.00 Excl. VAT

Categories

Emergency Lighting LED Lighting & Luminaires

Specifications

Cable Cable 1.0 m with plug Wieland/Adels compatible 3-pole
CE mark Yes
Dimmable No
ENEC mark ENEC mark
Connection External connector
Inrush time 0.3 ms
Input Voltage 220 to 240 V
Luminous Flux 26000 lm
Housing Colour Grey
Line Frequency 50 to 60 Hz
Overall height 67.4 mm
Driver included Yes
Warranty period 5 years
Lamp family code LED260-4S | LED module, system flux 26000 lm
Fixation material Aluminium
Power Consumption 182 W
Optical cover type Flat glass
Light source colour 740 neutral white
Protection class IEC Safety class I
Ingress protection code IP66 | Dust penetration-protected, jet-proof
Power Factor (Fraction) 0.99
Light source engine type LED
Optical cover/lens shape Flat
Optical cover/lens finish Clear
Optical cover/lens material Glass
Colour rendering index (CRI) 70
Standard tilt angle post-top 0°
Luminous efficacy (rated) (nom.) 143 lm/W
Surge Protection (Common/Differential) Surge protection level until 6 kV differential mode and 8 kV common mode
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h L90
