LED Superstar Classic P 25 Filament DIM 2.8W 827 Clear E14

Product benefits

Lamps with innovative LED "filament" technology
Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Design, dimensions, luminous flux comparable to an incandescent lamp

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Dimmable (with many common dimmers, see also www.ledvance.com/dim)
Beam angle: up to 300°
Lifetime up to 15,000 h
Lamp made of glass
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075436862

EAN: 4058075436862

GTIN: 4058075436862

MPN: 4058075436862

Price: £ 3.43 Excl. VAT

ETIM Group

Lamps

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Capabilities

Dimmable

Yes 1)

Electrical data

Nominal wattage	2.8 W
Construction wattage	2.80 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	25 W
Nominal current	13 mA
Type of current	AC
Inrush current	0.08 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	200
Max. lamp number on MCB B16 A	350
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

PRODUCT DATASHEET – SSTCLASP252.8W2700KE14 en

Open

Product Images And Graphics

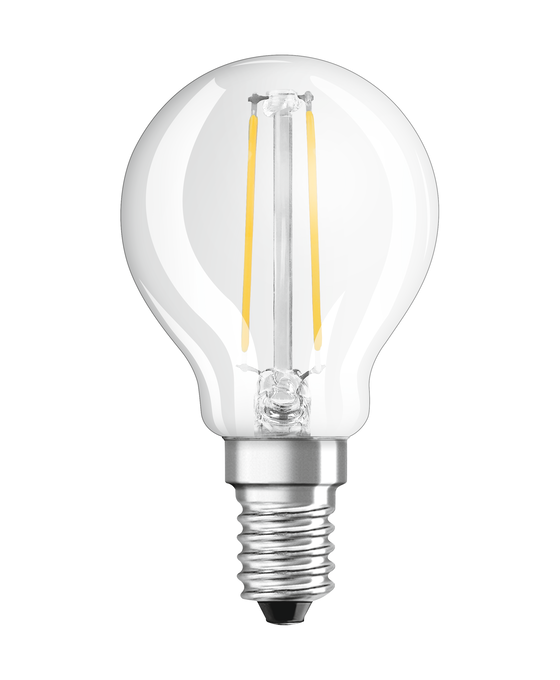

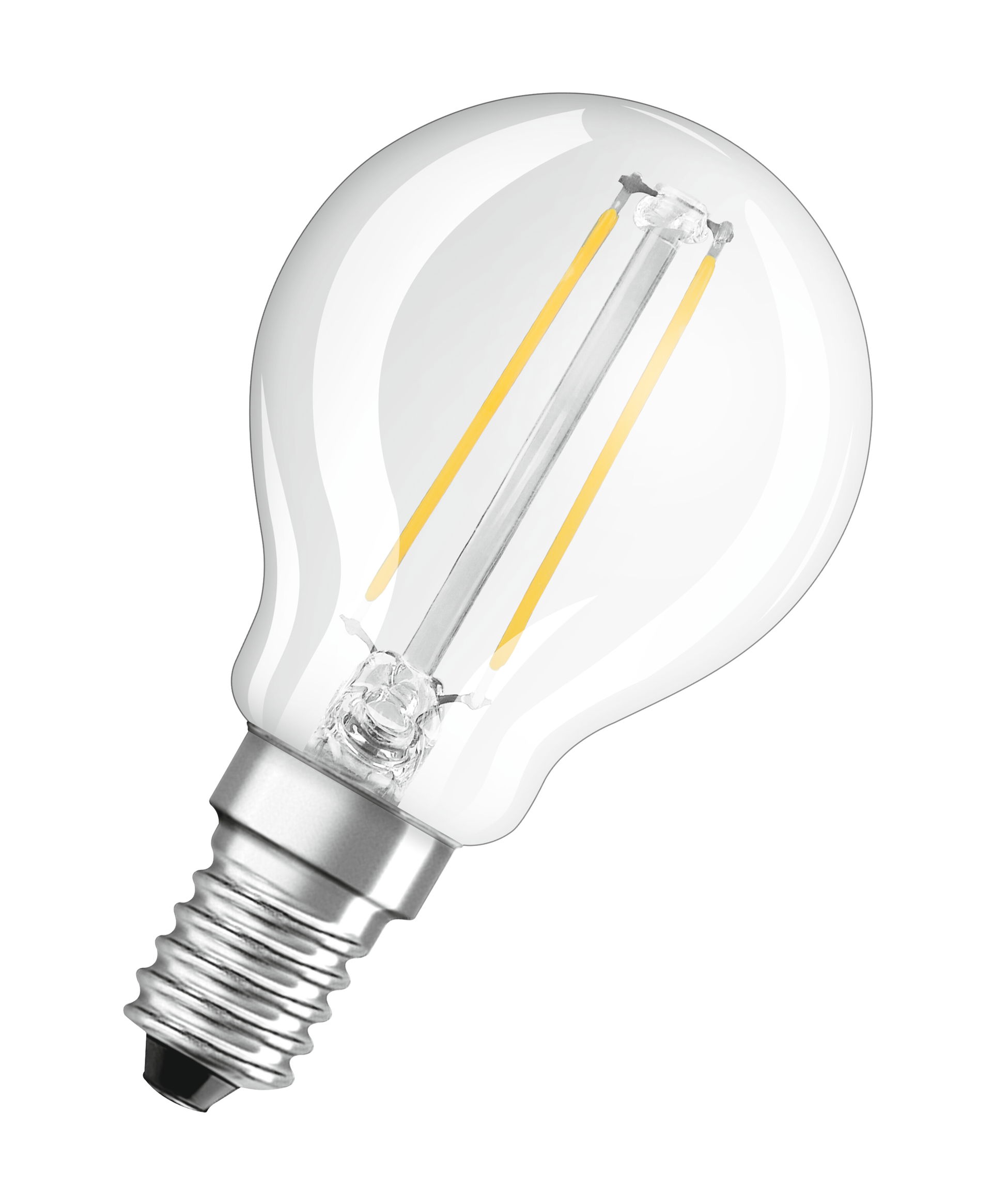

Product image: white background, diagonal – 542080_LED STAR CLASSIC P25 clear WW E14

Open

Product image: white background, upright – 542091_LED STAR CLASSIC P25 clear WW E14

Open

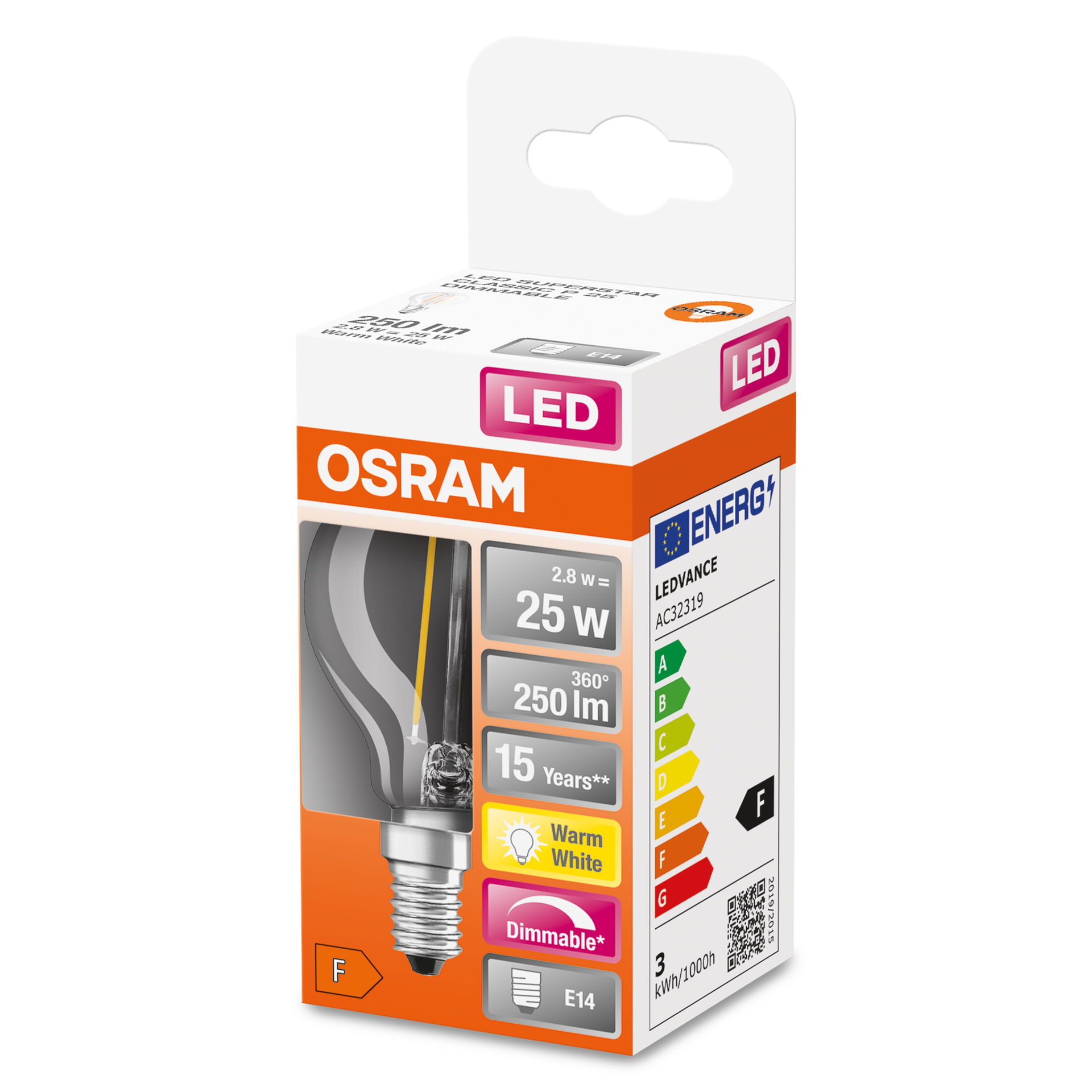

Packaging image, frontal – LED SST CLP 25 DIM 2.8W 827 FIL E14

Open

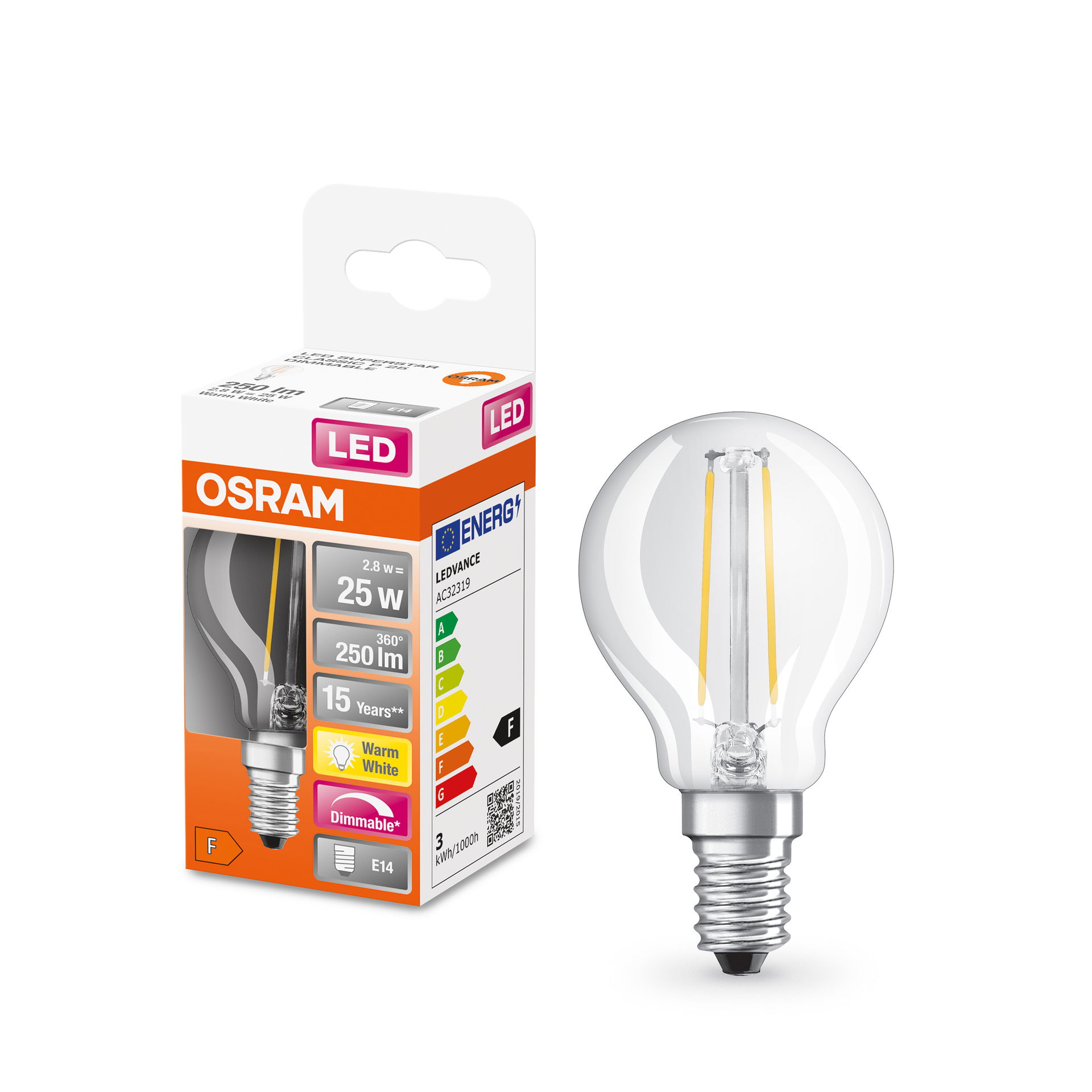

Packaging image, spacial – LED SST CLP 25 DIM 2.8W 827 FIL E14

Open

Energy Label 2021 UK – EL-4058075436862-AC323 19

Open

Energy Label 2021 UK – EL-4058075436862-AC242 61

Open

Luminous flux	250 lm
Nominal useful luminous flux 90°	250 lm
Luminous efficacy	89 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

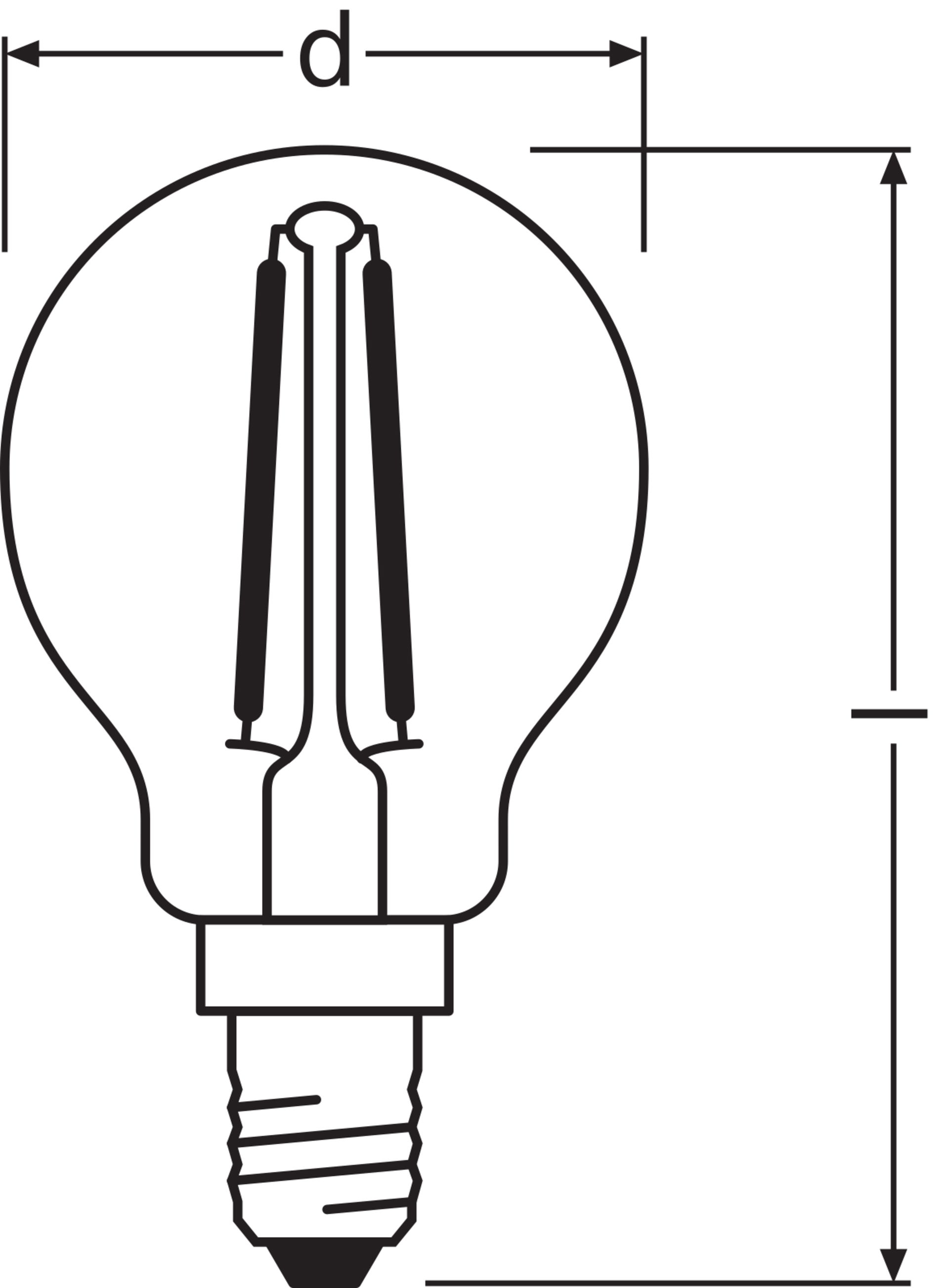

Overall length	78.00 mm
Diameter	45,0 mm
Maximum diameter	45 mm
Product weight	13.00 g

Beam angle	320 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	E14
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	3.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC
Photobiological safety group acc. to EN62778	RG0

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	75 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E14
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0.0
Networked standby power for CLS	0 W
Claim of equivalent power	Yes
Length	78.00 mm
Height	45,0 mm
Width	45,0 mm
Chromaticity coordinate x	0.458
Chromaticity coordinate y	0.410
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0,50
LED light source replaces a fluorescent light source	No
EPREL ID	1403352,523149
Model number	AC32319,AC24261

Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
