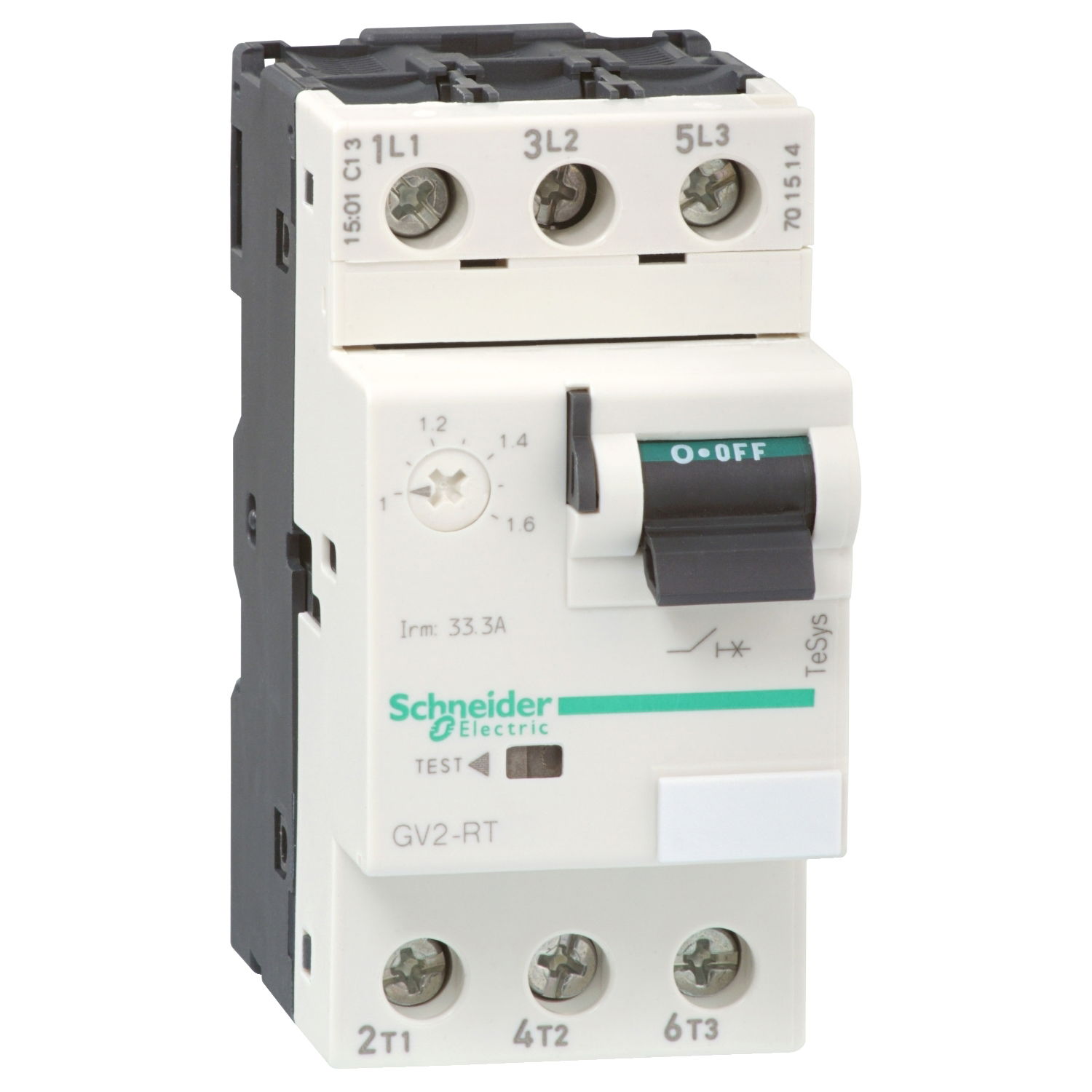

Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals
1 / 2
Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals
Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and Farnell. It is currently in stock at 1 of them. Trade prices range from £77.78 to £126.69 excl. VAT. Voltimum+ members earn 16 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for high starting current peak motor applications 1.1-1.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2RT08
EAN: 3389110520644
GTIN: 3389110520644
MPN: GV2RT08
Loyalty points:
16
Price range: £ 77.78 - £ 126.69 Excl. VAT
ETIM group
Specifications
| Depth | 78.5 mm |
| Width | 45 mm |
| Height | 89 mm |
| Power loss | 2.5 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | yes |
