HALOSTAR OVEN 20 W 12 V G4
1 / 5
HALOSTAR OVEN 20 W 12 V G4
- SKU
- EAN
- GTIN
- MPN
Product benefits
- Two to three times the luminous efficiency of conventional oven lighting
- Optimum halogen content for high temperatures
- Tempered pins for reliable contact at high temperatures
- Suitable for pyrolysis (permissible ambient temperature 450 °C)
- Contains no mercury
Areas of application
- Baking ovens
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Categories
Specifications
Electrical data
| Nominal wattage | 20 W |
| Construction wattage | 20.00 W |
| Nominal voltage | 12 V |
| Operating mode | 12V AC/DC |
| Nominal current | 1660 mA |
| Type of current | AC/DC |
| Power factor λ | 1.00 |
Photometrical data
| Luminous flux | 300 lm |
Documents
Documents and certificates
Data sheet
Documents And Certificates
Declarations of conformity UKCA – HALOGEN HALOSTAR OVEN 12V G4
Product Images And Graphics

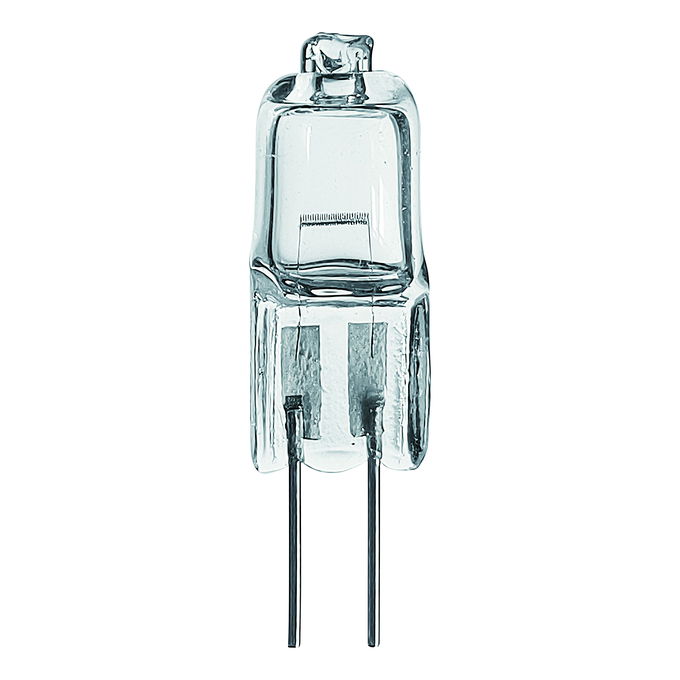

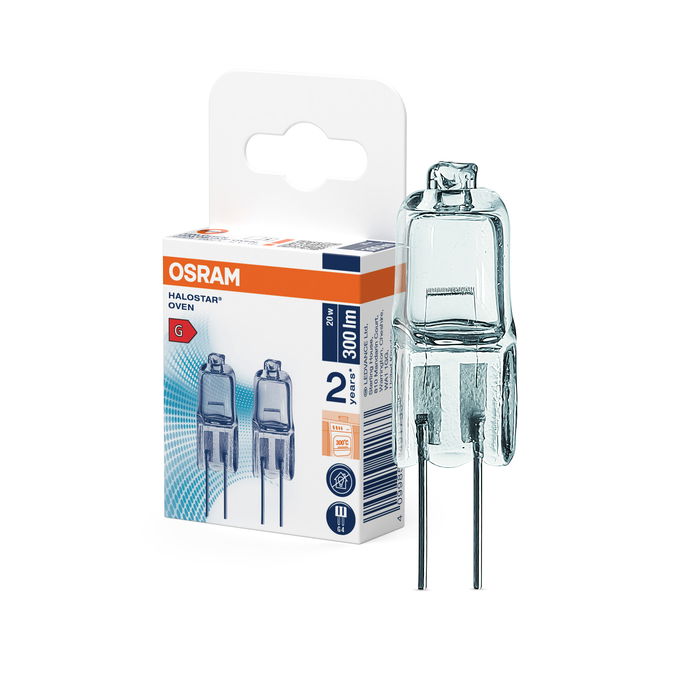

Product image: white background, diagonal with OSRAM logo – HALOGEN HALOSTAR OVEN 12V G4

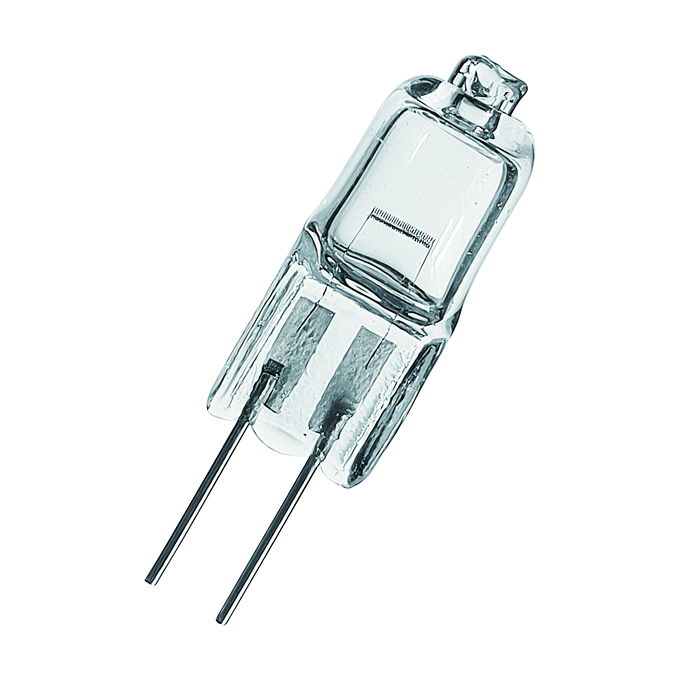

Product image: white background, diagonal – HALOGEN HALOSTAR OVEN 12V G4
Product image: white background, upright, OSRAM logo – HALOGEN HALOSTAR OVEN 12V G4
Product image: white background, upright – HALOGEN HALOSTAR OVEN 12V G4
Product line drawing with letters – HALOGEN HALOSTAR OVEN 12V G4
Product line drawing with numbers – HALOGEN HALOSTAR OVEN 12V G4
