Schneider Electric

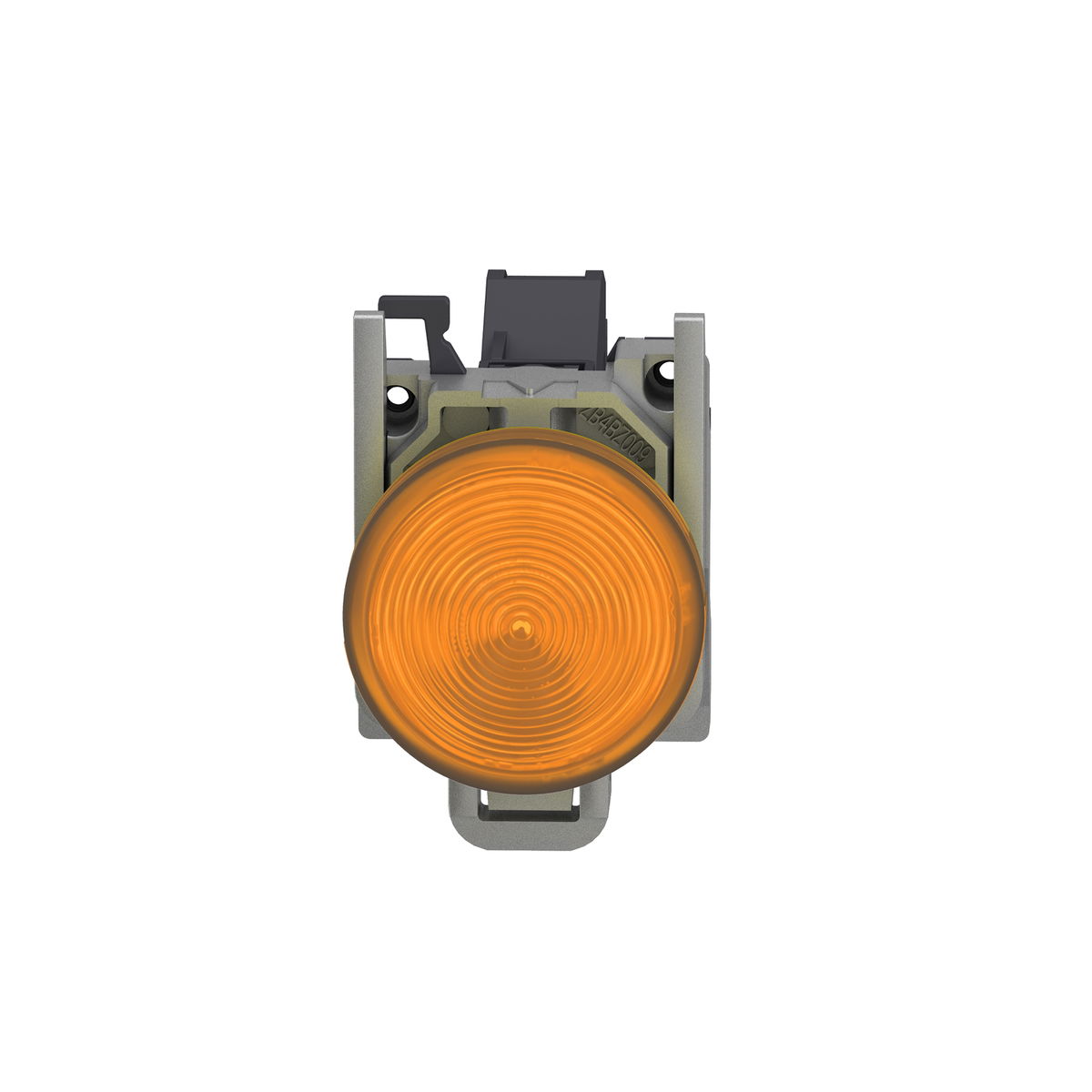

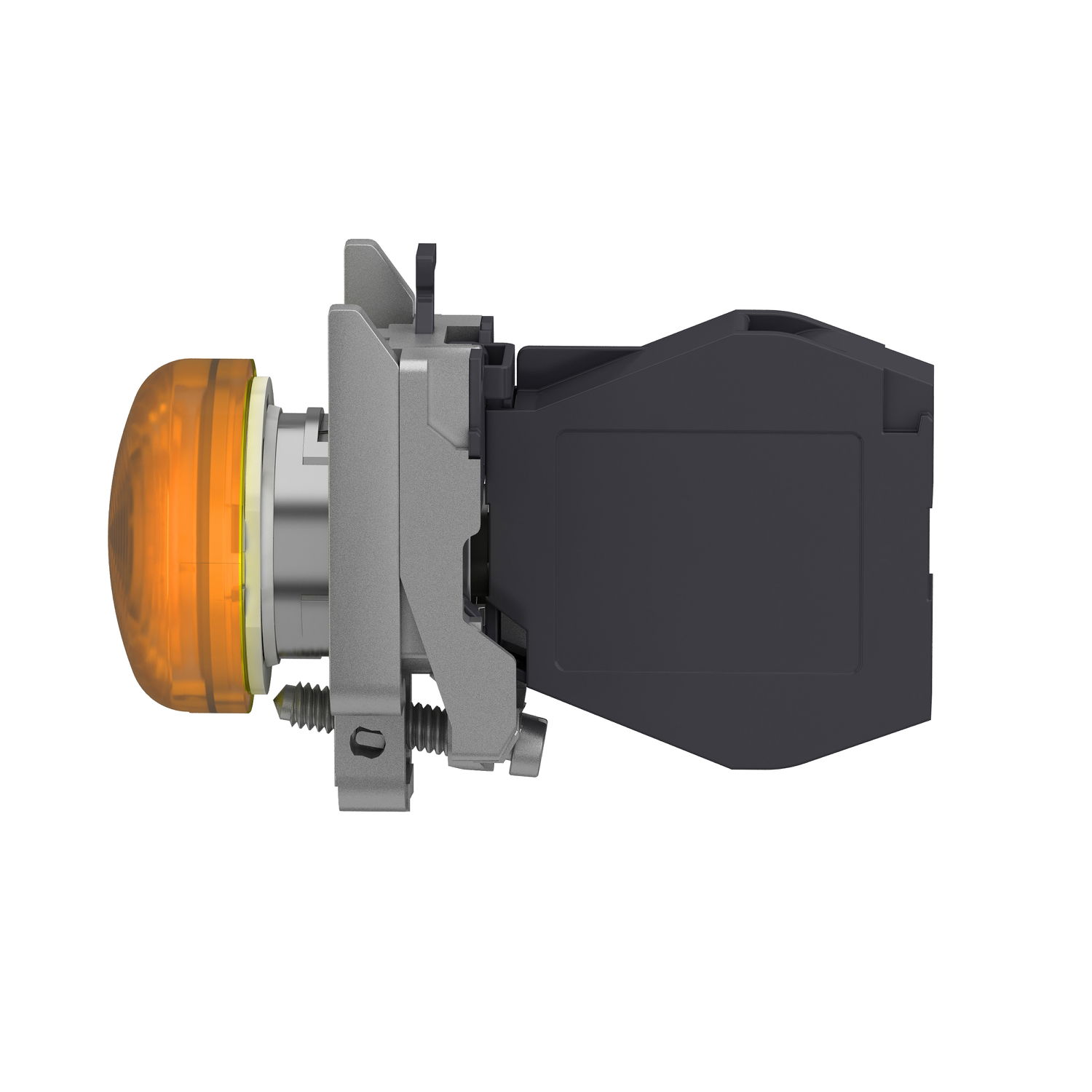

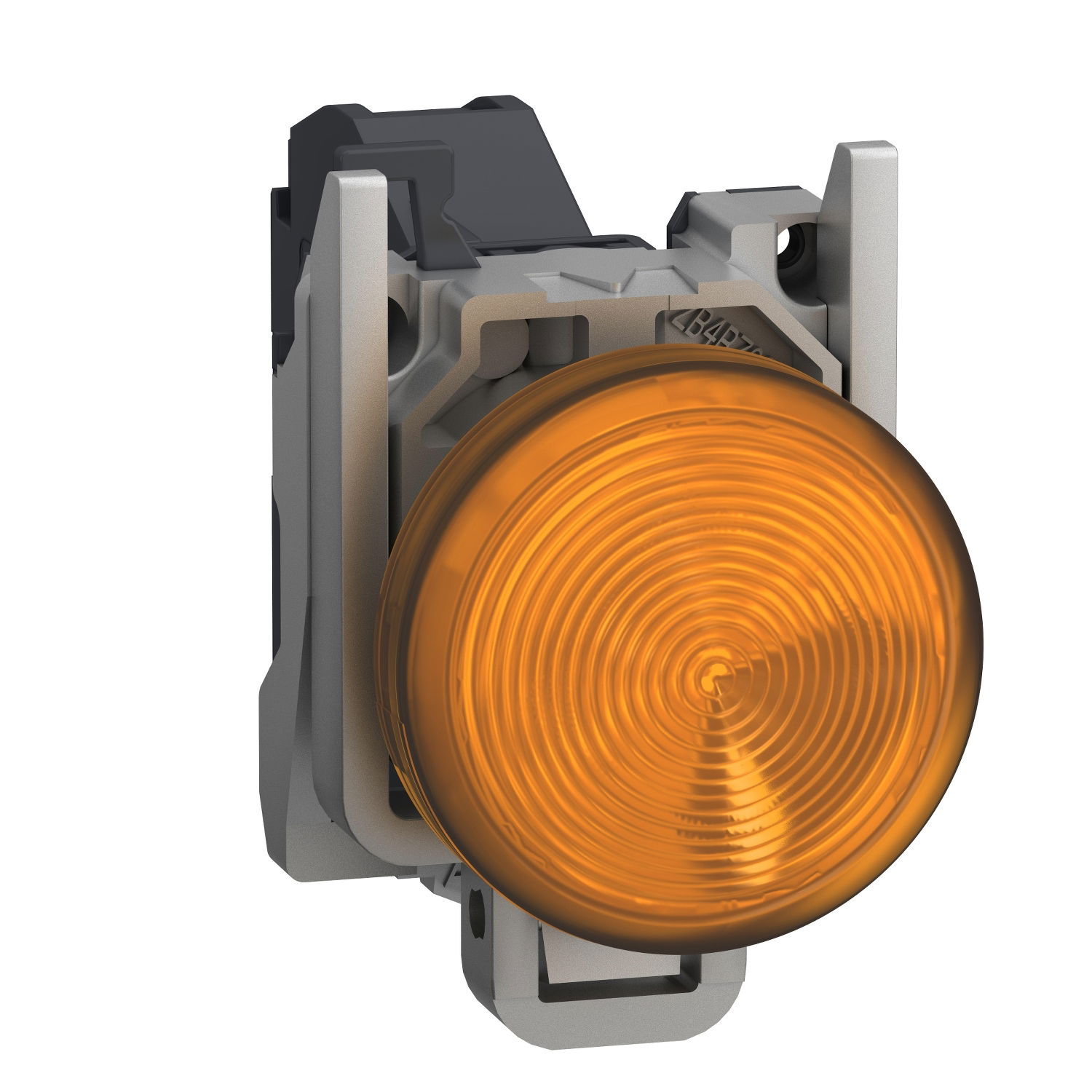

Complete pilot light, Harmony XB4, Explosive atmosphere, orange LED 24 240 V

Link copied
SKU
EAN
GTIN
MPN

Complete pilot light, Harmony XB4, Explosive atmosphere, orange LED 24 240 V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £188.70 excl. VAT. Voltimum+ members earn 18 points per unit.

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral yellow LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Voltimum+ Loyalty Programme Loyalty points: 18

Price: £ 188.70 Excl. VAT

Categories

LED Lighting LED Lighting & Luminaires LED Bulbs & Lamps

ETIM group

Low-voltage industrial components

Specifications

Colour lens Orange
Type of lens Flat
Voltage type AC/DC
Hole diameter 22.5 mm
Width opening -
Height opening -
With front ring yes
Colour front ring Black
Material front ring Metal
Construction type lens Round
Number of indicator lights 1
Degree of protection (NEMA) 13

Documents

Declaration of Conformity (Sustainability)

XB4BVBM5GEX REACh Regulation

Open

Product data sheet

Open

Catalog

Catalog of Harmony XB4 metal explosive atmosphere offer - English 07-2020

Open

Declaration of Conformity (Sustainability)

XB4BVBM5GEX EU RoHS Directive

Open

Declaration of conformity

XB4B...GEX, XB4...EX UK Control and Signaling Units for Explosive AtmosphereDeclaration of Conformity

Open

Environmental Disclosure

XB4 Pilot Light, Product Environmental Profile, IA

Open

Circularity Profile

XB4 Pilot Light, End Of Life Instructions, IA

Open
