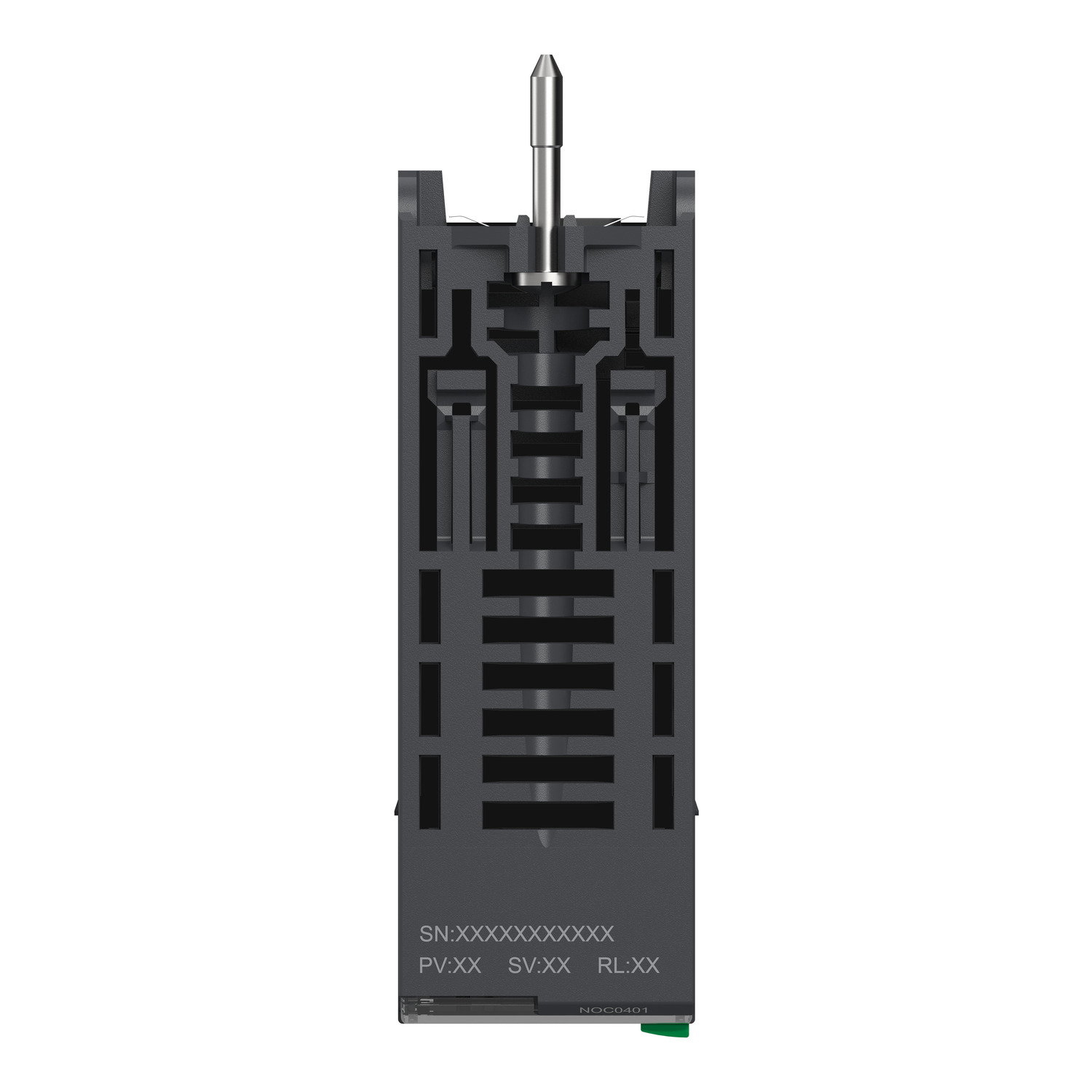

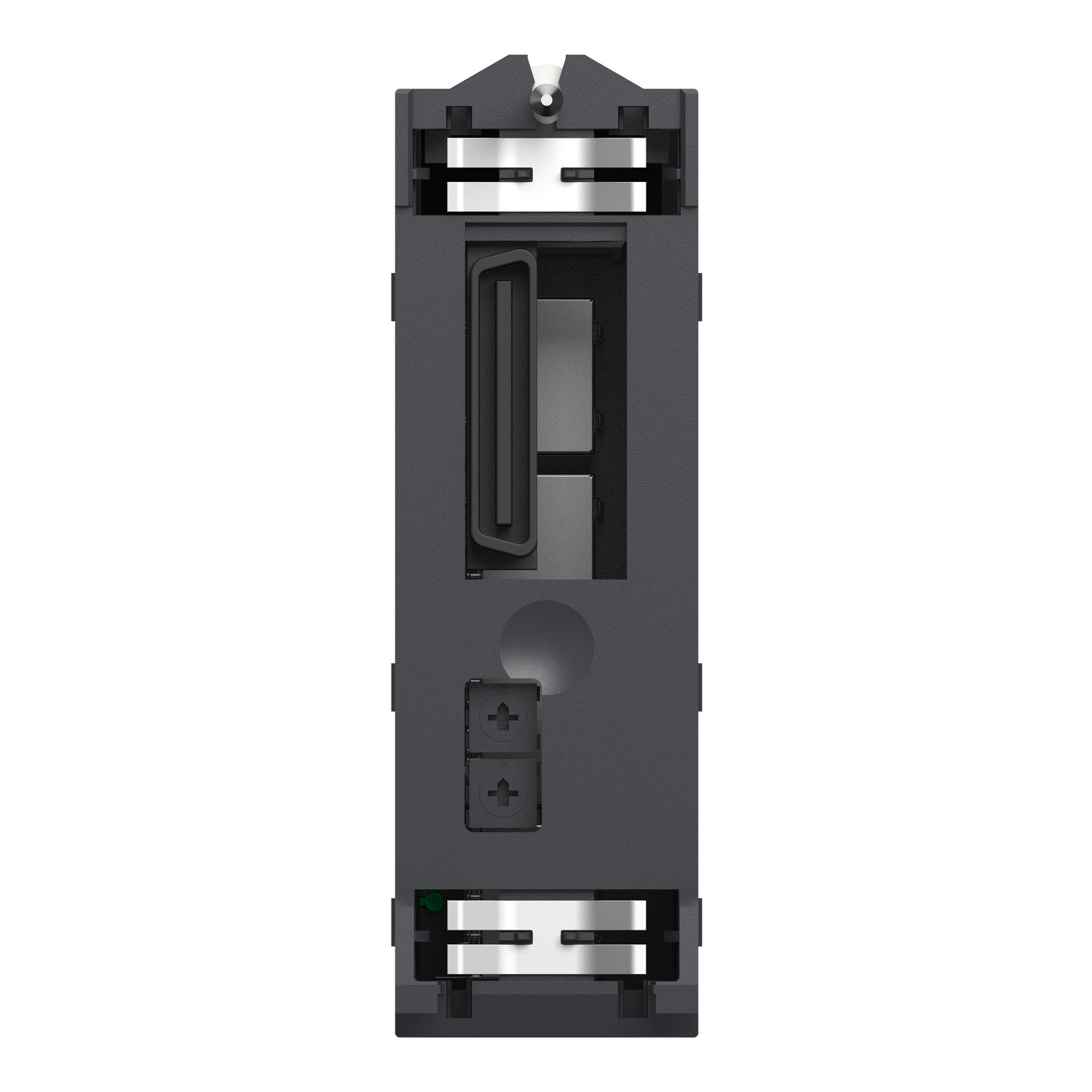

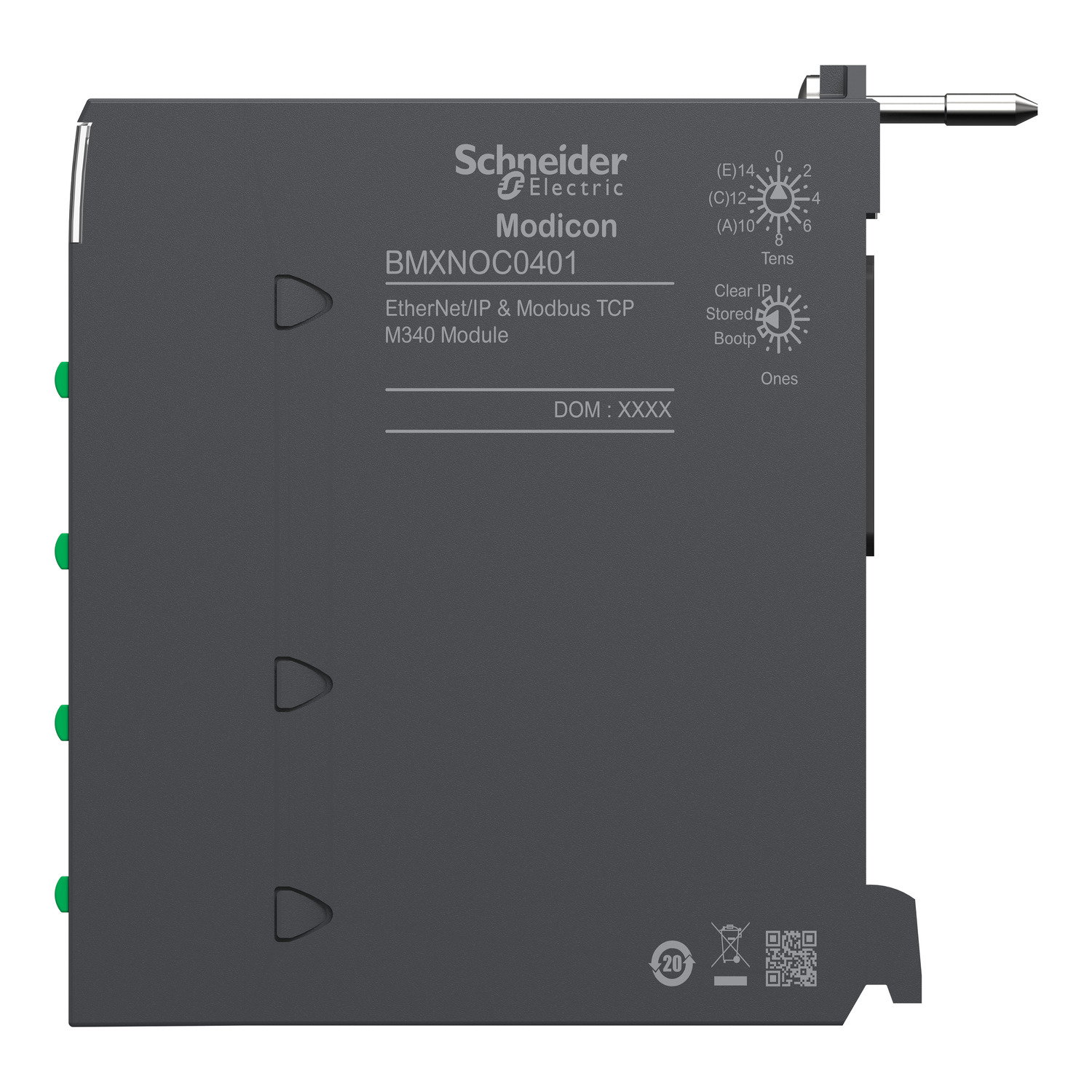

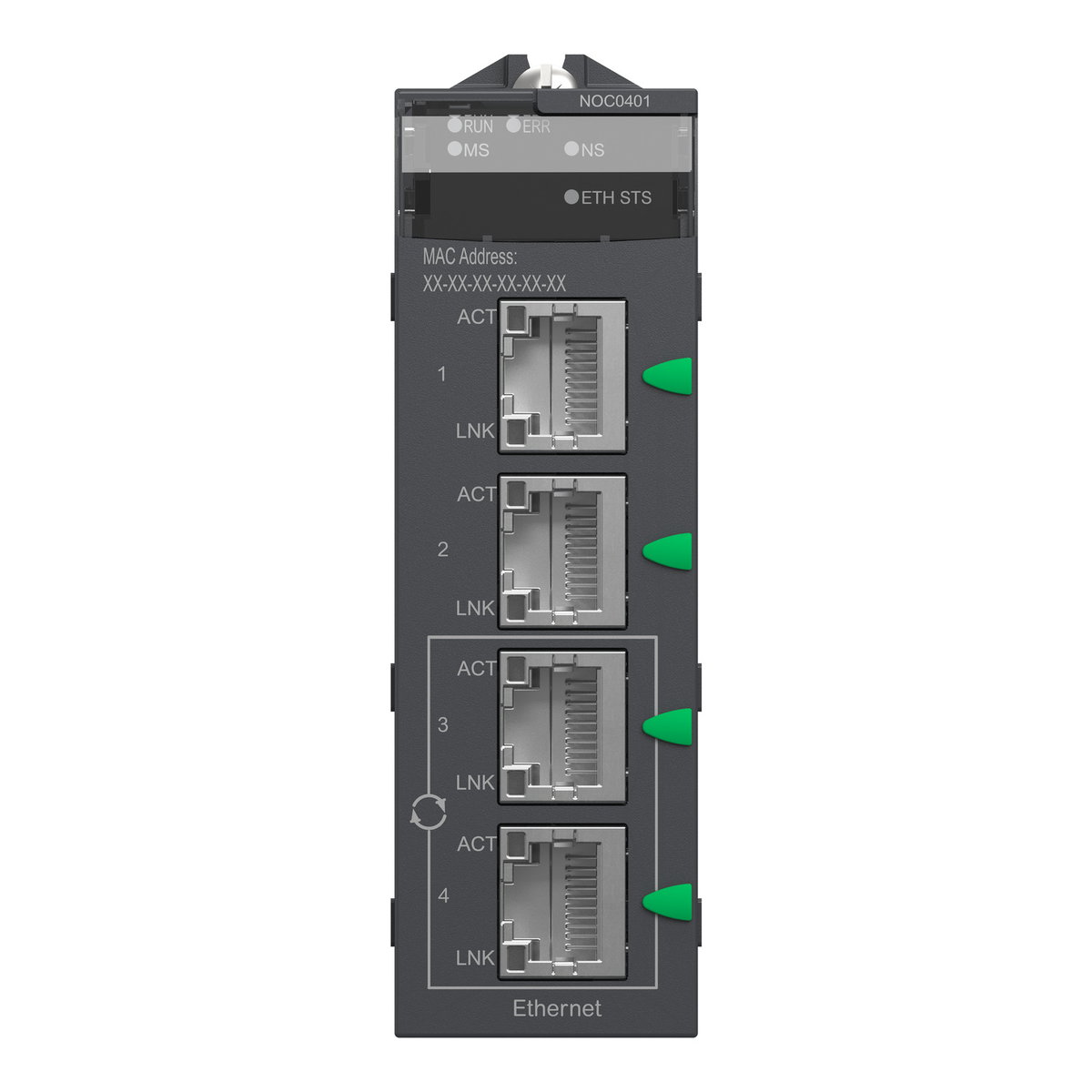

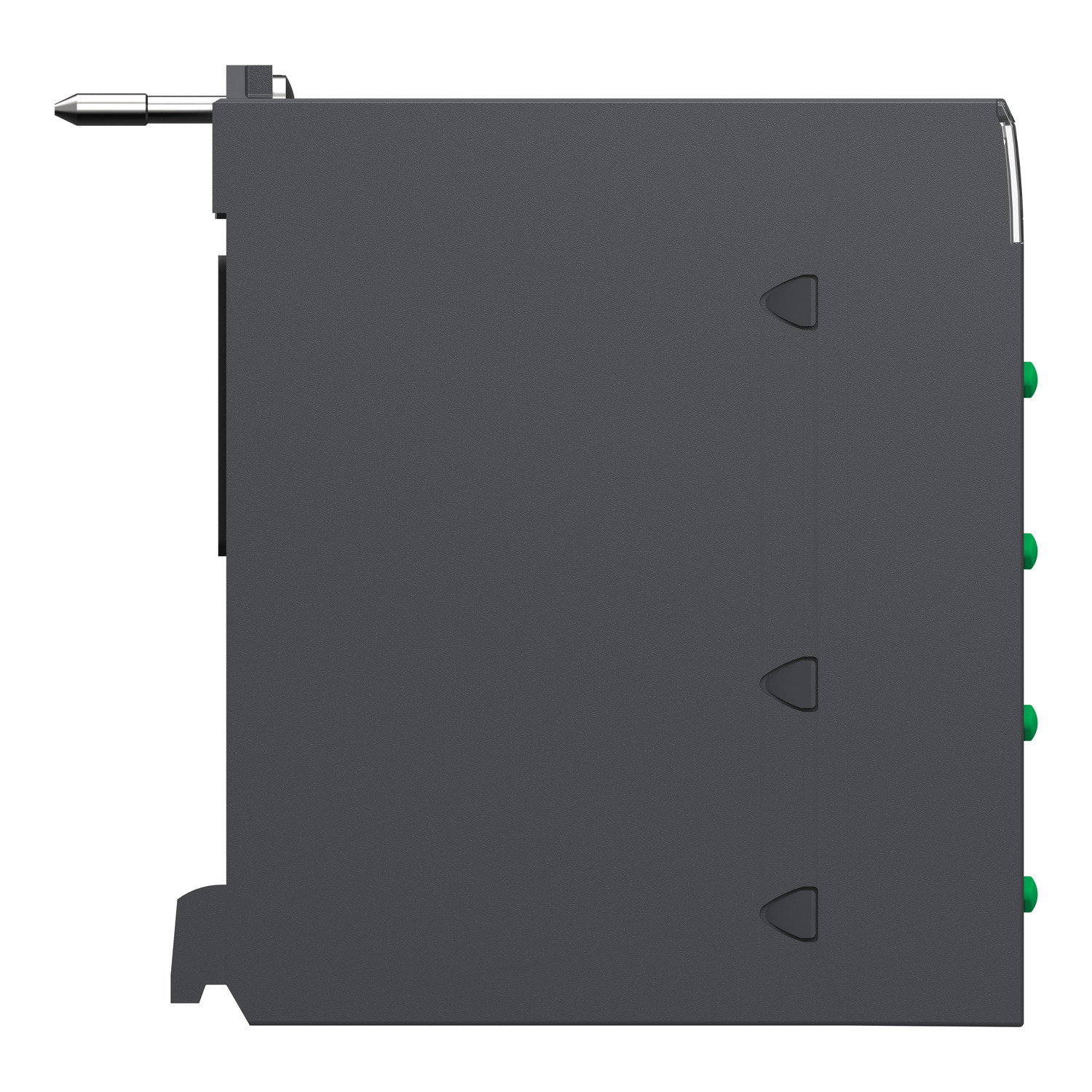

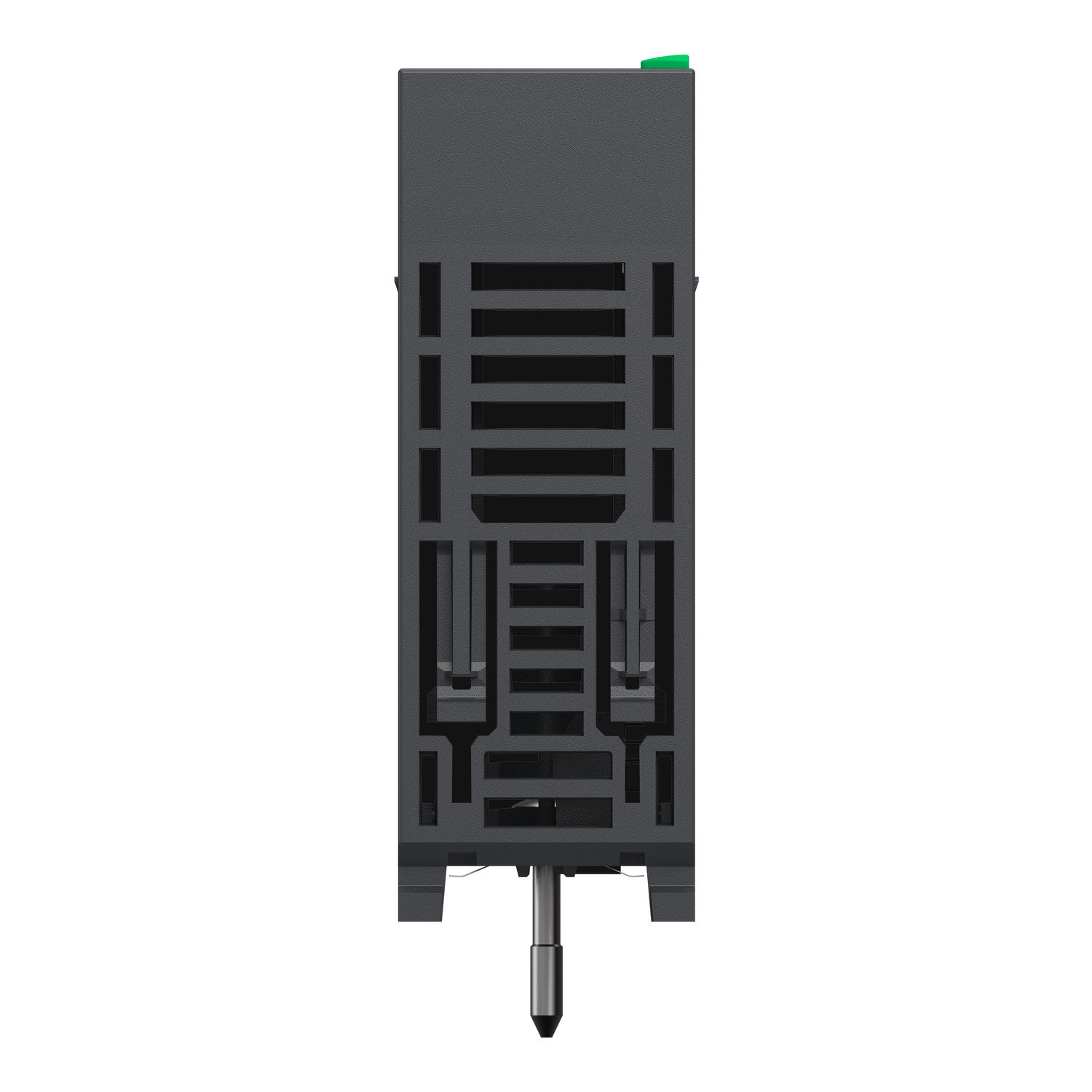

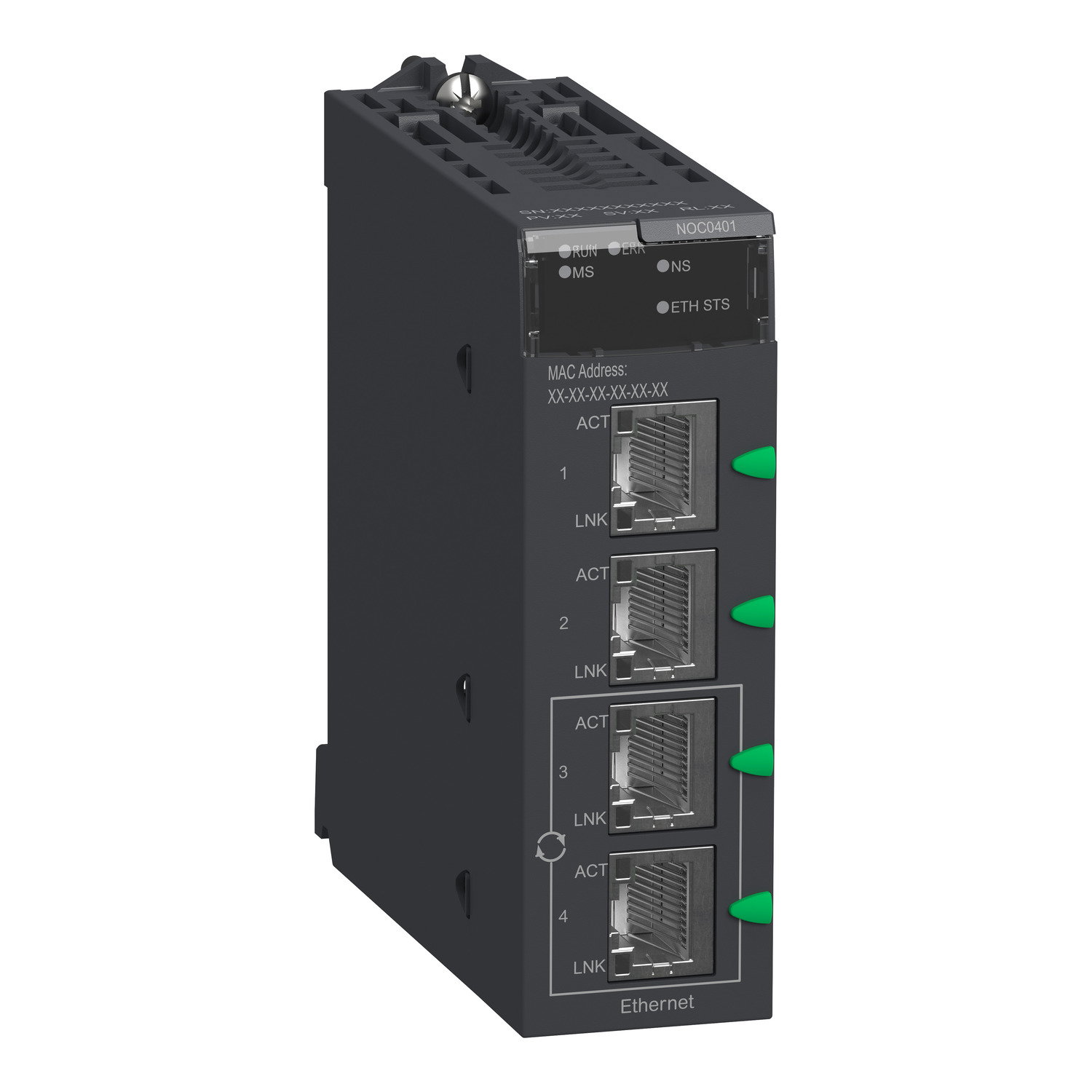

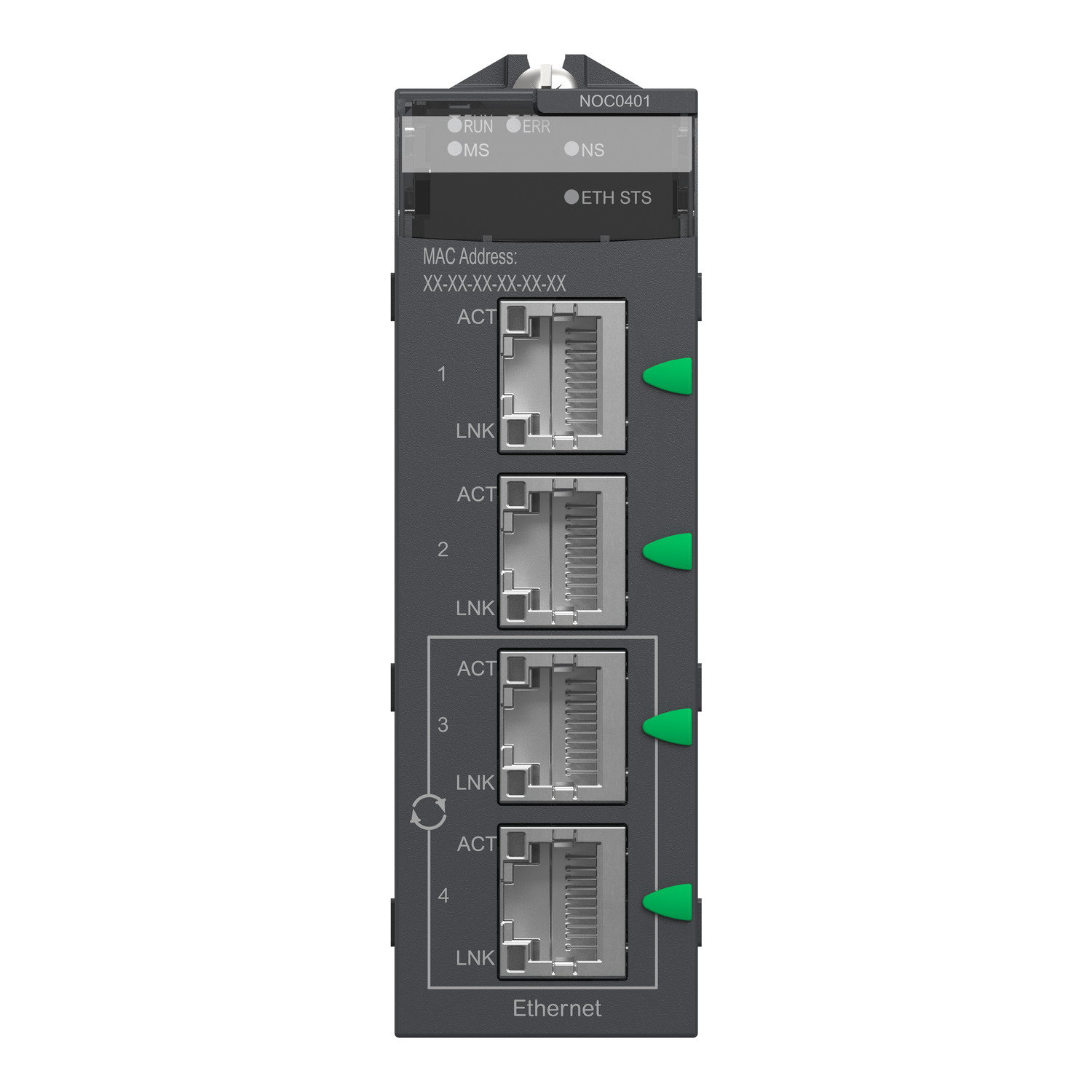

Ethernet module M340 - 4 x RJ45 10/100

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
