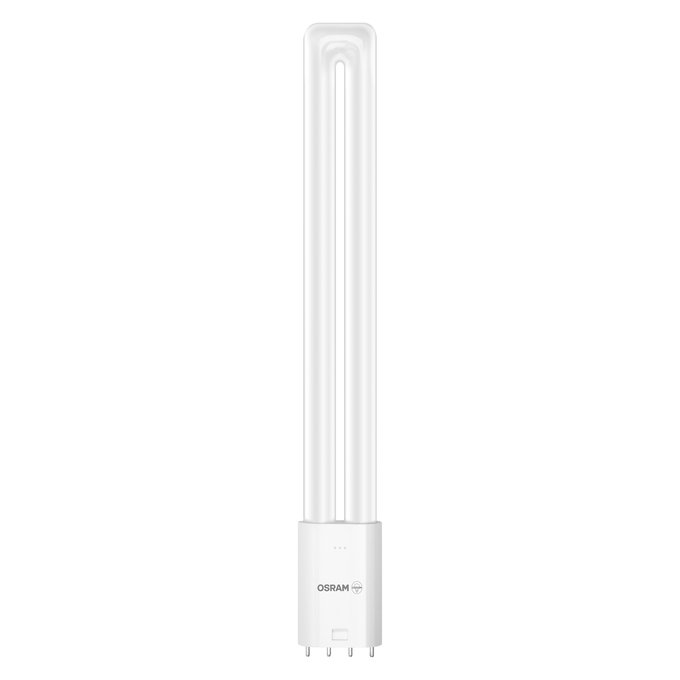

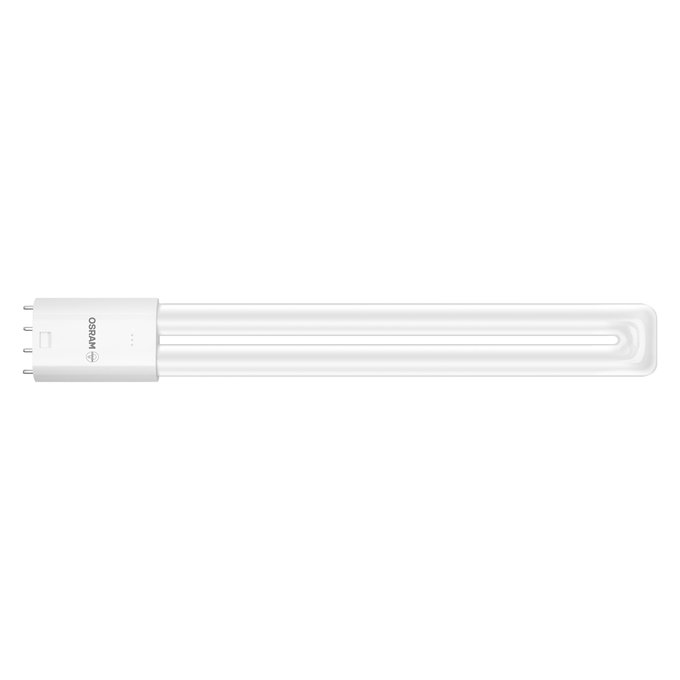

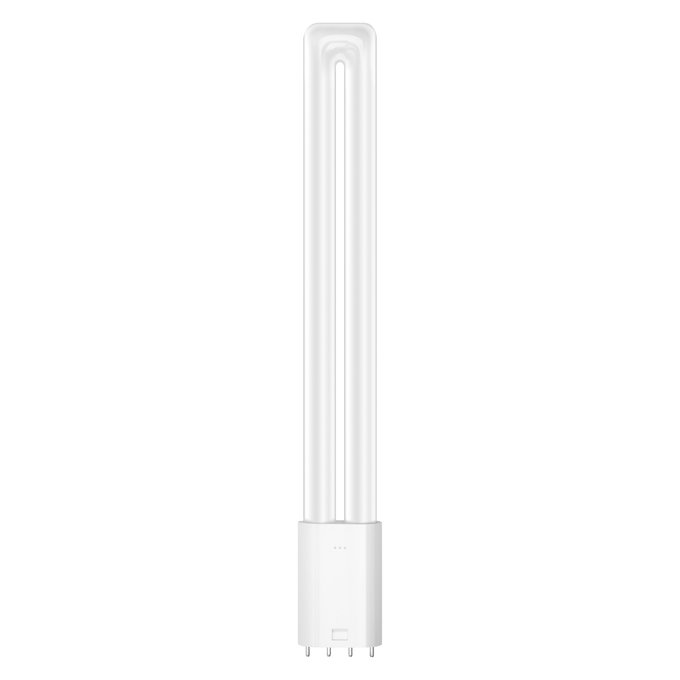

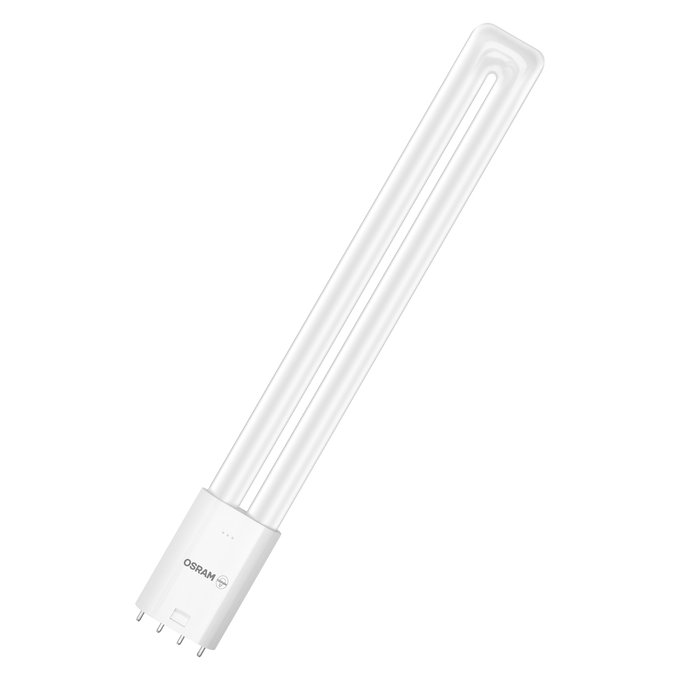

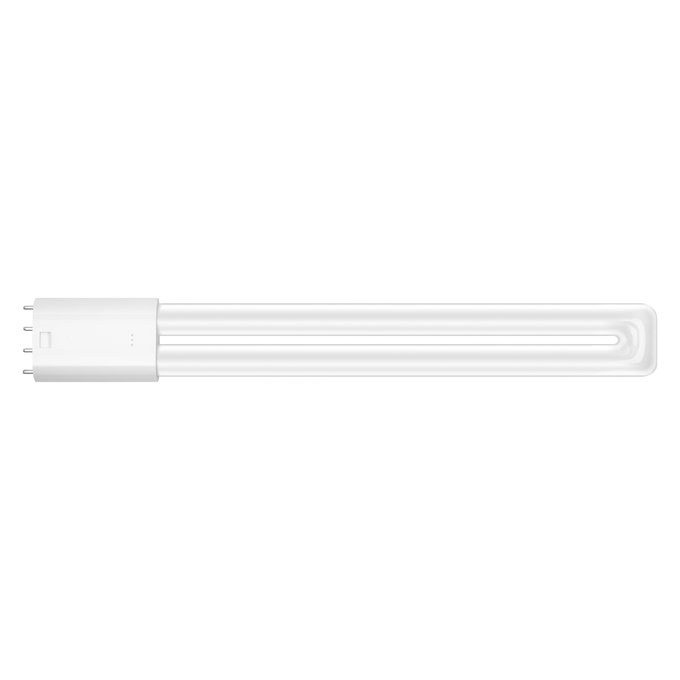

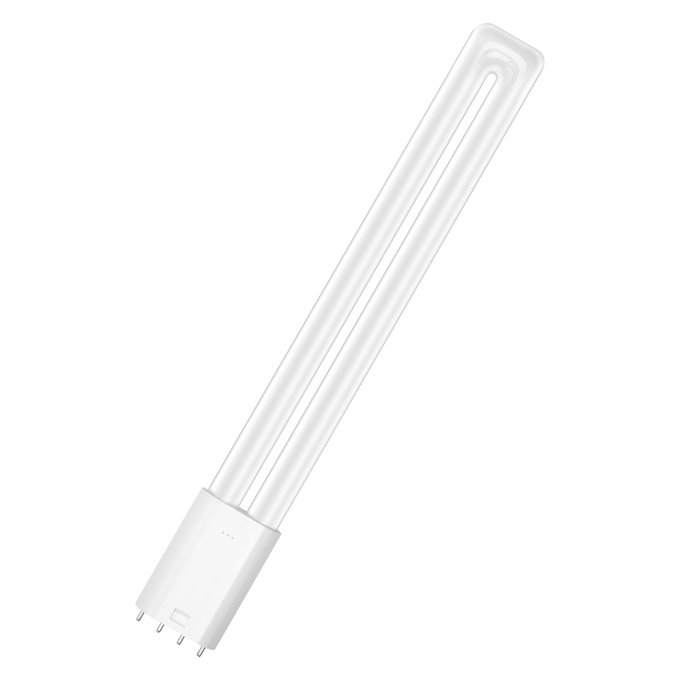

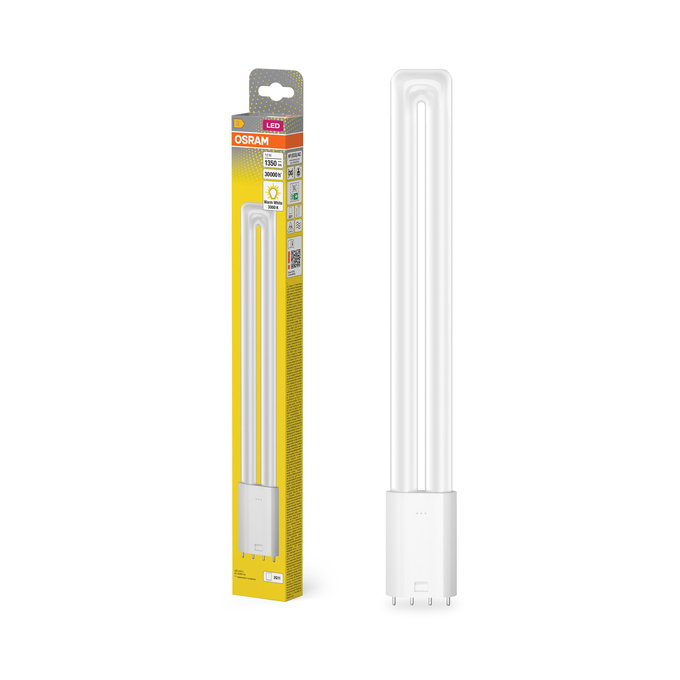

DULUX LED L24 HF & AC MAINS 12W 830 2G11
1 / 7
DULUX LED L24 HF & AC MAINS 12W 830 2G11
DULUX LED L24 HF & AC MAINS 12W 830 2G11 by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £21.01 excl. VAT.
Product benefits
- Easy installation
- Not suitable for operation with conventional control gear
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Shops
- Hotels, restaurants
- Industry
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in 2G11 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Product identifiers
SKU: 4058075559219
EAN: 4058075559219
GTIN: 4058075559219
MPN: 4058075559219
Price: £ 21.01 Excl. VAT
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 200000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Capabilities
| Dimmable | No |
Electrical data
| Nominal wattage | 12 W |
| Construction wattage | 12.00 W |
| Nominal voltage | 220…240 V |
