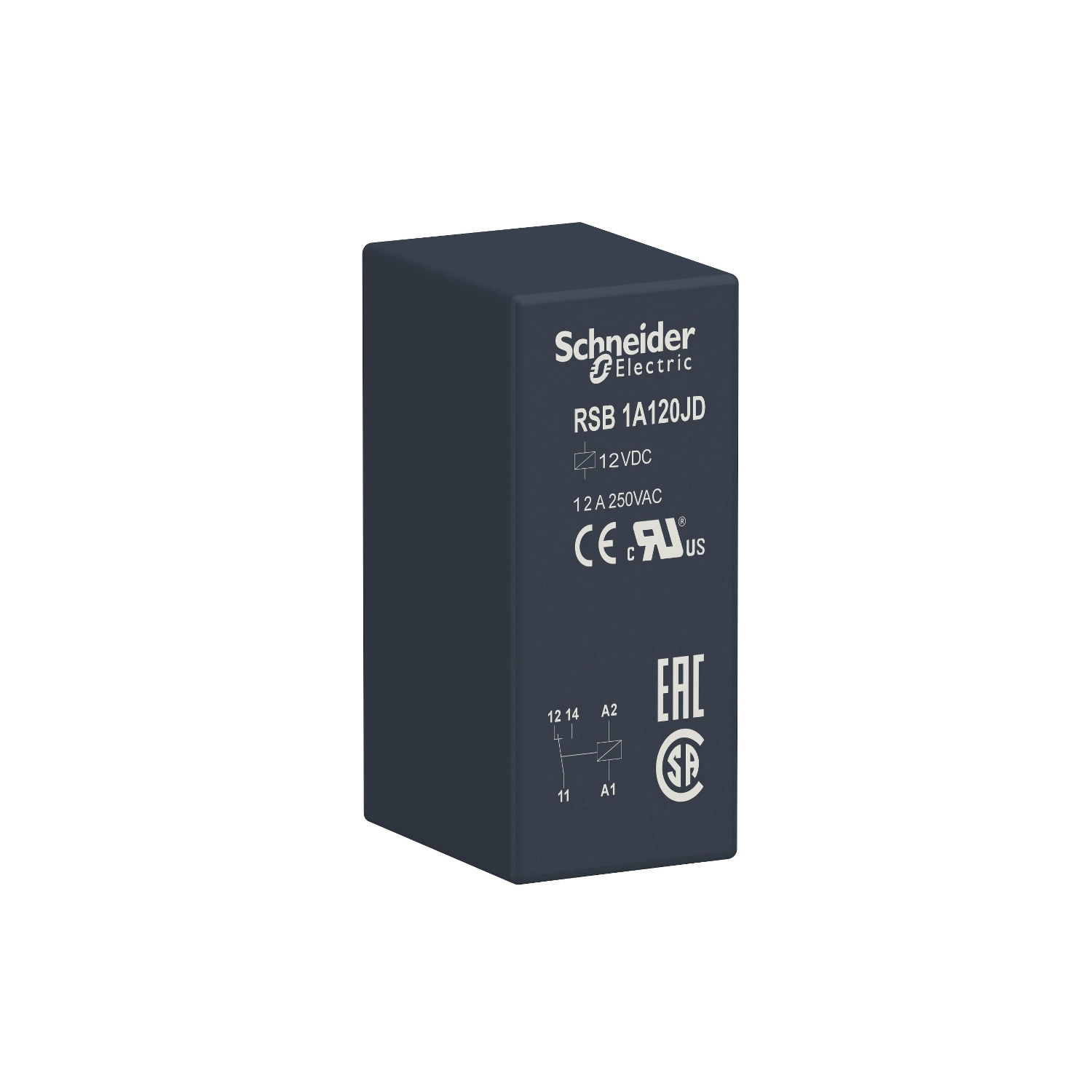

Interface plug-in relay, 12 A, 1 CO, 12 V DC

Interface plug-in relay, 12 A, 1 CO, 12 V DC – Image 2 of 8

Interface plug-in relay, 12 A, 1 CO, 12 V DC – Image 3 of 8

Interface plug-in relay, 12 A, 1 CO, 12 V DC – Image 4 of 8

Interface plug-in relay, 12 A, 1 CO, 12 V DC – Image 5 of 8

Interface plug-in relay, 12 A, 1 CO, 12 V DC – Image 6 of 8

1 / 8

Interface plug-in relay, 12 A, 1 CO, 12 V DC

Name: Interface plug-in relay, 12 A, 1 CO, 12 V DC
Brand: Schneider Electric
SKU: RSB1A120JD
Availability: InStock

Interface plug-in relay, 12 A, 1 CO, 12 V DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Farnell, RS Components, Rexel Group and 2 more. It is currently in stock at 4 of them. Trade prices range from £3.04 to £5.31 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony RSB interfacing plug-in relay has a control coil voltage of 12V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RSB1A120JD

EAN: 3389110254112

GTIN: 3389110254112

MPN: RSB1A120JD

Loyalty points: 1

Price range: £ 3.04 - £ 5.31 Excl. VAT

Specifications

Depth	15.7 mm
Width	12.5 mm
Height	29 mm
Nominal current	12 A
Material contact	Other
Drive, polarization	Polarity free
With LED indication	no
Complete with socket	no
Operating voltage DC
Max. starting current	-
Type of switch contact	Other
With detachable clamps	no
Degree of protection (IP)	IP20
Drive, switching attitude	Mono stable
Material of contact insert	Other
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	Other
Type of electric connection	Other
With forced-guided contacts	no
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	RT I
