Interface plug-in relay, 12 A, 1 CO, 24 V DC

Link copied
SKU
EAN
GTIN
MPN

Interface plug-in relay, 12 A, 1 CO, 24 V DC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £3.07 to £4.93 excl. VAT. Voltimum+ members earn 1 point per unit.

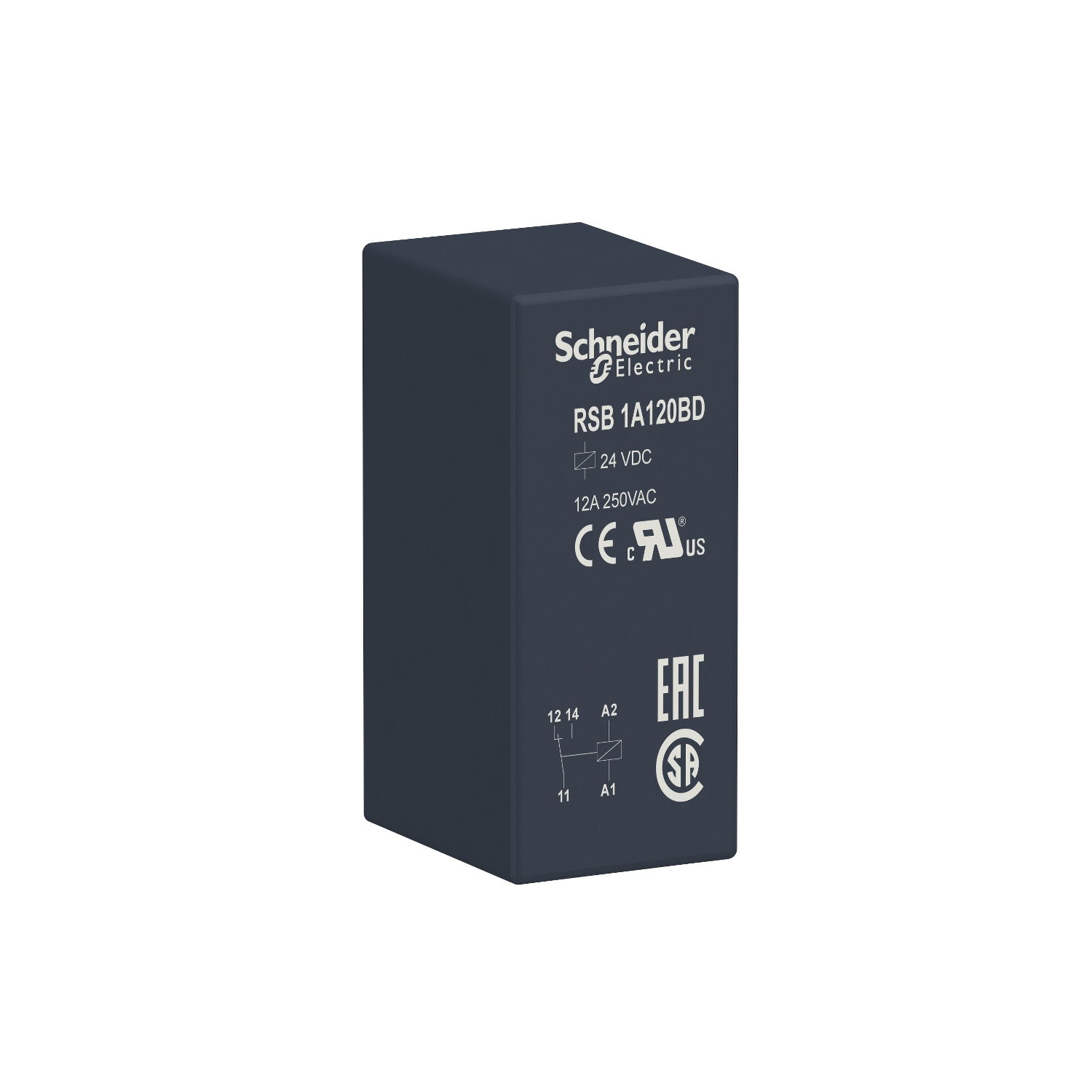

This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 3.07 - £ 4.93 Excl. VAT

Specifications

Depth 15.7 mm
Width 12.5 mm
Height 29 mm
Nominal current 12 A
Material contact Other
Drive, polarization Polarity free
With LED indication no
Complete with socket no
Max. starting current -
With detachable clamps no
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating DC
Type of electric connection Other
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0

Documents

Declaration of Conformity (Sustainability)

RSB1A120BD REACh Regulation

Open

Product data sheet

Open

Catalog

Harmony Electromechanical Relays Catalog - EN

Open

Declaration of Conformity (Sustainability)

RSB1A120BD EU RoHS Directive

Open

Declaration of conformity

EU DOC - Zelio Relays RSB RSZE

Open

Environmental Disclosure

750 Series Hermetically Sealed Relay

Open
