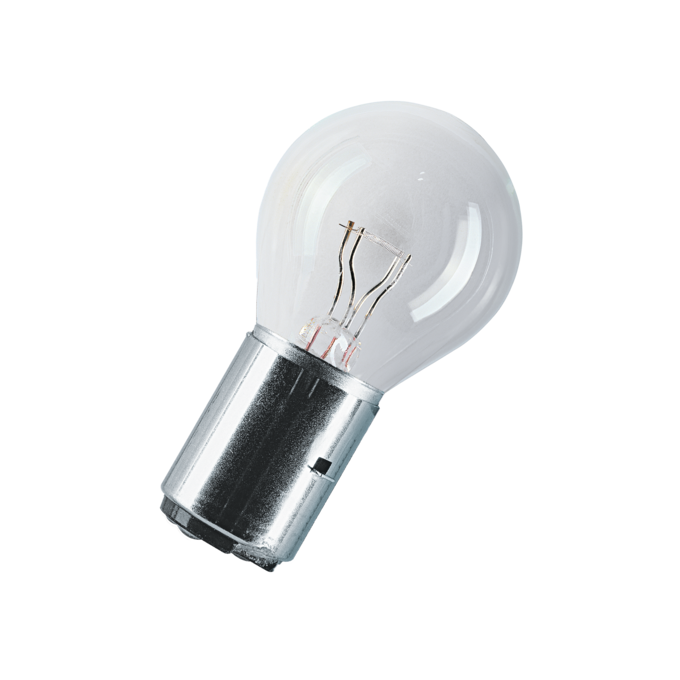

SIG 3015 LL
1 / 3
SIG 3015 LL
Product benefits
- Second filament takes over when the main filament fails
- Various wattages matched to specific needs of the relevant optical systems
Areas of application
- Railway traffic signalling systems
Product features
- Dual-coil lamps for higher operation safety of the signalling system
Safety advice
- Use only in signal equipment/luminaires that are specially designed for the purpose. Protect the lamps against moisture during operation and installation.
Product identifiers
SKU: 4050300831336
EAN: 4050300831336
GTIN: 4050300831336
MPN: 4050300831336
Price: £ 0.00 Excl. VAT
Categories
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 8800 h |
Capabilities
| Burning position | hs30 |
Electrical data
| Nominal wattage | 15/15 W |
| Construction wattage | 15.00 W |
| Nominal voltage | 30 V |
Photometrical data
| Luminous flux | 160 lm |
| Luminous efficacy | 10 lm/W |
Dimensions & Weight
| Overall length | 67.00 mm |
