Flex Strip COB USB Type C 1.5m 830
1 / 3
Flex Strip COB USB Type C 1.5m 830
- SKU
- EAN
- GTIN
- MPN
Product benefits
- Easy and quick installation
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- COB technology for homogeneous light distribution
- Flexible, bendable LED strips
- Light color: Warm White
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Specifications
Electrical data
| Nominal wattage | 1.50 W |
| Nominal voltage | 5 V |
| Nominal current | 300.000 mA |
| Power factor λ | 1.00 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 80 lm |
| Total luminous flux of contained light sources | 80 lm |
Documents
Documents and certificates
Data sheet
Documents And Certificates
Product Images And Graphics

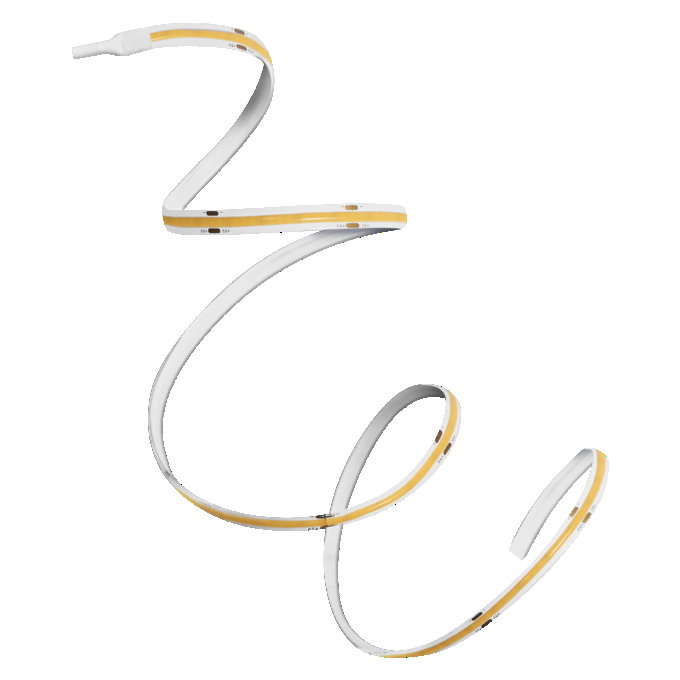

Product image: white background, upright – FLEX COB USB TYPE C 1.5M 830

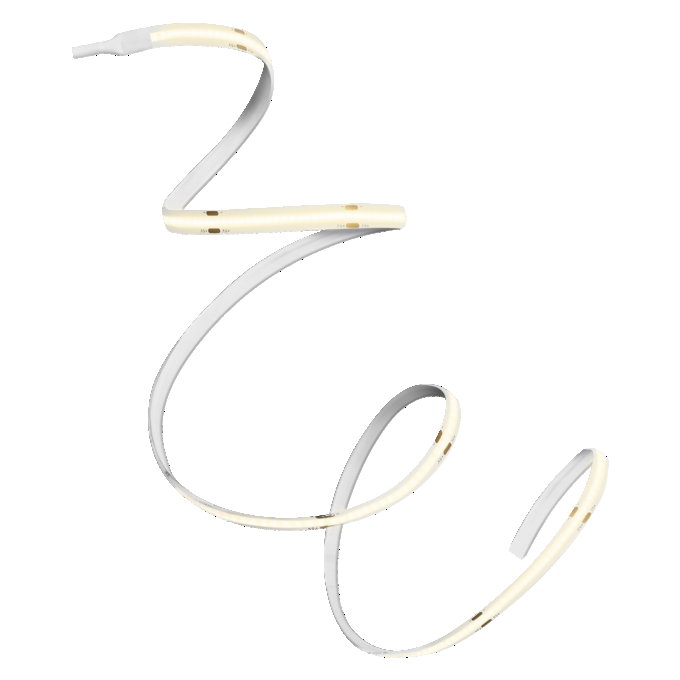

Product image: white background, upright, switched on – FLEX COB USB TYPE C 1.5M 830
Product line drawing with letters – FLEX COB USB TYPE C 1.5M 830
Product line drawing with numbers – FLEX COB USB TYPE C 1.5M 830
