Undercabinet Flexus Linear 4.2W CCT DIM White
1 / 5
Undercabinet Flexus Linear 4.2W CCT DIM White
- SKU
- EAN
- GTIN
- MPN
Product benefits
- Connection of up to 4 luminaires in a row via enclosed connector cable, also in combination with Flexus Spot
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor for at least one second
- Easy and fast mounting on nearly every surface (adhesive tape)
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Specifications
Electrical data
| Nominal wattage | 4.20 W |
| Nominal voltage | 220…240 V |
| Nominal current | 36 mA |
| Inrush current | 0.0357 A |
| Inrush current time T h50 | 112 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Power factor λ | ≥0.5 |
Documents
Documents and certificates
Data sheet
Documents And Certificates
Product Images And Graphics

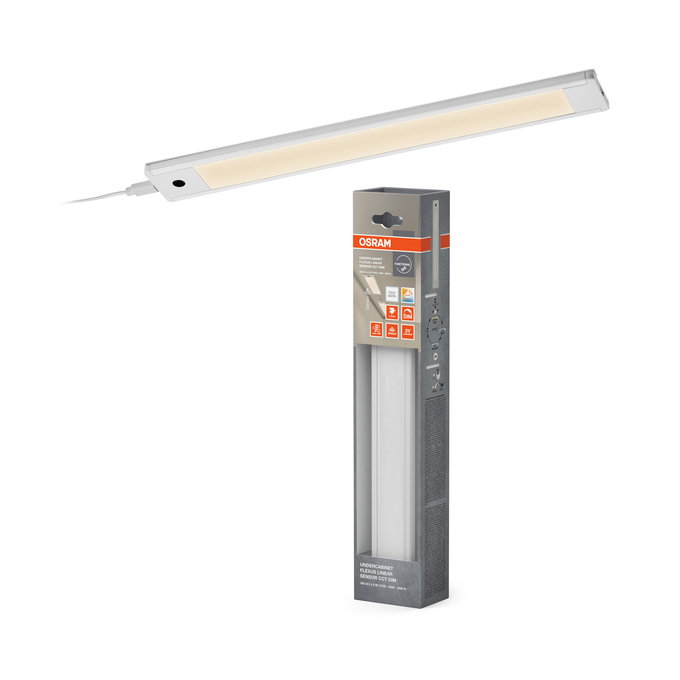

Product image: white background, upright – UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM

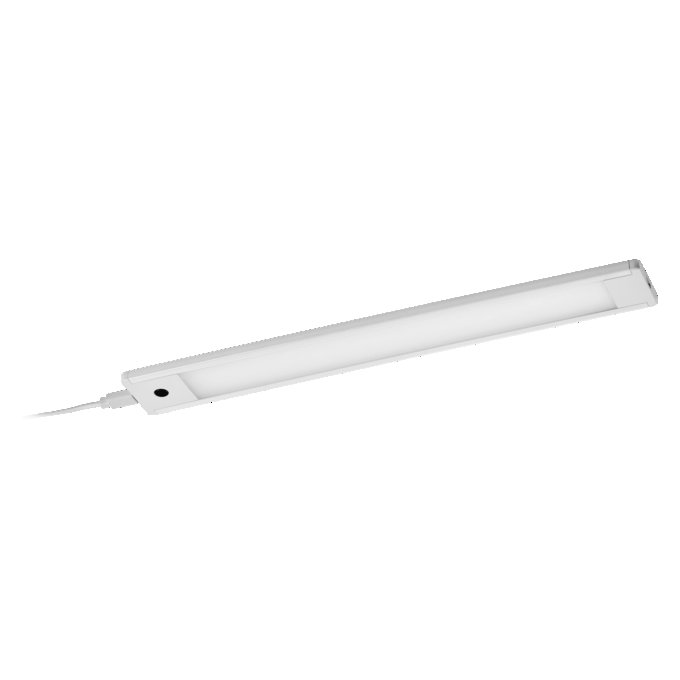

Product image: white background, upright, alternative image – UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM

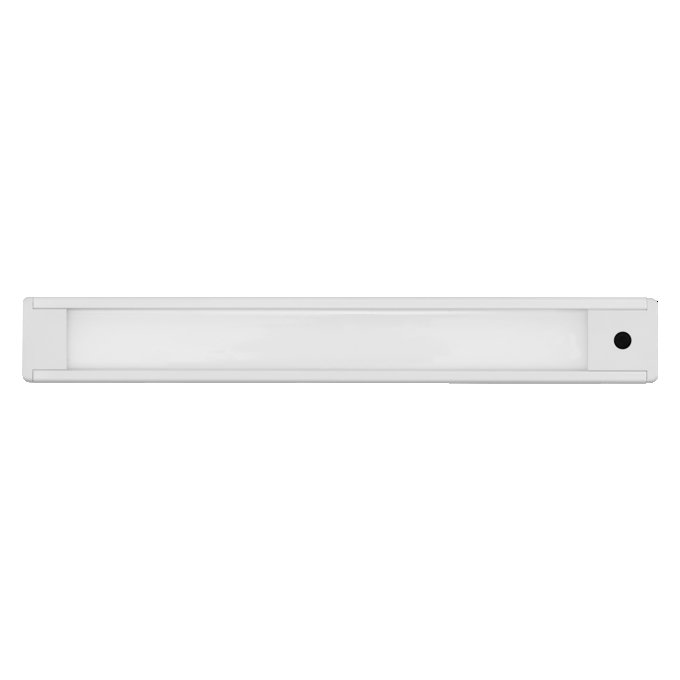

Product image: white background, upright, switched on – UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM

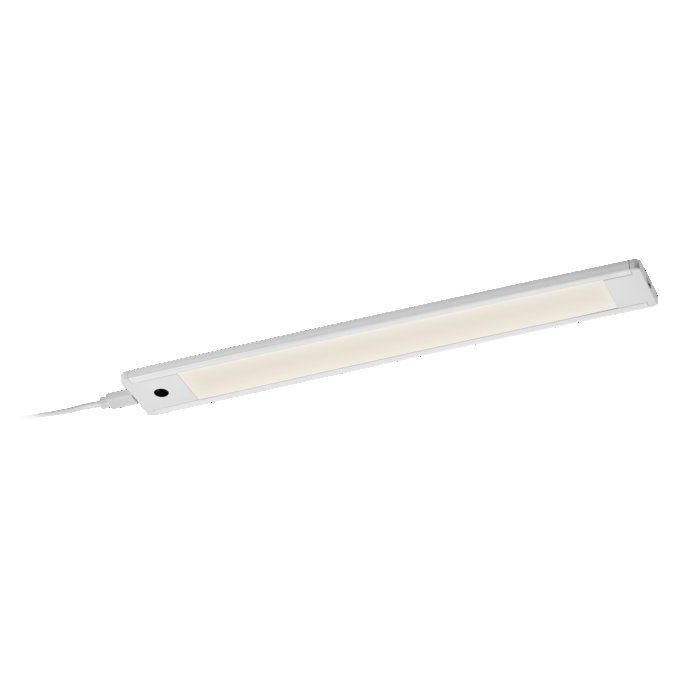

Product image: white background, upright, switched on – UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM
