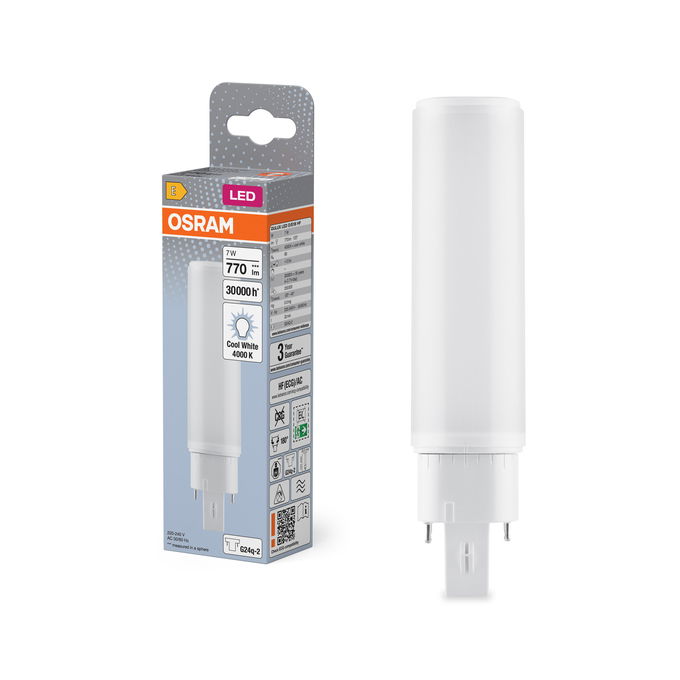

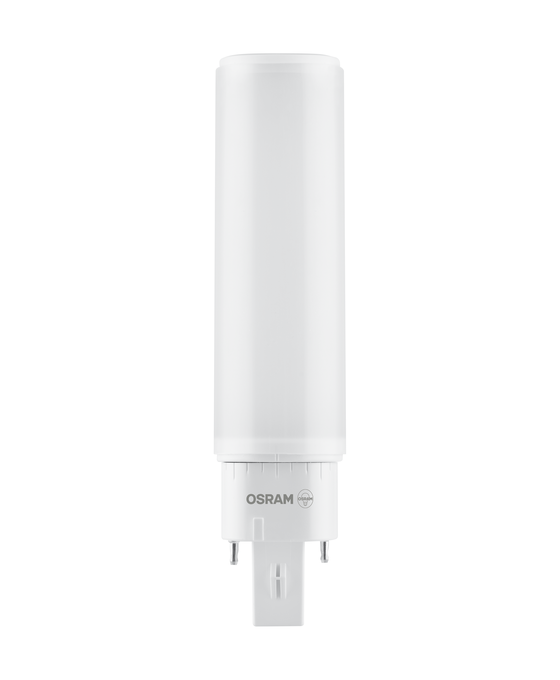

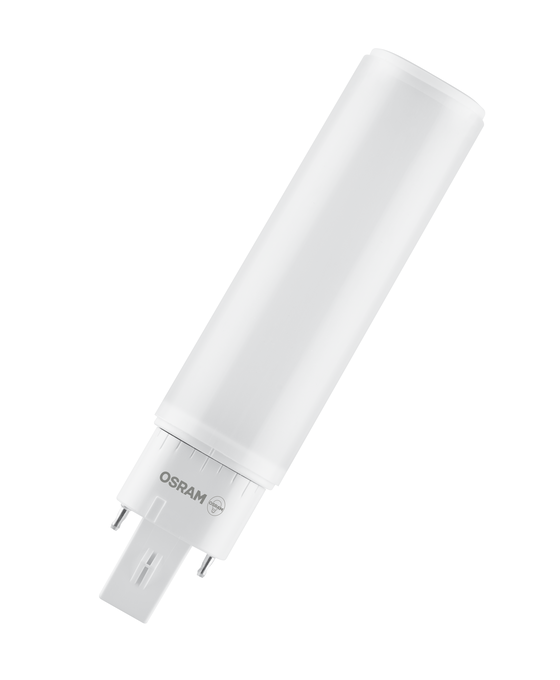

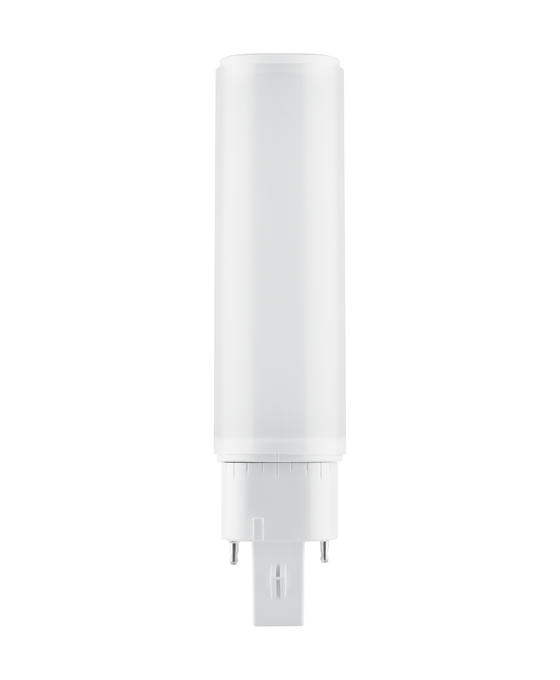

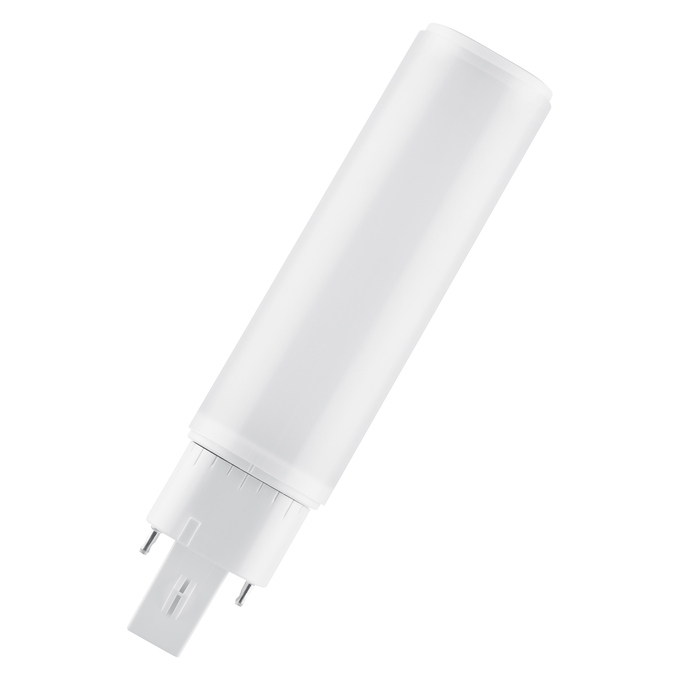

DULUX LED D/E18 HF & AC MAINS 7W 840 G24Q-2

DULUX LED D/E18 HF & AC MAINS 7W 840 G24Q-2 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £15.42 excl. VAT.

Product benefits

Easy installation
Easy relamping thanks to compact design
Operation directly on 230 V AC mains possible

Areas of application

Supermarkets and department stores
Walkways and corridors
Hotels, restaurants

Product features

LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
Single-ended four-pin plug-in G24q base
Rotatable base around its longitudinal axis (± 90°)
Lifetime up to 30,000 h
Type of protection: IP20
Mercury-free lamps

Safety advice

Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
Not suitable for operation with conventional control gear.
The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
All electrical connections must be made by a qualified person.
Not suitable for emergency lighting.
Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075559158

EAN: 4058075559158

GTIN: 4058075559158

MPN: 4058075559158

Price: £ 15.42 Excl. VAT

Specifications

Electrical data

Nominal wattage	7 W
Construction wattage	7.00 W
Nominal voltage	220…240 V
Operating mode	ECG, AC Mains 1)
Claimed equiv. conventional lamp power	18 W
Nominal current	32 mA
Type of current	AC
Inrush current	4 A
Suitable for DC input	Yes
Input voltage DC	186…260 V 2)
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	280
Max. lamp number on MCB B16 A	440
Total harmonic distortion	≤ 30 %
Power factor λ	> 0.90

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

User instruction / safety instructions – OSRAM DULUX D/E LED

Open

Extended installation guide – Installation instructions LED TUBE T8, T5 und DULUX LED 2026 10 EN

Open

Legal information – Informationstext 18 Abs 4 ElektroG

Open

Declarations of conformity UKCA – DULUX LED

Open

Declarations of conformity UKCA – DULUX LED

Open

Declarations of conformity UKCA – LEDTUBE

Open

PRODUCT DATASHEET – DULUXDELEDHF&ACMains7W 4000Kde

Open

Product datasheet -> old version of product – DULUXLEDDE18HF&ACMAINS 7W840G24Q2en

Open

Product Images And Graphics

Photometric And Lighting Design Files

Luminous flux	770 lm
Luminous efficacy	110 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.90
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Beam angle	120 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	141.00 mm
Diameter	32.50 mm
Tube diameter	33,0 mm
Product weight	61.00 g

Ambient temperature range	-20…+45 °C 1)
Maximum temperature at tc test point	70 °C

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Base (standard designation)	G24q-2
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted

Energy efficiency class	E 1)
Energy consumption	7.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG0

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G24q-2
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	No
Length	141.00 mm
Height	32.50 mm
Width	32.50 mm
Chromaticity coordinate x	0.381
Chromaticity coordinate y	0.379
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.90
LED light source replaces a fluorescent light source	No
EPREL ID	604653,1412842,2206832
Model number	AC35187,AC47831,AC71189

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
