TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V AC 50/60 Hz coil
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V AC 50/60 Hz coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Farnell, RS Components, Rexel Group and 1 more. It is currently in stock at all of them. Trade prices range from £102.25 to £108.14 excl. VAT. Voltimum+ members earn 14 points per unit.

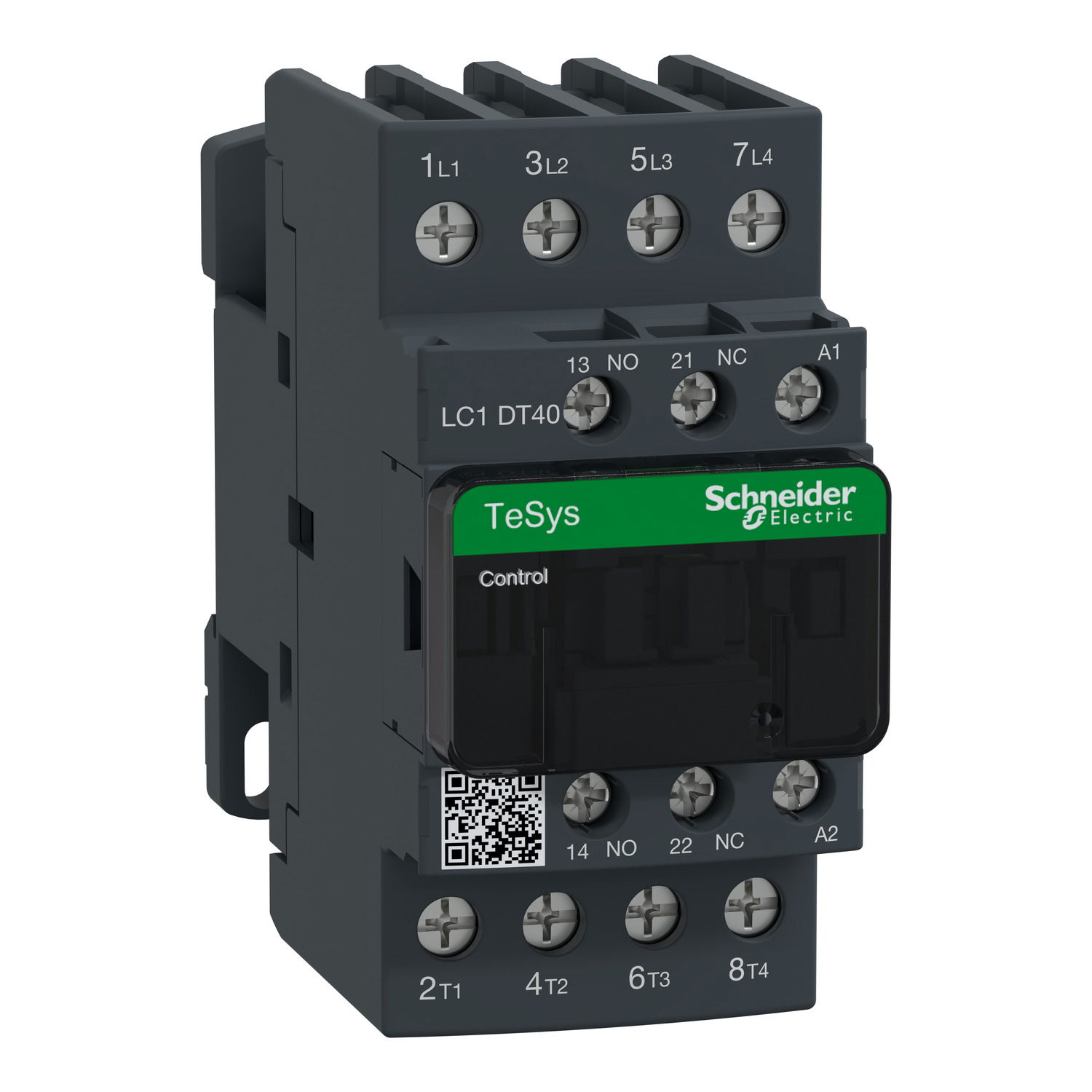

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1DT40B7
EAN: 3389110244649
GTIN: 3389110244649
MPN: LC1DT40B7
Loyalty points:
14
Price range: £ 102.25 - £ 108.14 Excl. VAT
ETIM group
Specifications
| Depth | 99 mm |
| Width | 45 mm |
| Height | 91 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
