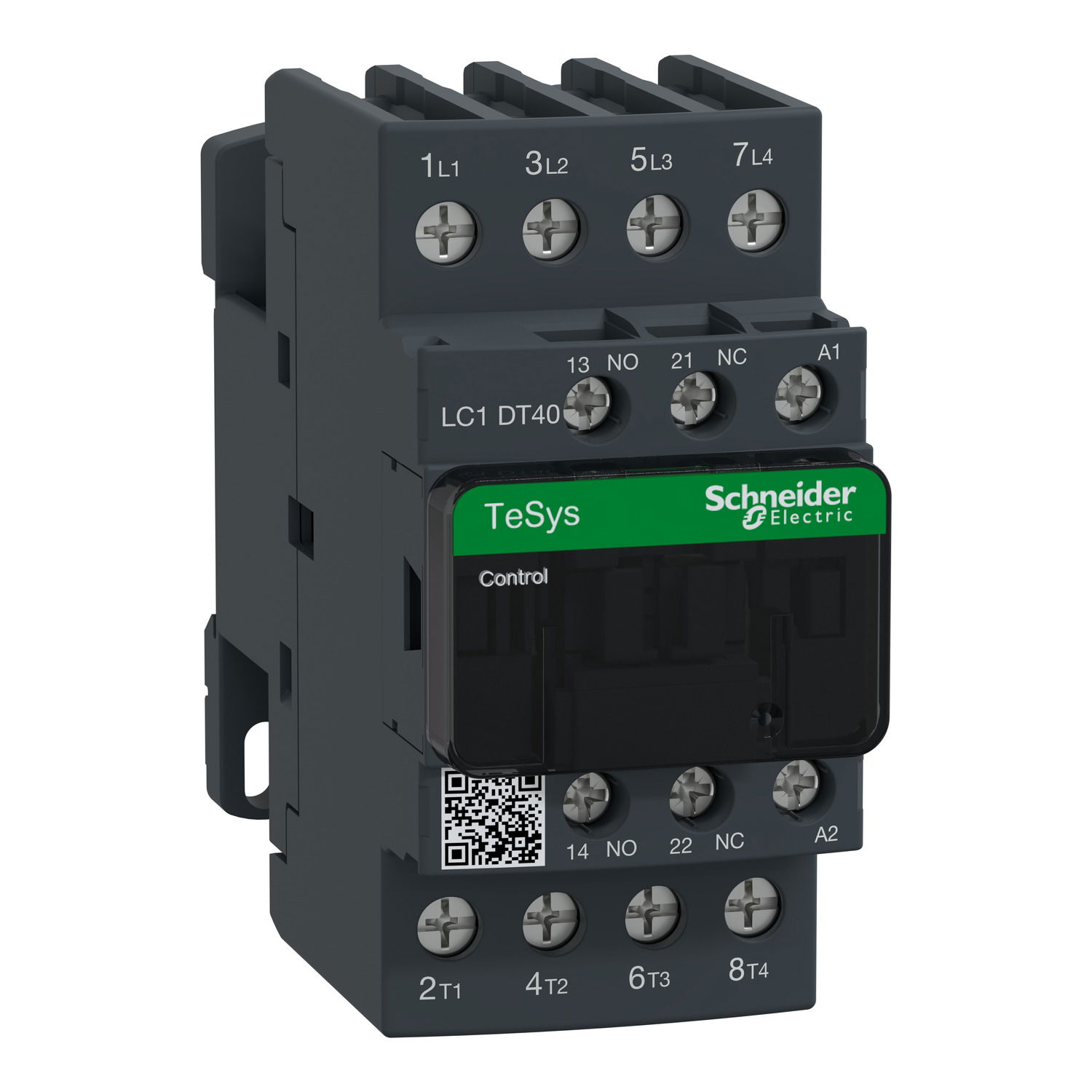

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 110 V AC 50/60 Hz coil
1 / 2
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 110 V AC 50/60 Hz coil
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 110 V AC 50/60 Hz coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at all of them. Trade prices range from £66.40 to £108.14 excl. VAT. Voltimum+ members earn 14 points per unit.
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1DT40F7
EAN: 3389110577693
GTIN: 3389110577693
MPN: LC1DT40F7
Loyalty points:
14
Price range: £ 66.40 - £ 108.14 Excl. VAT
ETIM group
Specifications
| Depth | 99 mm |
| Width | 45 mm |
| Height | 91 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
