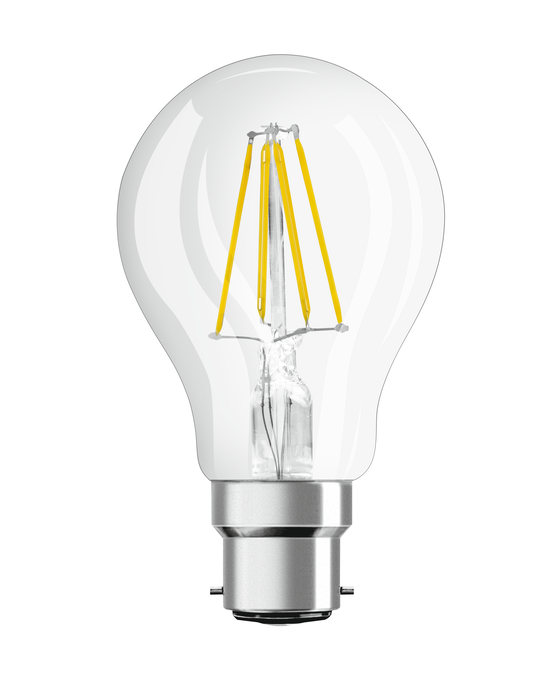

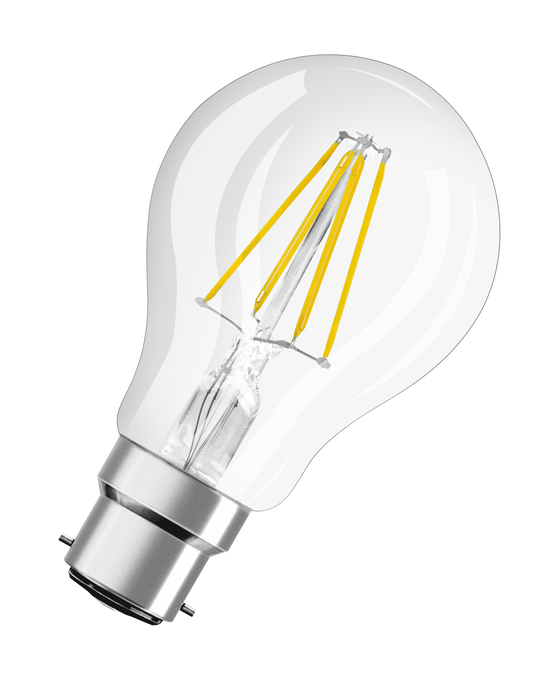

LED Star Classic A 40 Filament 4W 827 Clear B22d

LED Star Classic A 40 Filament 4W 827 Clear B22d by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £3.34 to £3.63 excl. VAT.

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime up to 15,000 h
  • Beam angle: up to 300°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075435421
EAN: 4058075435421
GTIN: 4058075435421
MPN: 4058075435421

Price range: £ 3.34 - £ 3.63 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Capabilities

Dimmable No

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 32 mA
Inrush current 1.5 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 480
