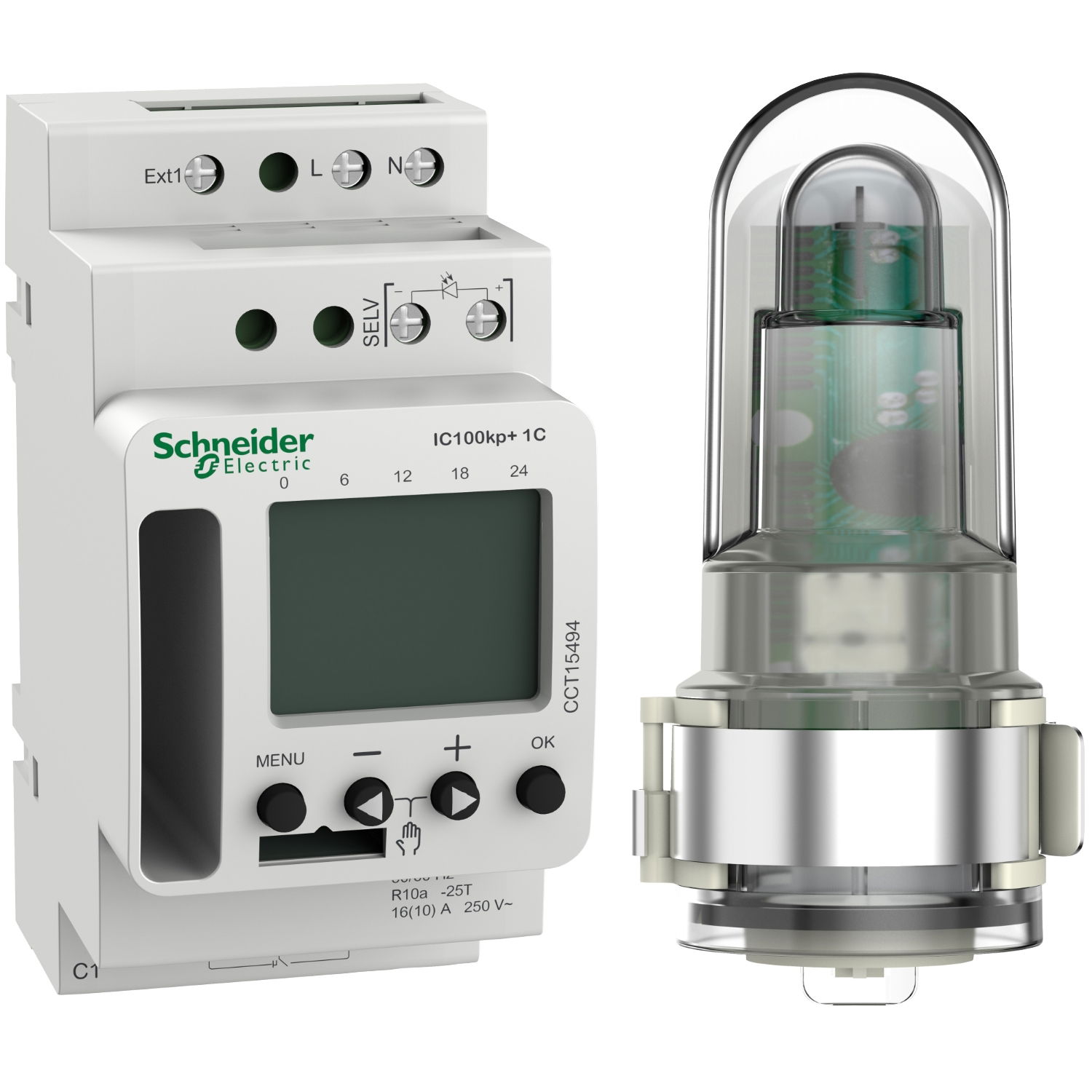

Acti9 IC100kp+ 1C (1 - 99000 lux) SMART programmable twilight switch
Acti9 IC100kp+ 1C (1 - 99000 lux) SMART programmable twilight switch
IC100kp+ SMART digital twilight switch Width of 45mm (5 modules of 9mm) To start and stop an electric load according to measured light level between 1 - 99.000 lux. Integrated time switch with swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 1 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily
Product identifiers
SKU: CCT15494
EAN: 3606489524562
GTIN: 3606489524562
MPN: CCT15494
Loyalty points:
34
Price: £ 205.00 Excl. VAT
Specifications
| Rated voltage | 230 V |
| Built-in depth | 67 mm |
| Mounting method | DIN rail |
| Rated frequency | |
| Push button input | yes |
| Rated switch current | 16 A |
| Max. switching power LED | - |
| Degree of protection (IP) | IP20 |
Documents
Declaration of Conformity (Sustainability)
CCT15494 REACh Regulation
User guide
Acti 9- IC100KP+ SMART Programmable Twilight Switch-Operating instructions (EN)
Product data sheet
Catalog
Acti9 Isobar P Active Safety System
Declaration of Conformity (Sustainability)
CCT15494 EU RoHS Directive
Declaration of conformity
EU declaration of conformity
Circularity Profile
IC Astro - Time switch 1C - SMART - Product End of Life Instructions
CAD
