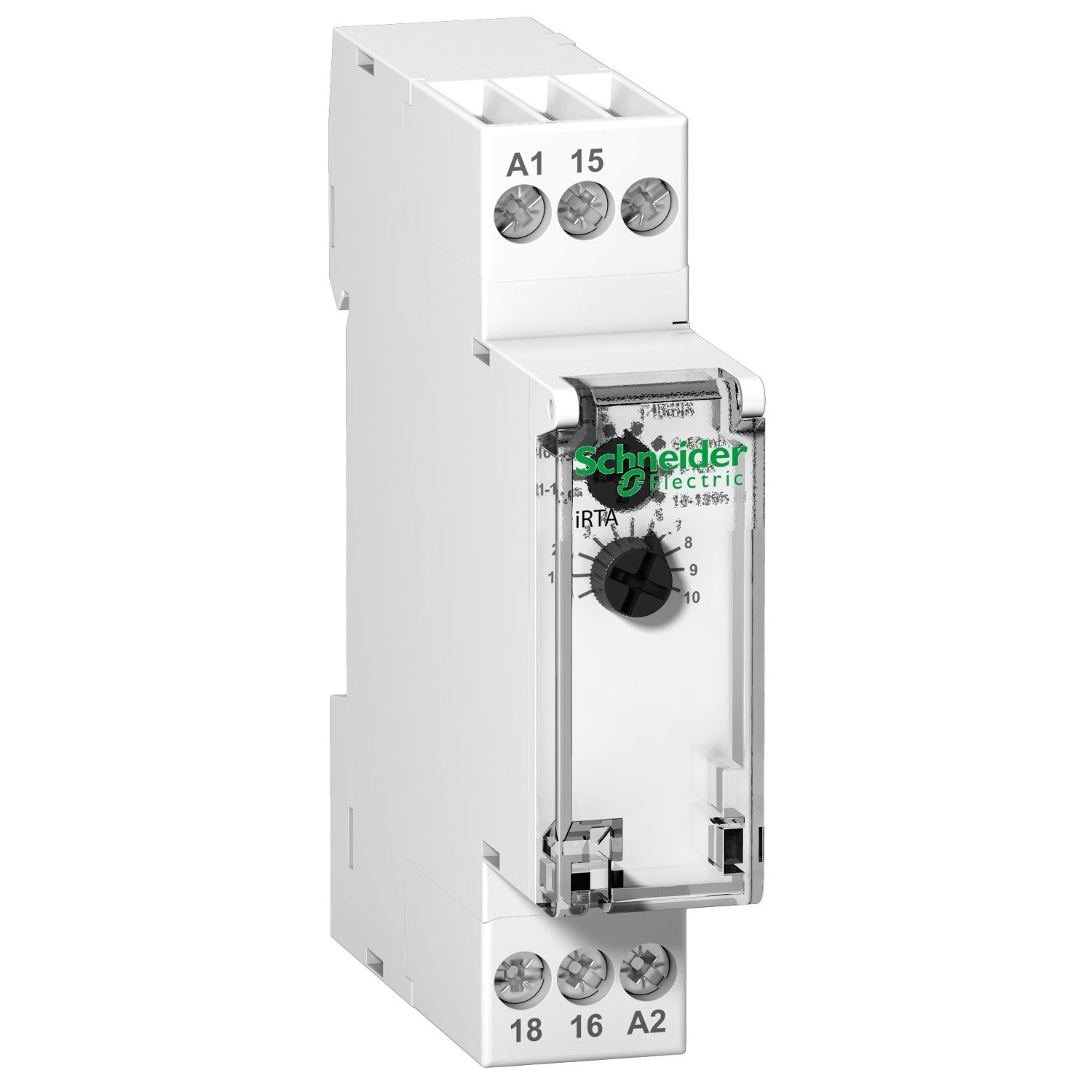

IRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC

IRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £92.15 excl. VAT. Voltimum+ members earn 14 points per unit.

This Acti 9 iRTA is an operating Time delay relay. The time delay range is 0.1s to 100h. It delays emergizing of a load. The single time daily cycle starts at the switching ON of the iRTA relay power supply. The Uc control and power supply voltage is from 24VAC to 240VAC +/- 10% and 24VDC +/- 10%. The load is energized at the end of the time delay T. The operating frequency is 50Hz or 60Hz. The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 90mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.

Product identifiers

SKU: A9E16065
EAN: 3606480377419
GTIN: 3606480377419
MPN: A9E16065

Voltimum+ Loyalty Programme Loyalty points: 14

Price: £ 92.15 Excl. VAT

Categories

Relays Electronic Components LED Lighting & Luminaires Lighting Controls

ETIM group

Devices for distribution board-/surface mounting

Specifications

Function Operating delay
1st interval
2nd interval
Supply voltage
Built-in height 81 mm
Mounting method DIN rail
1st interval unit Seconds/hours
2nd interval unit -
Control voltage 2
Type of control voltage 1 AC
Frequency control voltage 1
Number of changeover switches 1
Switch capacity incandescent lamps -
Switch capacity fluorescent lamp DUO -
Switch capacity fluorescent lamp parallel -
Number of contacts as normally open contact 0
