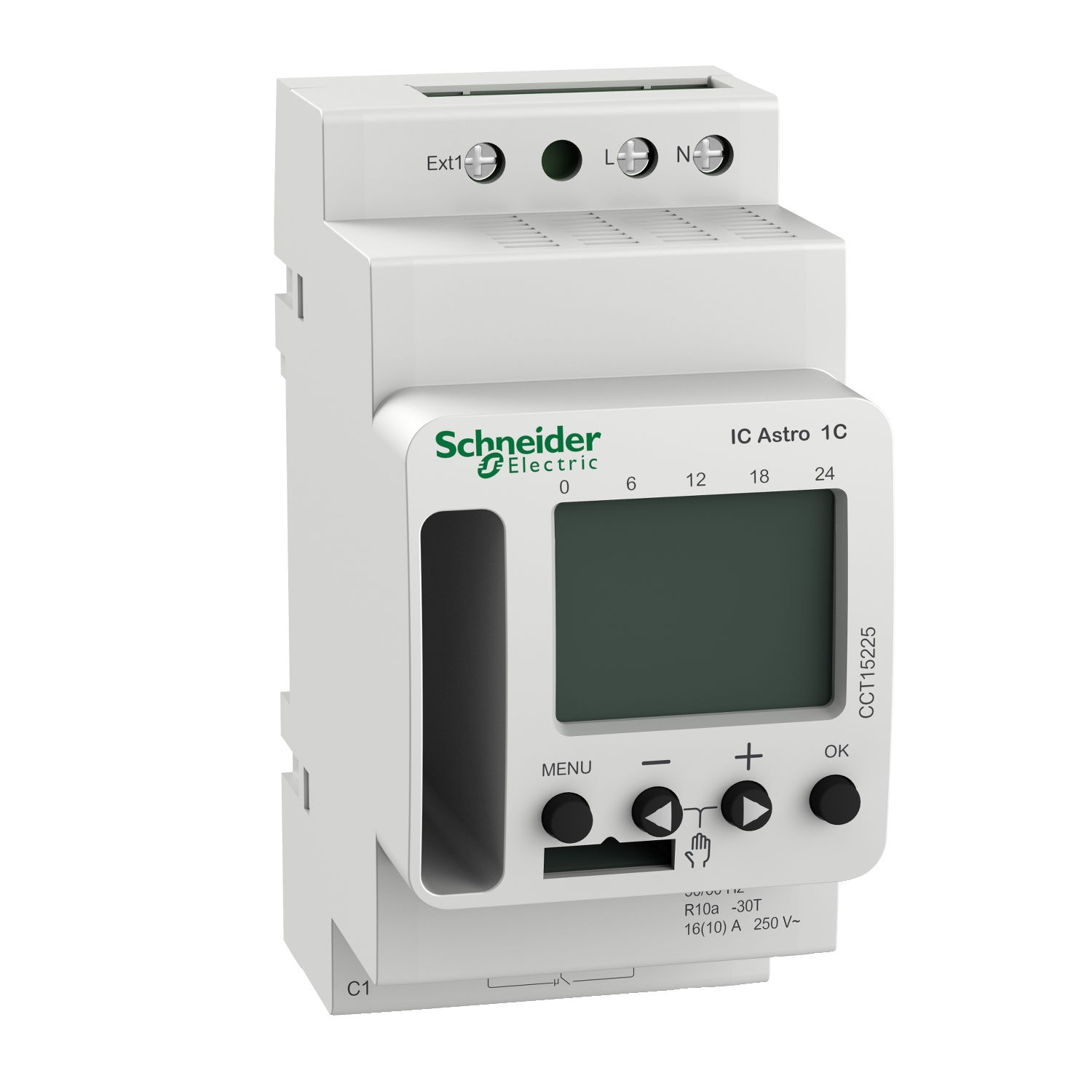

Acti9 IC Astro 1C SMART programmable twilight switch
Acti9 IC Astro 1C SMART programmable twilight switch
Acti9 IC Astro 1C SMART programmable twilight switch by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £493.46 excl. VAT. Voltimum+ members earn 57 points per unit.
IC Astro SMART astronomic programmable twilight switch Width of 45mm (5 modules of 9mm) To start and stop an electric load according to sunrise and sunset times No need to use a brightness sensor as sunrise and sunset times are calculated automatically according to geographical location Integrated time switch with swiching cycle is 7 days (weekly). 84 switching operations Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 1 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily
Product identifiers
SKU: CCT15225
EAN: 3606489524548
GTIN: 3606489524548
MPN: CCT15225
Loyalty points:
57
Price: £ 493.46 Excl. VAT
Specifications
| Rated voltage | 230 V |
| Built-in depth | 67 mm |
| Mounting method | DIN rail |
| Rated frequency | |
| Push button input | yes |
| Rated switch current | 16 A |
| Max. switching power LED | - |
| Degree of protection (IP) | IP20 |
