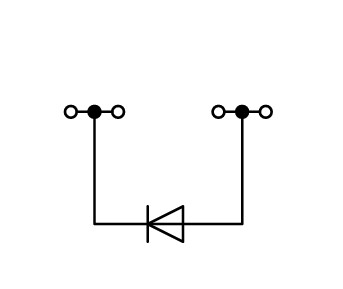

Component terminal block 4-conductor with diode 1N4007 gray
Component terminal block; 4-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®; gray
Product identifiers
SKU: 279-623/281-411
EAN: 4050821275381
GTIN: 4050821275381
MPN: 279-623/281-411
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
27
|
|
Width
|
4
|
|
Colour
|
Grey
|
|
Height
|
68
|
|
Rated voltage
|
250
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
0.5
|
|
Type of component
|
Diode
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
4
|
|
Connectable conductor cross section solid-core
|
0.08 - 1.5
|
|
Connectable conductor cross section multi-wired
|
0.08 - 1.5
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.08 - 1.5
|
