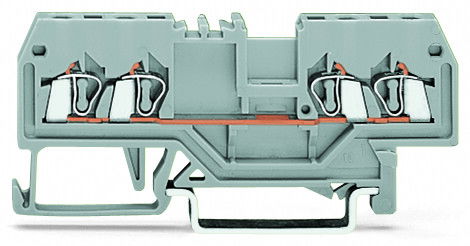

4-conductor through terminal block 1.5 mm² center marking gray

Name: 4-conductor through terminal block 1.5 mm² center marking gray
Brand: Wago
SKU: 279-831
Availability: InStock

4-conductor through terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 1,50 mm²; gray

Product identifiers

SKU: 279-831

EAN: 4044918520423

GTIN: 4044918520423

MPN: 279-831

Price range: £ 0.01 - £ 1.65 Excl. VAT

Terminal blocks

Specifications

Depth	27
Width	4
Colour	Grey
Height	73
EFNA0008	V0
Rated voltage	800
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	18
Operating temperature	105 - 105
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	-
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.08 - 1.5
Connectable conductor cross section multi-wired	0.08 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 1.5
