LEDVANCE

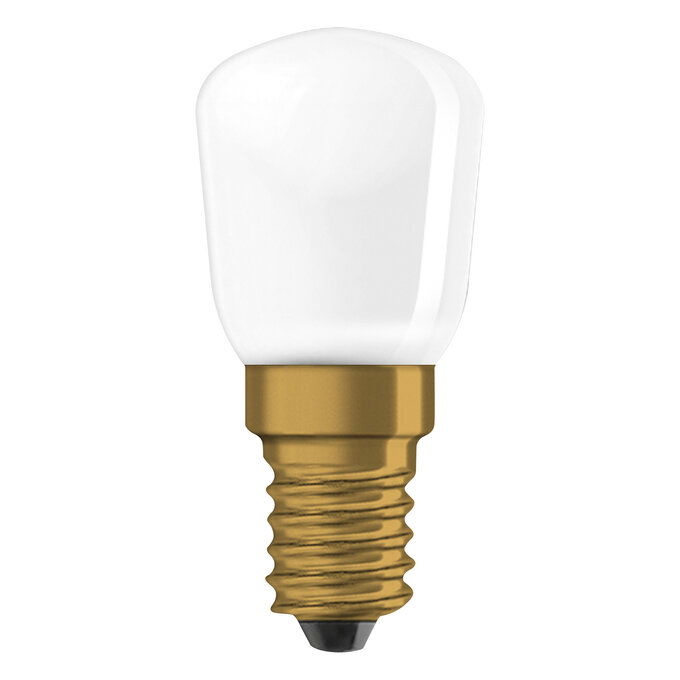

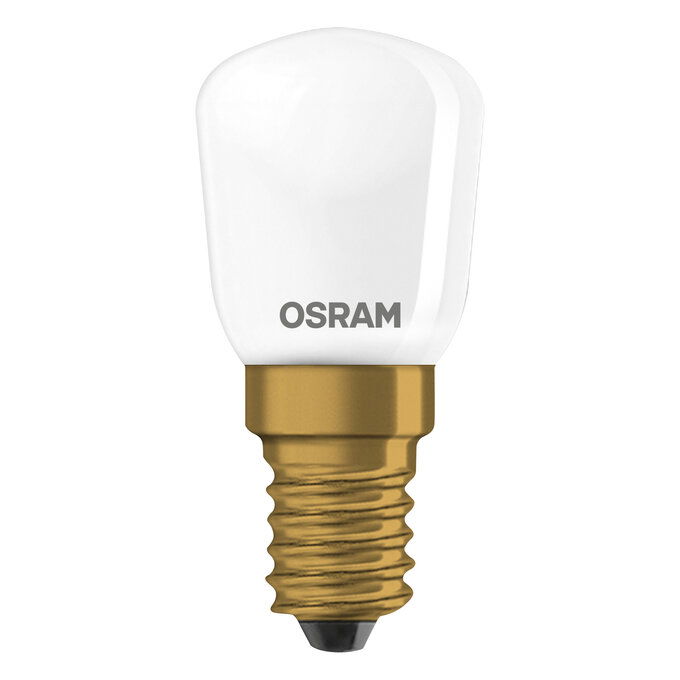

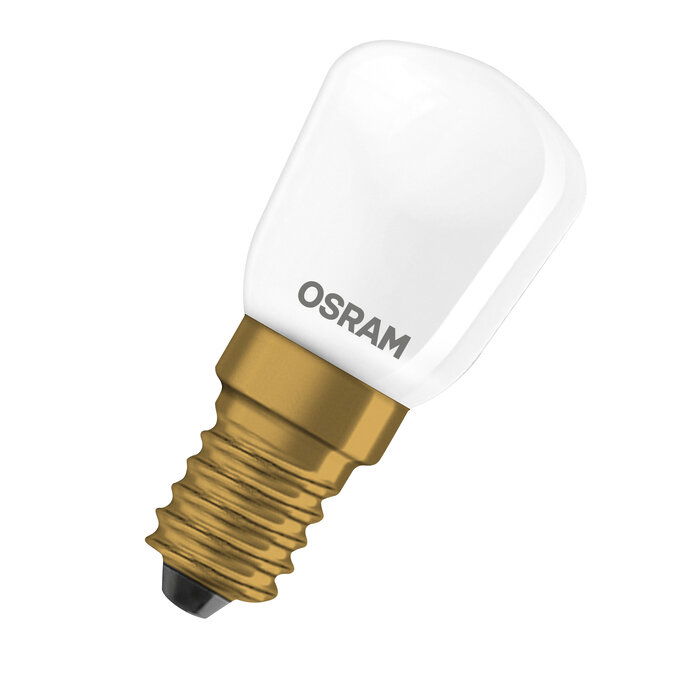

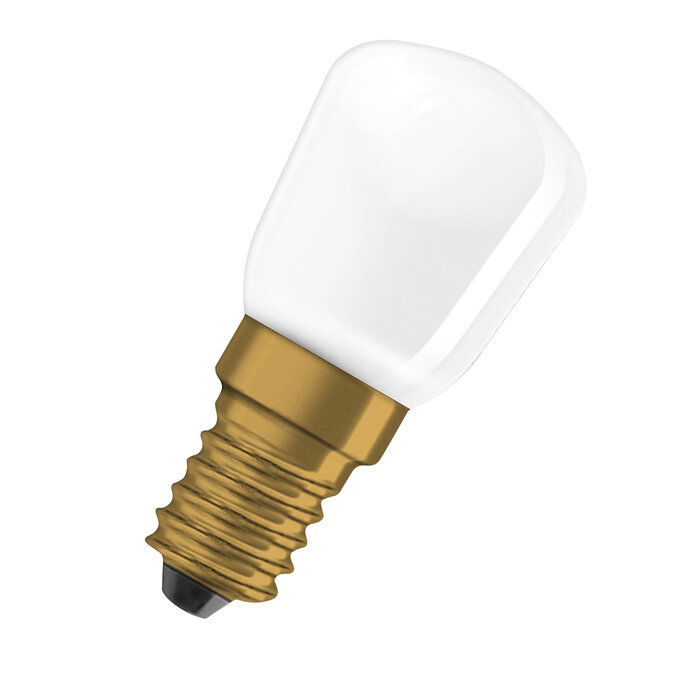

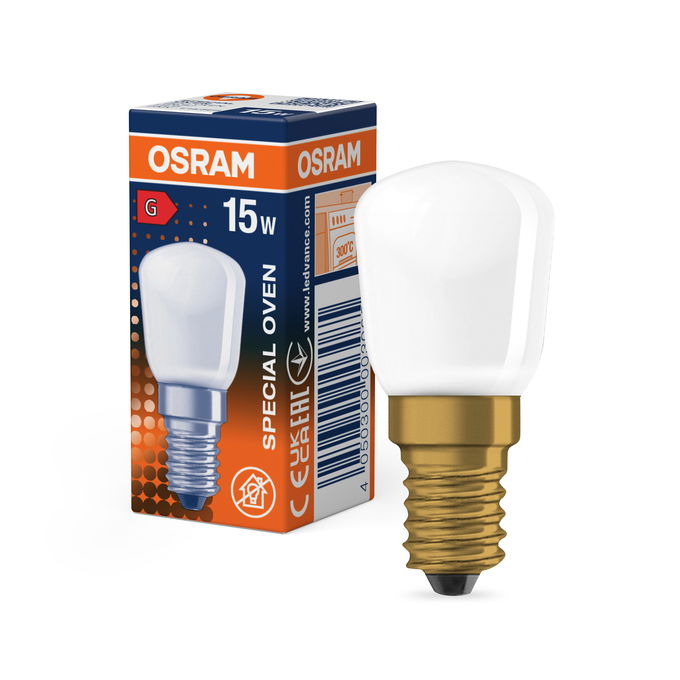

SPC.T FR 15 W 230 V E14

Areas of application
  • Domestic baking ovens
Product features
  • Ambient temperature: up to 300 °C
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
  • Not designed as a replacement for conventional lighting in private household.

Product identifiers

SKU: 4050300003085
EAN: 4050300003085
GTIN: 4050300003085
MPN: 4050300003085

Price: £ 0.00 Excl. VAT

Categories

Specialty Lamps LED Lighting & Luminaires

ETIM group

Lamps

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 1000 h

Capabilities

Dimmable Yes

Electrical data

Nominal wattage 15 W
Construction wattage 15.00 W
Nominal voltage 230 V

Photometrical data

Luminous flux 85 lm
Luminous efficacy 5 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color rendering index Ra > 99
