LEDVANCE

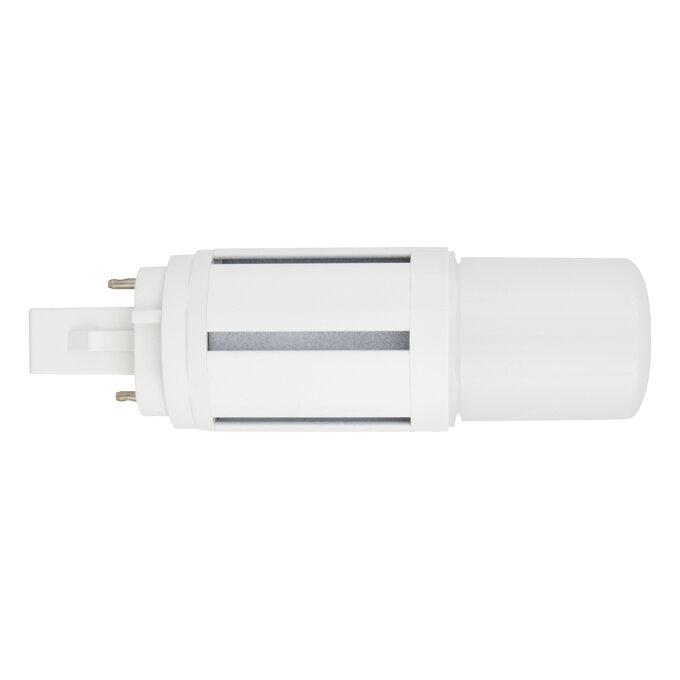

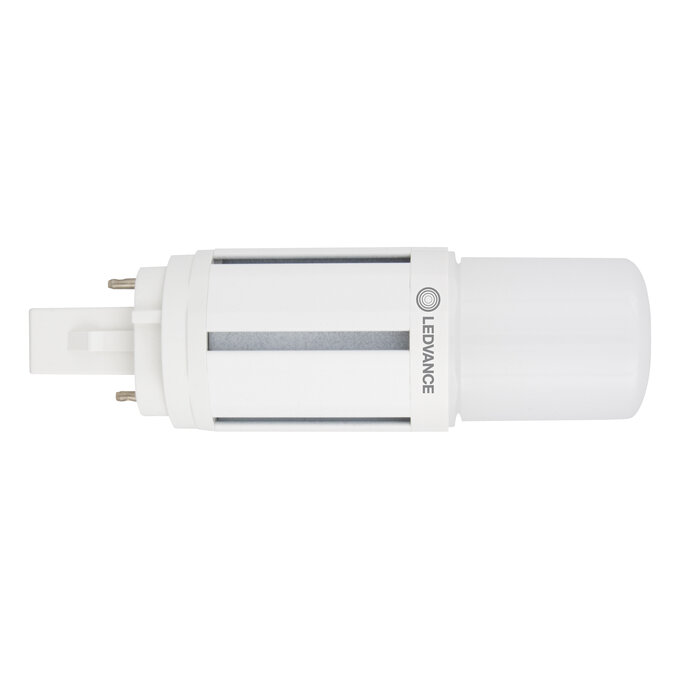

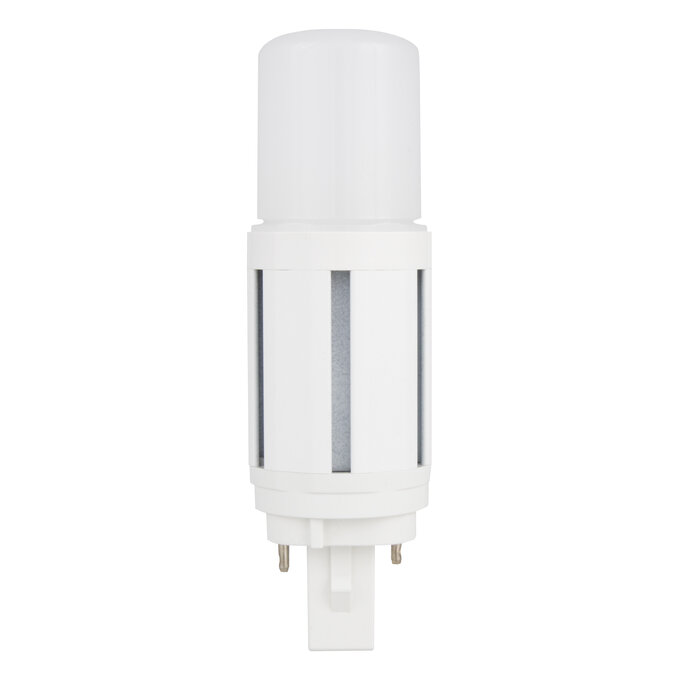

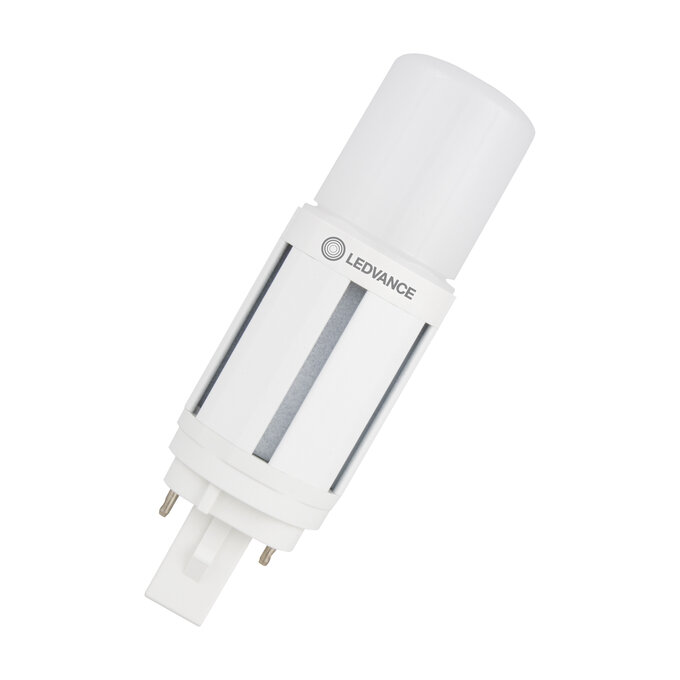

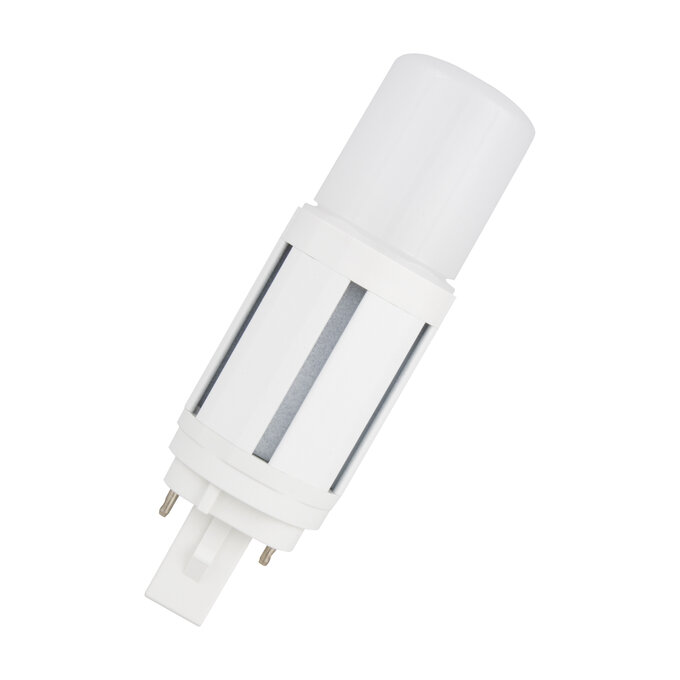

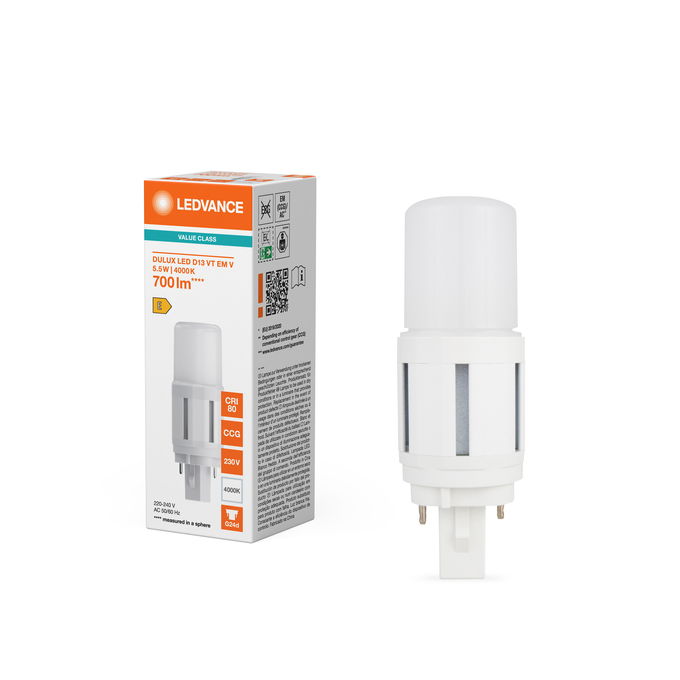

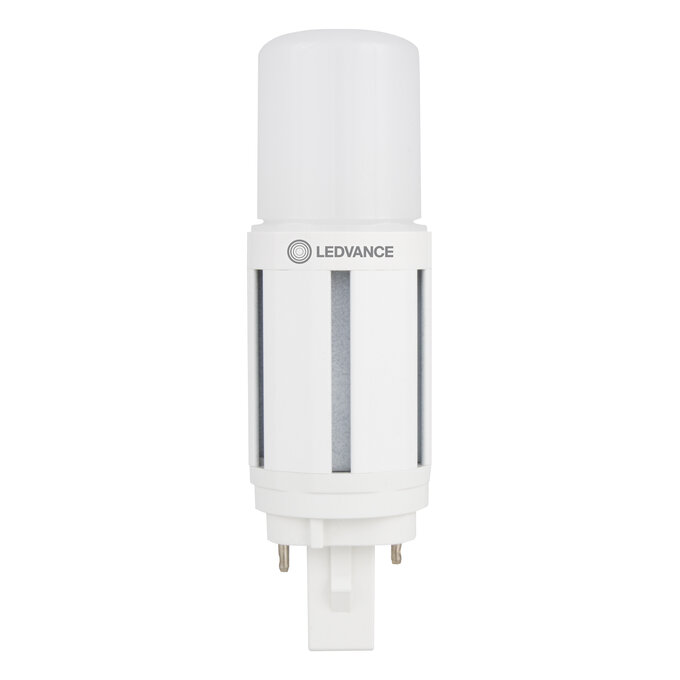

DULUX LED D13 VT EM & AC MAINS VALUE 5.5W 840 G24D

DULUX LED D13 VT EM & AC MAINS VALUE 5.5W 840 G24D by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £10.23 excl. VAT.

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Only suitable for vertical application
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Must not be used if outer bulb is defective.
  • Do not touch the lamp if broken.

Product identifiers

SKU: 4058075821835
EAN: 4058075821835
GTIN: 4058075821835
MPN: 4058075821835

Price: £ 10.23 Excl. VAT

Categories

LED Lighting & Luminaires LED Lighting LED Bulbs & Lamps

ETIM group

Lamps

Specifications

Electrical data

Nominal wattage 5.5 W
Construction wattage 5.50 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 13 W
Nominal current 25 mA
Type of current AC
Inrush current 14.4 A
Input voltage DC 186…260 V 1)
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A - CCG without compensation 160
Max. lamp number on MCB B16 A 52
Max. lamp number on MCB B16 A - CCG with compensation 13
Power factor λ > 0.90
