Philips

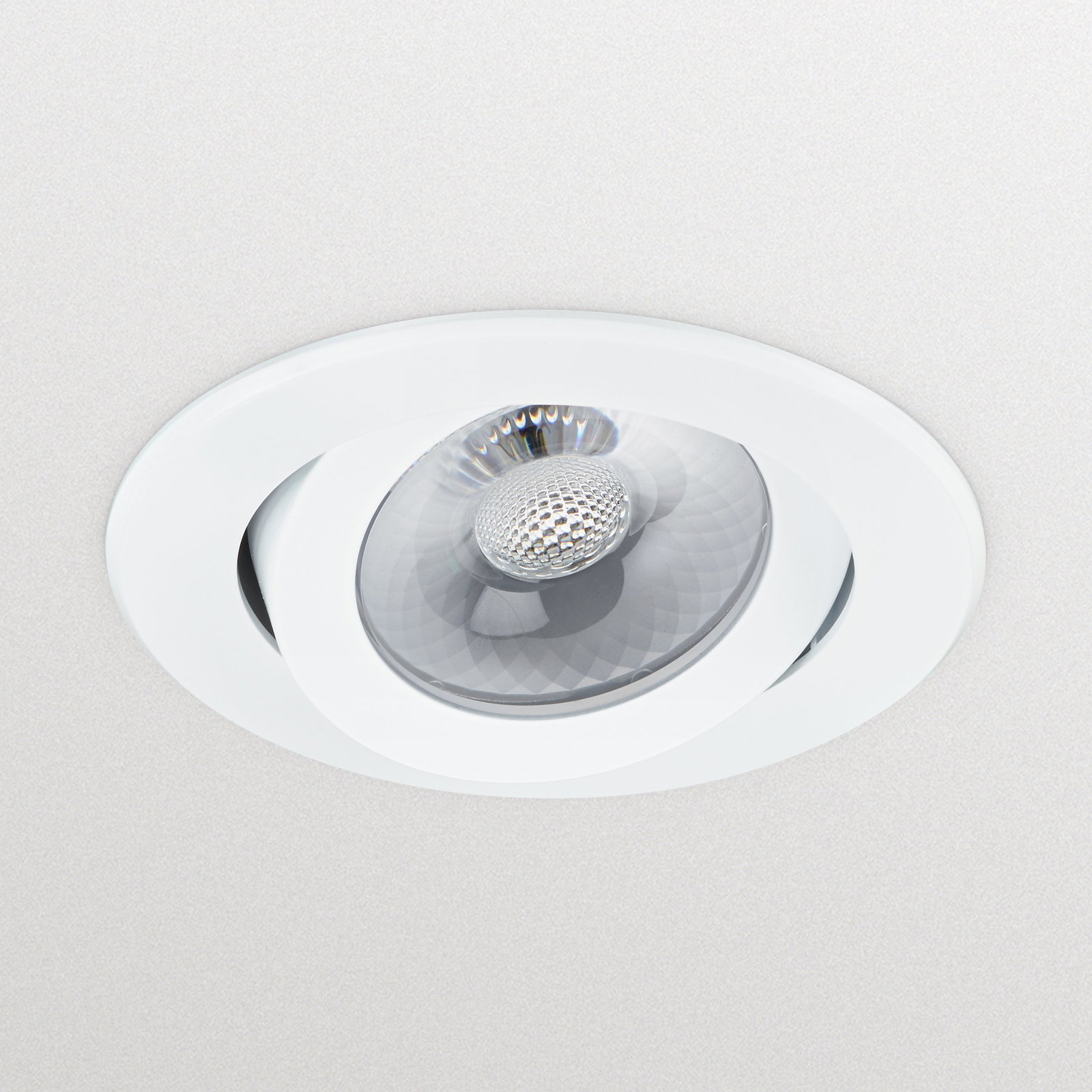

CoreLine Recessed Spot gen2, Adjustable, 12.3 W, D78 mm, 1200 lm, 3000 K, Phase-cut dim, Wide beam, White, IP20/44

CoreLine Recessed Spot gen2, Adjustable, D78 mm, Aluminium die-cast, White, Power supply unit regulating external, 1200 lm, 12.3 W, 98 lm/W, 3000 K, (0.43, 0.40) SDCM 5, Wide beam, Polycarbonate, IP20/44 | Finger-protected; wire-protected, splash-proof, IK03 | 0.3 J, Safety class II, Cable 0.25 m with connector 3-pole, Push-in connector 3-pole

Product identifiers

SKU: 911401898282

Price: £ 0.00 Excl. VAT

Categories

Luminaires LED Lighting & Luminaires Architectural Lighting

Specifications

Cable Cable 0.25 m with connector 3-pole
CE mark Yes
Dimmable Yes
ENEC mark ENEC mark
Connection Push-in connector 3-pole
Optic type Wide beam
Inrush time 0.1 ms
Input Voltage 220 to 240 V
Glow-wire test Temperature 650 °C, duration 30 s
Inrush current 3.5 A
Optic material Polycarbonate
Driver included Yes
Housing material Aluminium die-cast
Control interface Phase-cut dim
Fixation material Steel
Maximum dim level 10% (depends on dimmer, ELV)
Reflector material -
Initial chromaticity (0.43, 0.40) SDCM <lt/>5
Constant light output No
Luminous flux tolerance +/-10%
Light source replaceable Yes
Optical cover/lens finish -
Unified Glare Rating (CEN) 24
Optical cover/lens material Polycarbonate
Colour rendering index (CRI) <gt/>80
Average CLO power consumption - W
Suitable for random switching No
Correlated Colour Temperature (Nom) 3000 K
