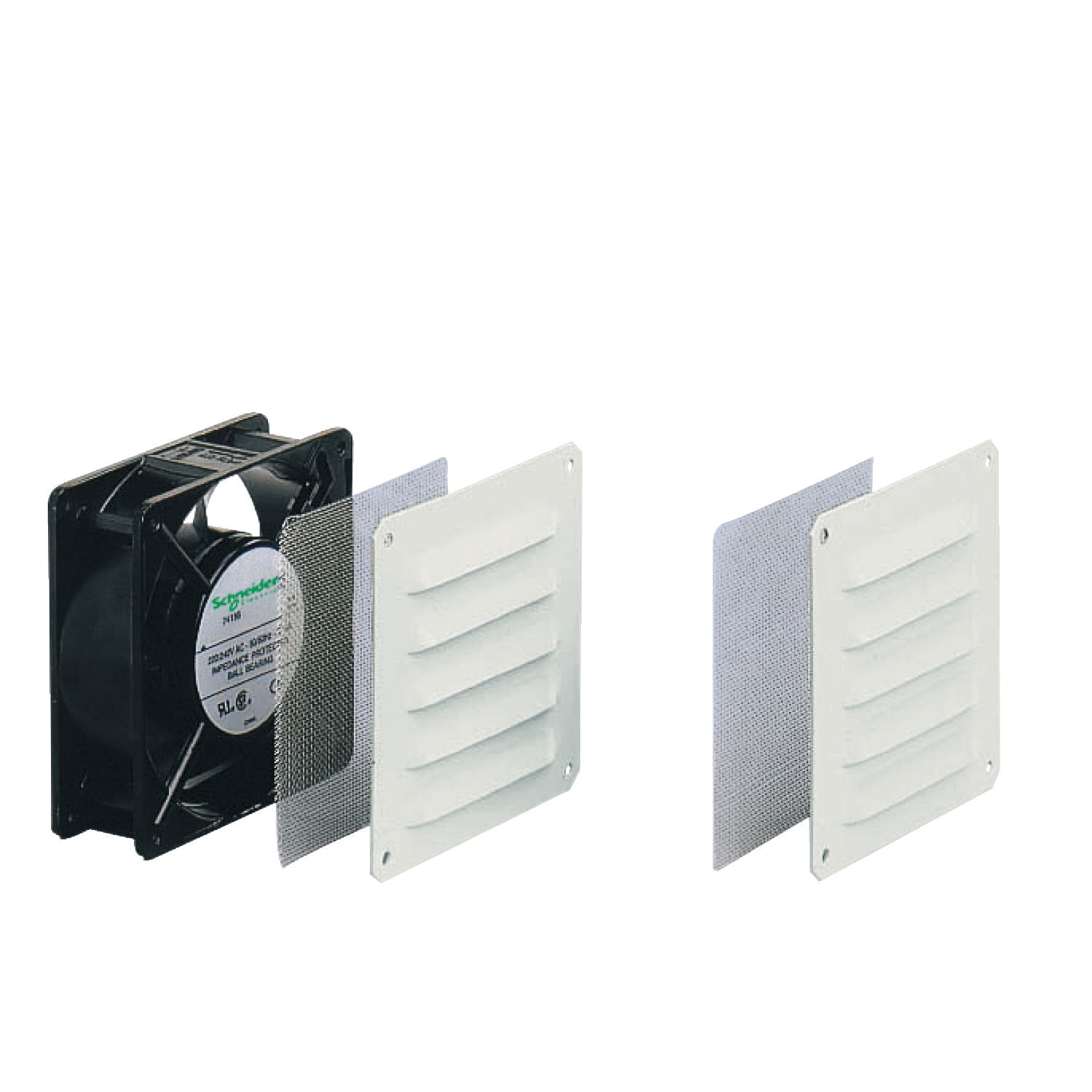

Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters

Link copied
SKU
EAN
GTIN
MPN

Climasys forced vent. 54 m3/h, 230V, 2 metal grilles and 2 anti-insect filters by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £81.05 to £81.86 excl. VAT. Voltimum+ members earn 10 points per unit.

This product is a fan designed to provide reliable and efficient cooling It is made of steel for the outlet grille and stainless steel 304L for the filter It has an IP33 degree of protection and a power cord for input voltage of 230 V 50/60 Hz The fan has a free flow rate of 170 m3/h without filter or grille, and an overall flow rate of 54 m3/h at 50 Hz It comes with two anti-insect filters and two metal louvres It is available in grey (RAL 7035) color and has a cut-out dimension of 96 x 96 mm This fan also comes with an anti-insect filter included Power cable included. 2 protective grilles on the front and rear surfaces. Protection IP33.

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 81.05 - £ 81.86 Excl. VAT

Specifications

Depth 38 mm
Width 120 mm
Colour Grey
Height 120 mm
RAL-number 7035
EMC-version no
Rated power 18 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP33
Operating voltage AC 60 Hz
Degree of protection (NEMA) Other
Suitable for 19 inch rack mounting no

Documents

Declaration of Conformity (Sustainability)

NSYCVF54M230MM2 REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Brochure

ClimaSys Thermal Management System Brochure

Open

Declaration of Conformity (Sustainability)

NSYCVF54M230MM2 EU RoHS Directive

Open

Declaration of conformity

Declaration of conformity UE Climasys CVF_V03-EN

Open

Environmental Disclosure

PEP-ClimaSys CV - Filterfan

Open
