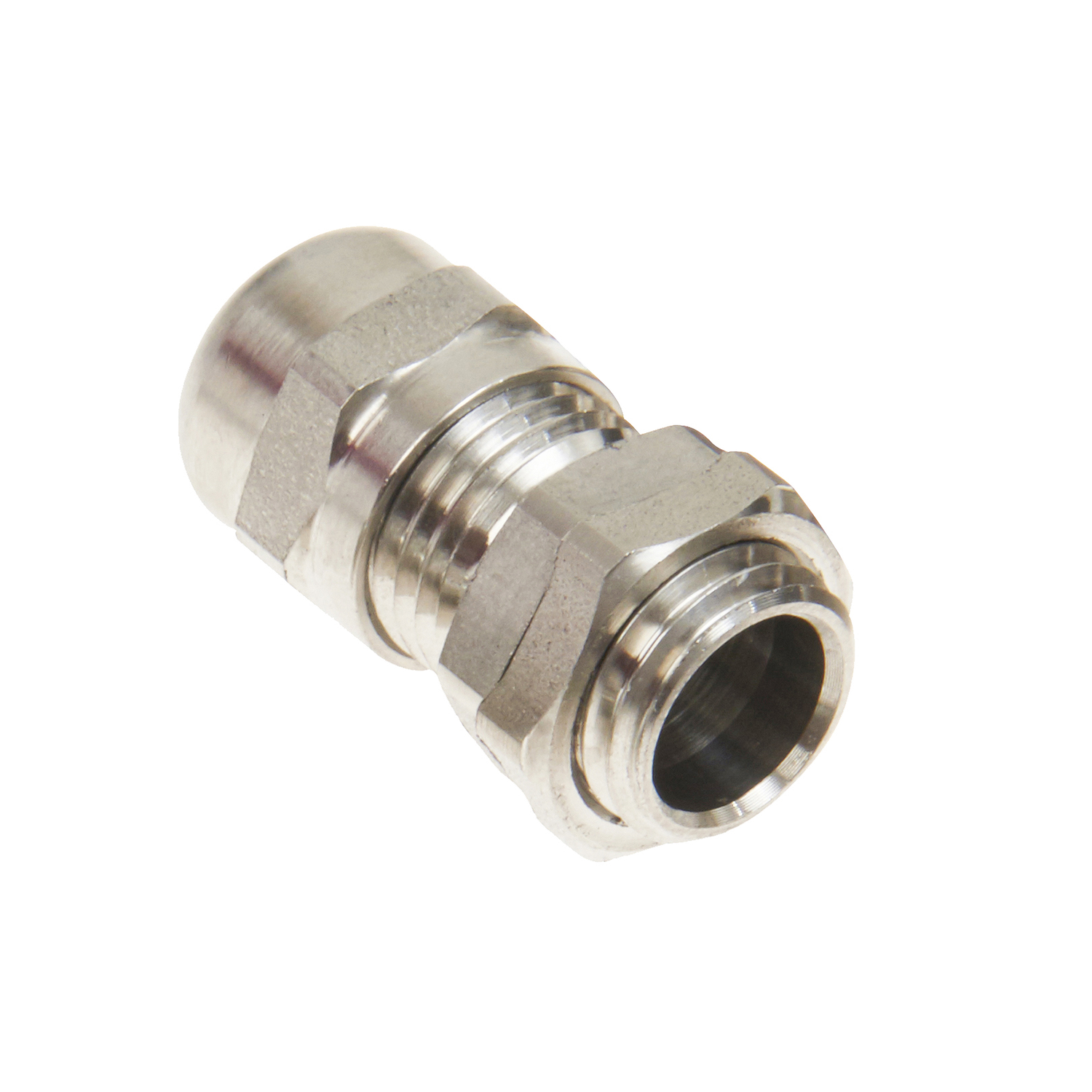

Set of cable gland + nut stainless steel M12 AISI316L, IP68, UL approved
Set of cable gland + nut stainless steel M12 AISI316L, IP68, UL approved
Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures The product is made of CR (chloroprene) seal and stainless steel AISI 316L body The height is 28mm This gland has a thread size of M12 and allows you to mount a cable into a pre-drilled hole The set contains 1 cable gland, 1 lock nut and 1 seal The cable gland is to be mounted on enclosure bottom and enclosure top Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments Flame resistance V2 conforming to UL 94 Ambient air temperature for operation -20-100 °C permanent and -40-150 °C intermittent Conforms with VDE certification
Product identifiers
SKU: NSYCGX12H
EAN: 3606481360274
GTIN: 3606481360274
MPN: NSYCGX12H
Loyalty points:
1
Price: £ 58.00 Excl. VAT
Categories
ETIM group
Specifications
| Type | Straight |
| Model | Cable screw gland |
| Width | - |
| Height | 28 mm |
| EFSE0006 | - |
| Material | Steel |
| Thickness | - |
| Thread type | Metric |
Documents
Declaration of Conformity (Sustainability)
NSYCGX12H REACh Regulation
Product data sheet
Catalog
Universal Enclosures 2026 - Catalog (English)
Declaration of Conformity (Sustainability)
NSYCGX12H EU RoHS Directive
Declaration of conformity
DEC_UE_SPACIAL_NSYCGX
CAD
CAD
CAD
