"Cable entry membrane, PanelSeT, PanelSet, type FL21 with 35 entrances IP66"

"Cable entry membrane, PanelSeT, PanelSet, type FL21 with 35 entrances IP66" by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade price £42.09 excl. VAT. Voltimum+ members earn 5 points per unit.

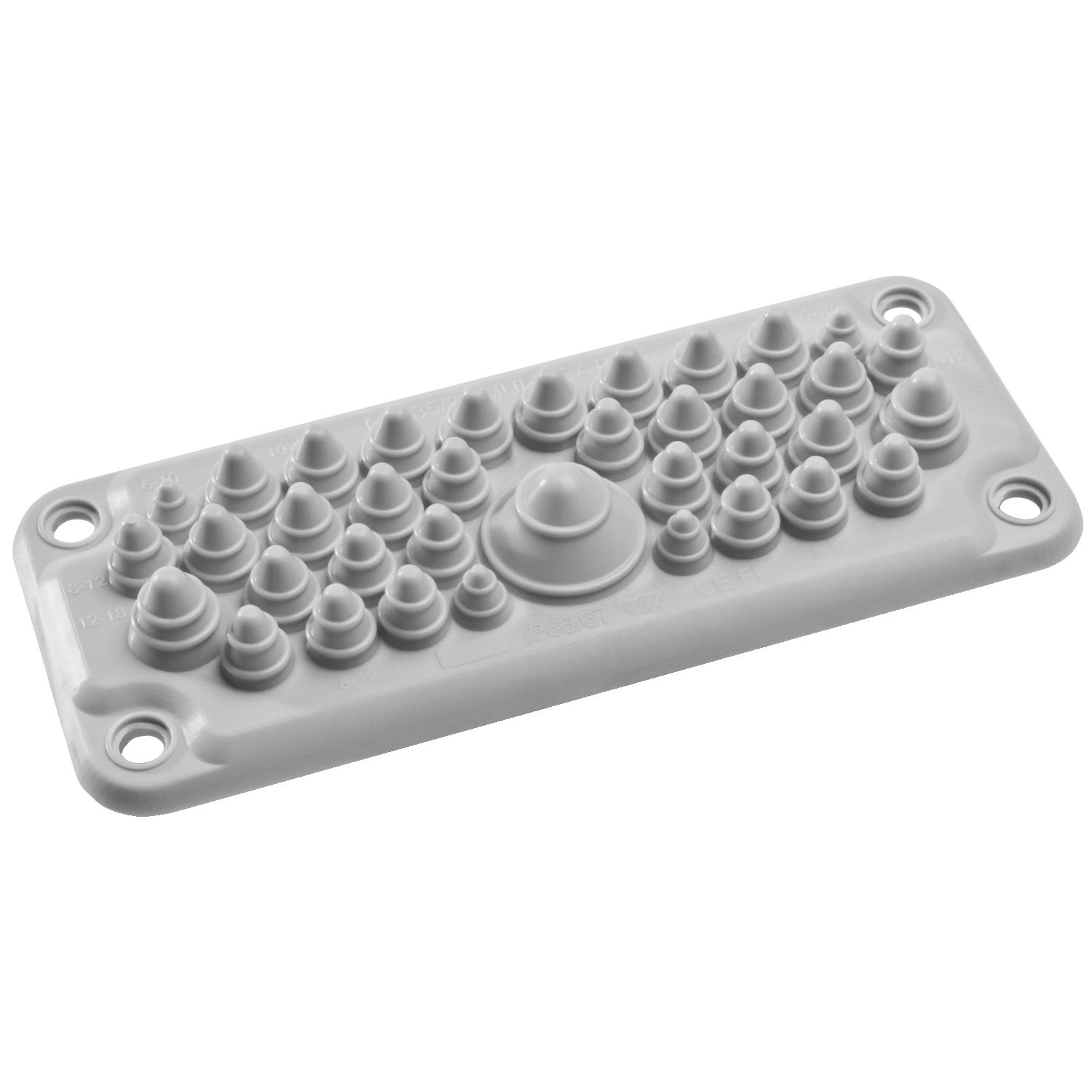

"This is a soft membrane cable entry type FL21, designed for electrical enclosures, featuring 37 cable entry points." "The product is made of TPE (thermoplastic elastomer). It is designed to be installed on the cable gland plate adapter or directly on enclosure" The external height,width and depth are 40mm, 194mm and 88mm respectively. The product contains a membrane and the fixing elements. It´s color is grey RAL7035. The operational temperature range covers -40° to +100 °C. It meets the V0 flame retardance standard according to UL 94. Additionally, it has an IP66 rating for ingress protection. "This product is qualified as a green premium, with minimal use of hazardous substances."

Product identifiers

SKU: NSYAECPFLT35
EAN: 3606480169045
GTIN: 3606480169045
MPN: NSYAECPFLT35

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 42.09 Excl. VAT

Specifications

Type Straight
Model Pipe
Width 214 mm
Height 40 mm
EFSE0006 -
Material Plastic
Thickness -
Thread type Metric
Surface protection Untreated
Degree of protection (NEMA) Other
Suitable for nominal thread metric/PG

Documents

Deeplink product page

Open

Product data sheet

Open

Catalogue

Universal Enclosures / Cable Entries / Selection Guide

Open

Environmental compliance declaration

NSYAECPFLT35 EU RoHS Declaration

Open

Environmental disclosure

PanelSeT S3D - Steel Wall Mounting Enclosure

Open
