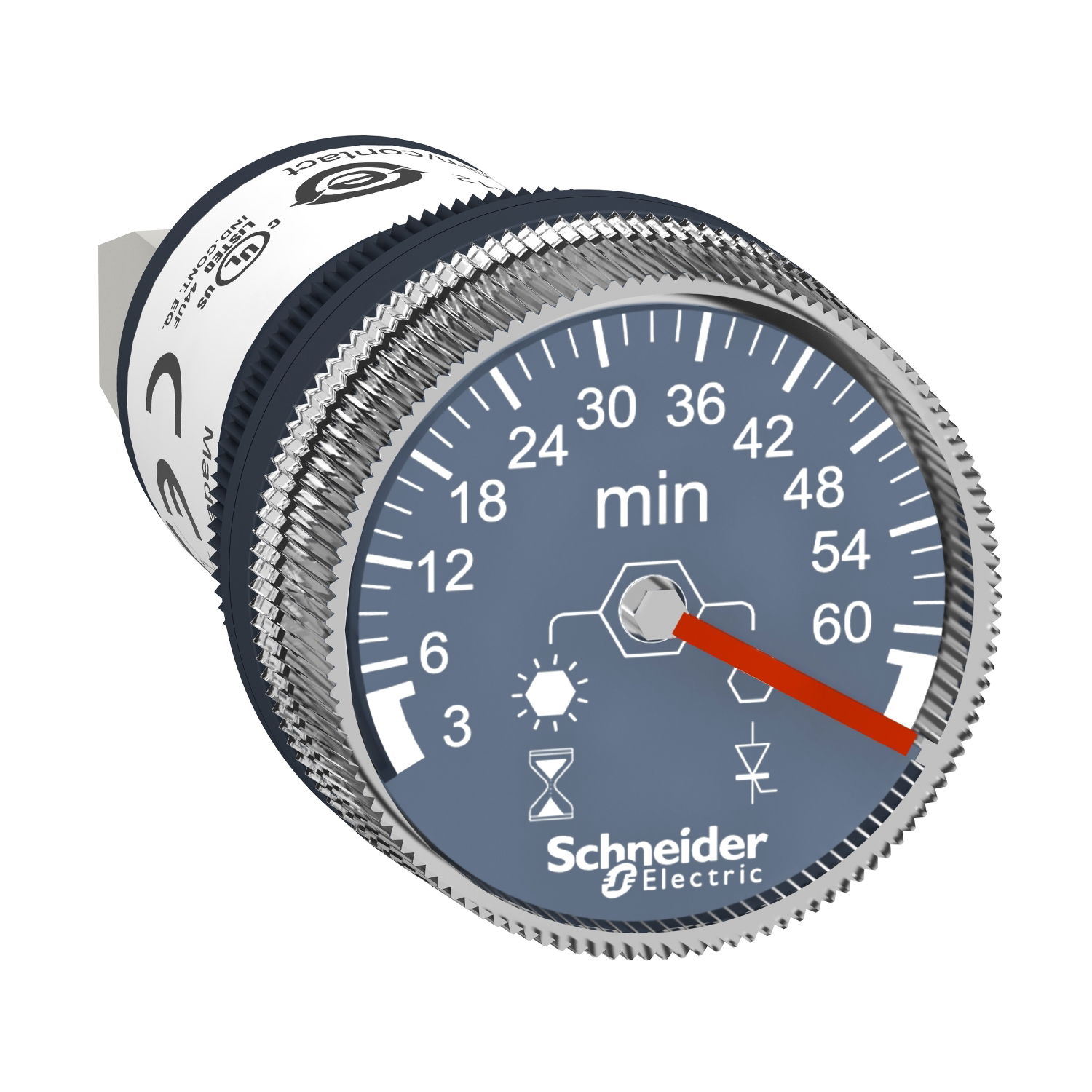

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 2 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 3 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 4 of 10

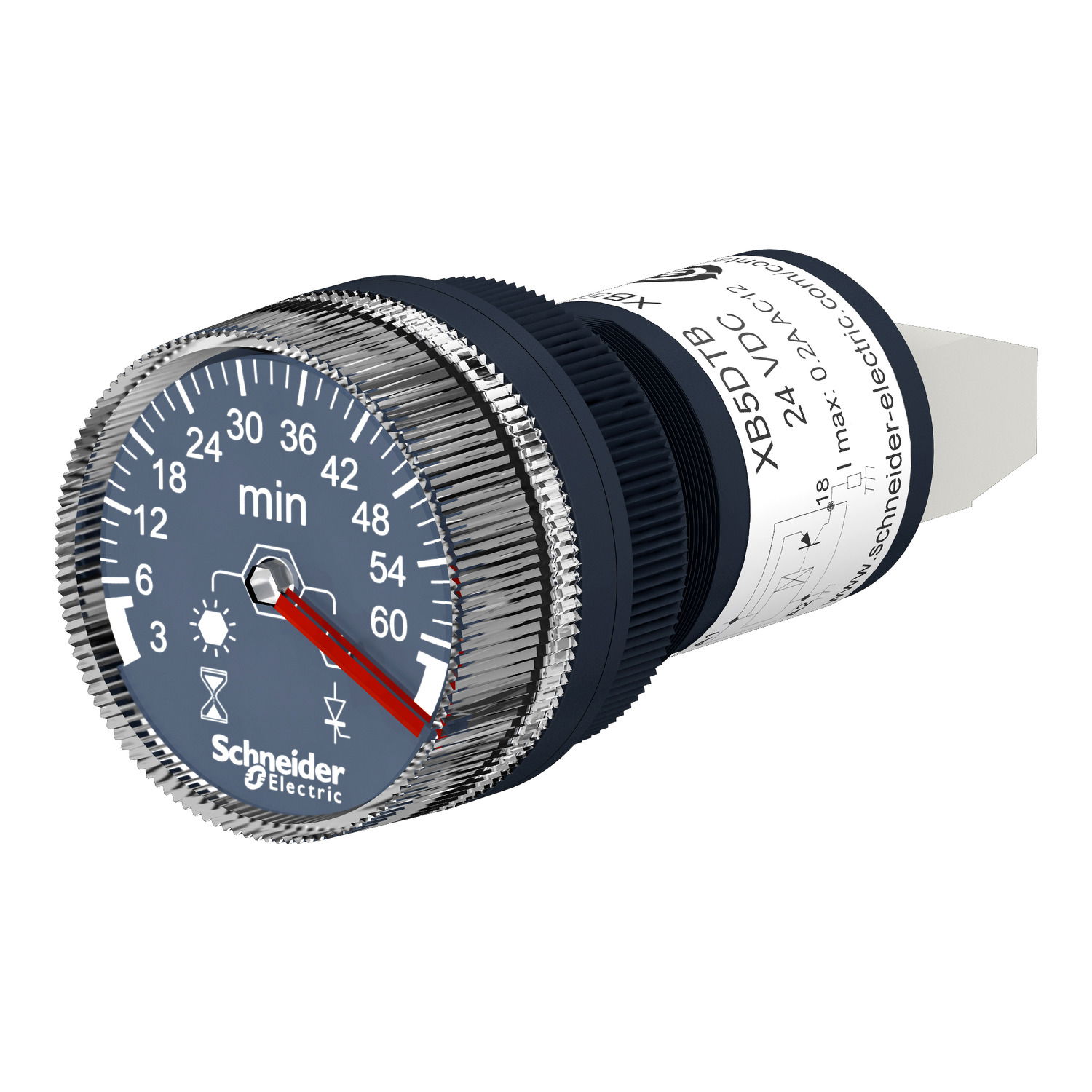

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 5 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 6 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 7 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 8 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 9 of 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC – Image 10 of 10

1 / 10

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC

Name: Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC
Brand: Schneider Electric
SKU: XB5DTGM5
Availability: InStock

Harmony XB5, Panel mounted timer monofunction, plastic, Ø22, time delay 3...60 min, 100…240 V AC/DC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £122.85 to £124.08 excl. VAT. Voltimum+ members earn 15 points per unit.

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 minutes and is supplied with a 100V to 240V AC/DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Product identifiers

SKU: XB5DTGM5

EAN: 3606481205537

GTIN: 3606481205537

MPN: XB5DTGM5

Loyalty points: 15

Price range: £ 122.85 - £ 124.08 Excl. VAT

Specifications

Depth	29 mm
Width	29 mm
Height	62 mm
Time range
Nominal current	0.4 A
Material contact	Other
Function star-delta	no
Complete with socket	no
Operating voltage DC
Max. starting current	10 A
Function pulse shaping	no
Degree of protection (IP)	IP65
Remote operation possible	no
With semiconductor output	yes
Material of contact insert	Other
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Suitable as remote control	no
Voltage type for actuating	AC/DC
Material of contact surface	Other
Suitable for front mounting	yes
Type of electric connection	Screw connection
Function delay-on energization	yes
Rated control supply voltage DC
Voltage type (operating voltage)	AC/DC
Function delay on de-energization	yes
Pluggable on auxiliary contact block	no
Outputs, reversible delayed/undelayed	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Function floating contact on energization	no
Function floating contact on de-energization	no
Clock function, starting with pause, variable	no
Clock function, starting with pulse, variable	no
Suitable for DIN rail (top hat rail) mounting	no
Number of outputs, delayed, change-over contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Function flashing, starting with pause, fixed time	yes
Function flashing, starting with pulse, fixed time	no
Relay technology category according to IEC 61810-7	-
Number of outputs, delayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, normally closed contact	0

Documents

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet
