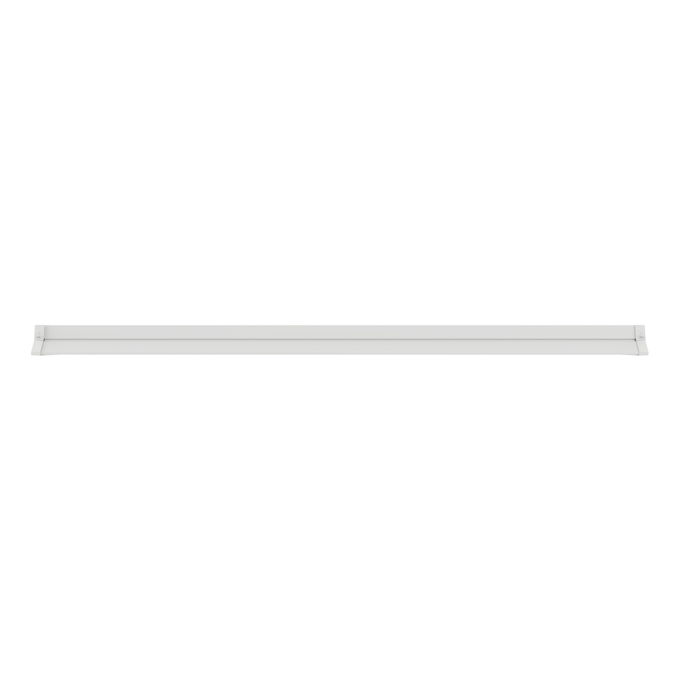

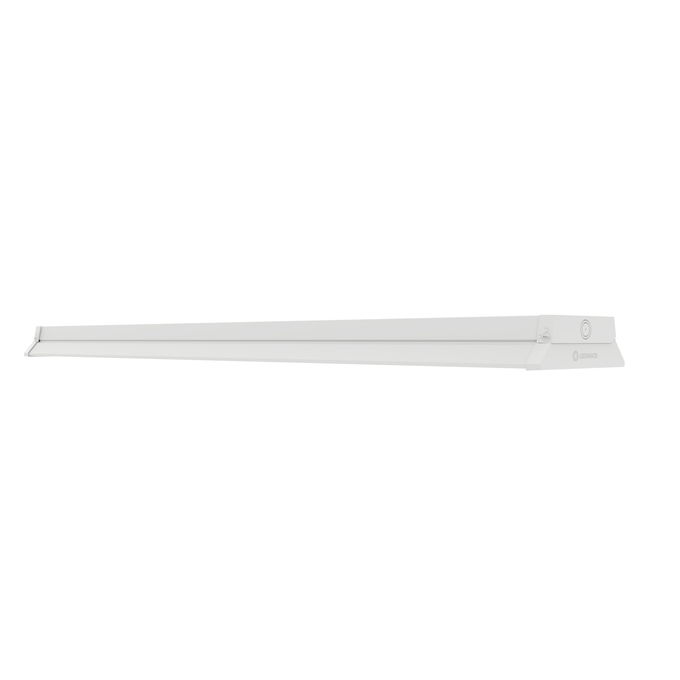

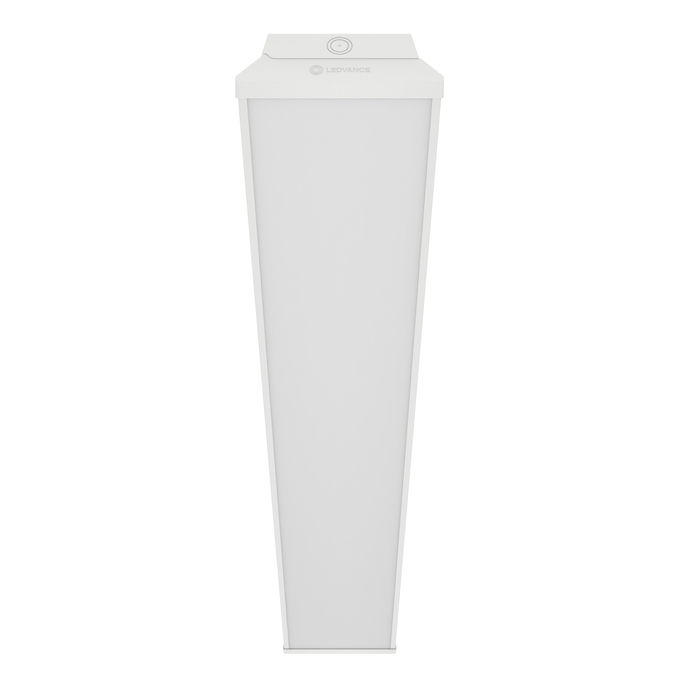

LN SF CBO DA 1500 V 42W 83040 U19

Product benefits

• Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
• Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
• Replacement of conventional T8 luminaires with up to 6200 lm
• Good glare reduction (UGR < 19)

Areas of application

• Direct replacement for luminaires with fluorescent lamps
• Offices, education, public buildings
• Indoor applications

Product features

• IoT-ready luminaire with DALI-2 technology
• Surface mounted luminaires with direct light emission
• Available in 3 different lengths: 1200 mm, 1500 mm and 1800 mm
• Push wire terminal for tool-free connection
• Lifetime (L80/B10): up to 70,000 h (at 25 °C)
• High luminous efficacy: up to 125 lm/W

Equipment / Accessories

• Plug & Upgrade high frequency sensor and emergency kit separately available
• Mounting screws and dowels included

Safety advice

• Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
