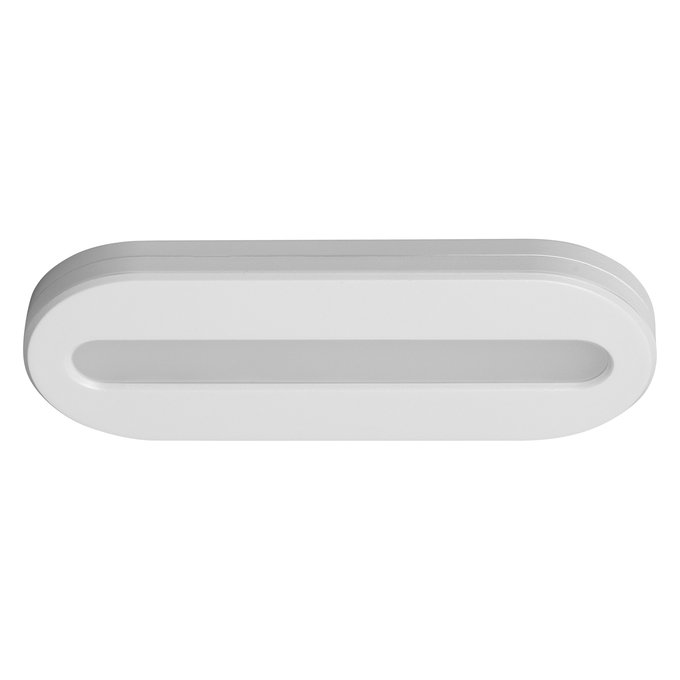

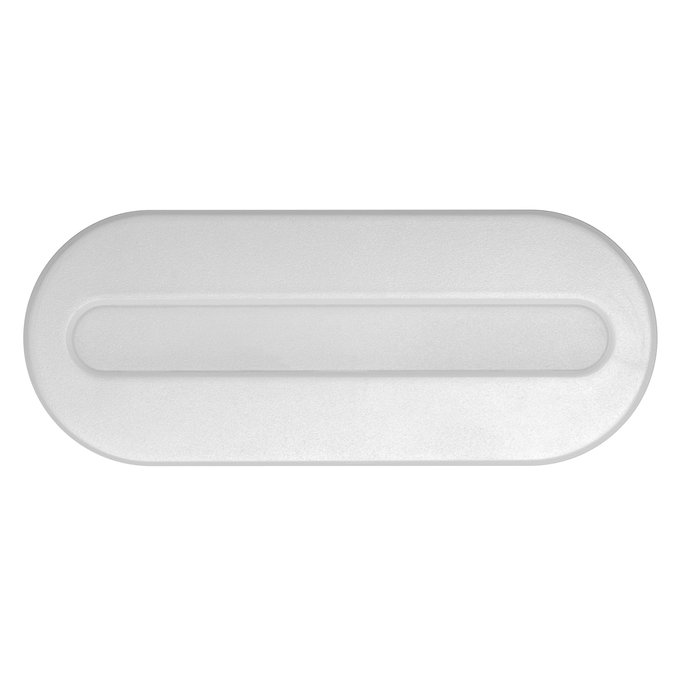

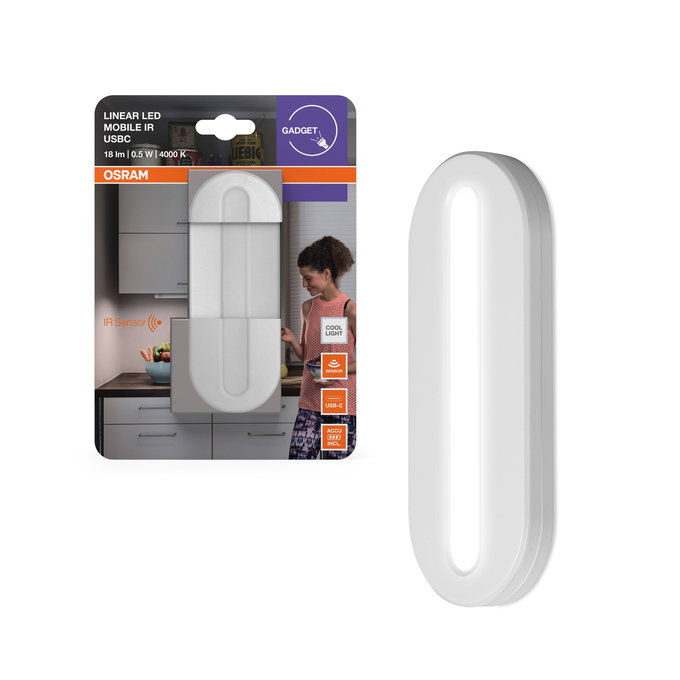

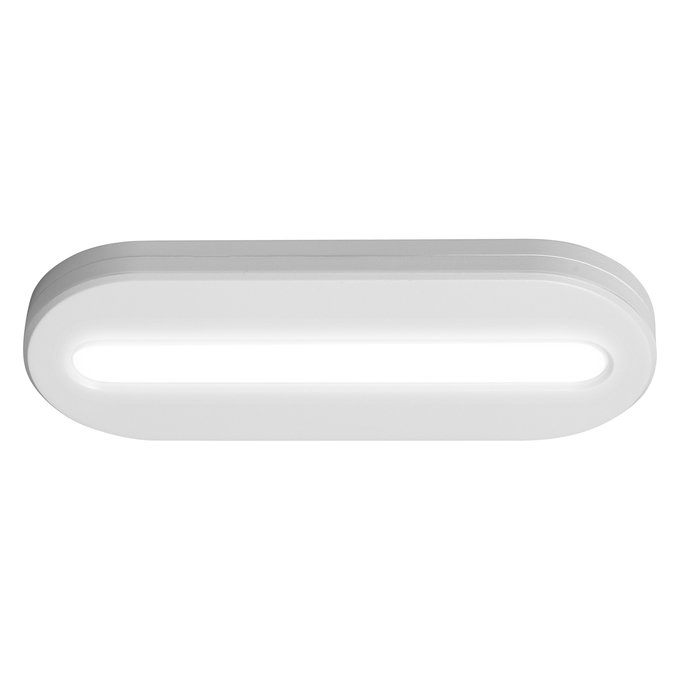

Linear LED Mobile IR USB White

Link copied
SKU
EAN
GTIN
MPN
Product benefits
  • Can easily be moved to where light is needed thanks to battery operation
  • Easily removeable thanks to the magnetic fixing
Areas of application
  • Kitchens
  • Where light is required but a socket is not available
Product features
  • Integrated rechargeable lithium battery which can be charged via USB cable
  • 2 operating modes selectable
  • Operating mode 1: Switch-on by movement in front of sensor
  • Operating mode 2: Switch-on by opening of drawer or cabinet door
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

Specifications

Electrical data

Nominal wattage 0.50 W
Nominal voltage 5 V
Nominal current 120.000 mA
Protection class III
Operating mode Battery

Photometrical data

Luminous flux 18 lm
Luminous efficacy 40 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Standard deviation of color matching 6 sdcm
