Flex Connectors have released a new scene setting panel to complement the flex7 ZoneLite, part of our extensive lighting controls range. The wall-mounted panel allows you to set up 4 lighting scenes, and instantly recall them with the simple press of a button. If needed, scenes can be further adjusted while in use, by dimming up/down individual channels, to create a tailor made lighting scene.
The flex7 ZoneLite provides power to your lighting layout, with integrated control of luminaires. Type T has been designed for use in schools and education environments, and Type G for use in offices and commercial environments. Configuration A on the ZoneLite Type G, and configuration 9 on The ZoneLite Type T can both be used in conjunction with the flex7 Scene Setting Panel.
In line with the rest of the flex7 lighting connection and lighting controls range, the scene setting panel utilises simple plug-in connection. It simply plugs into a sensor head using a standard RJ12 lead.

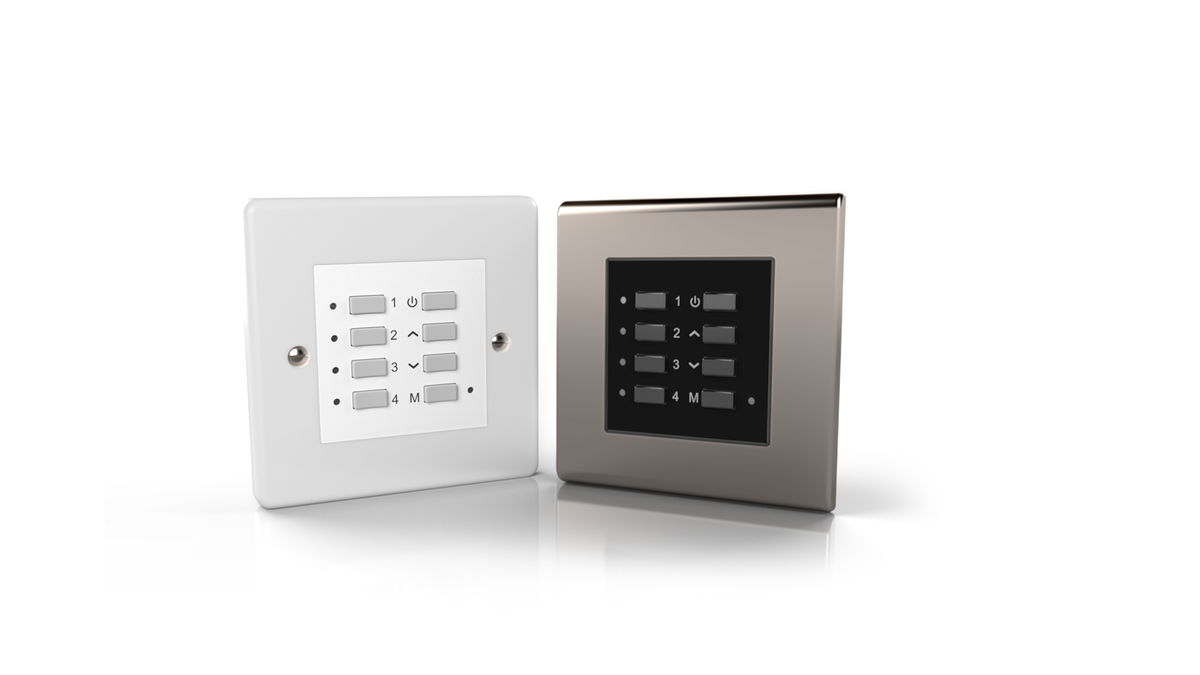

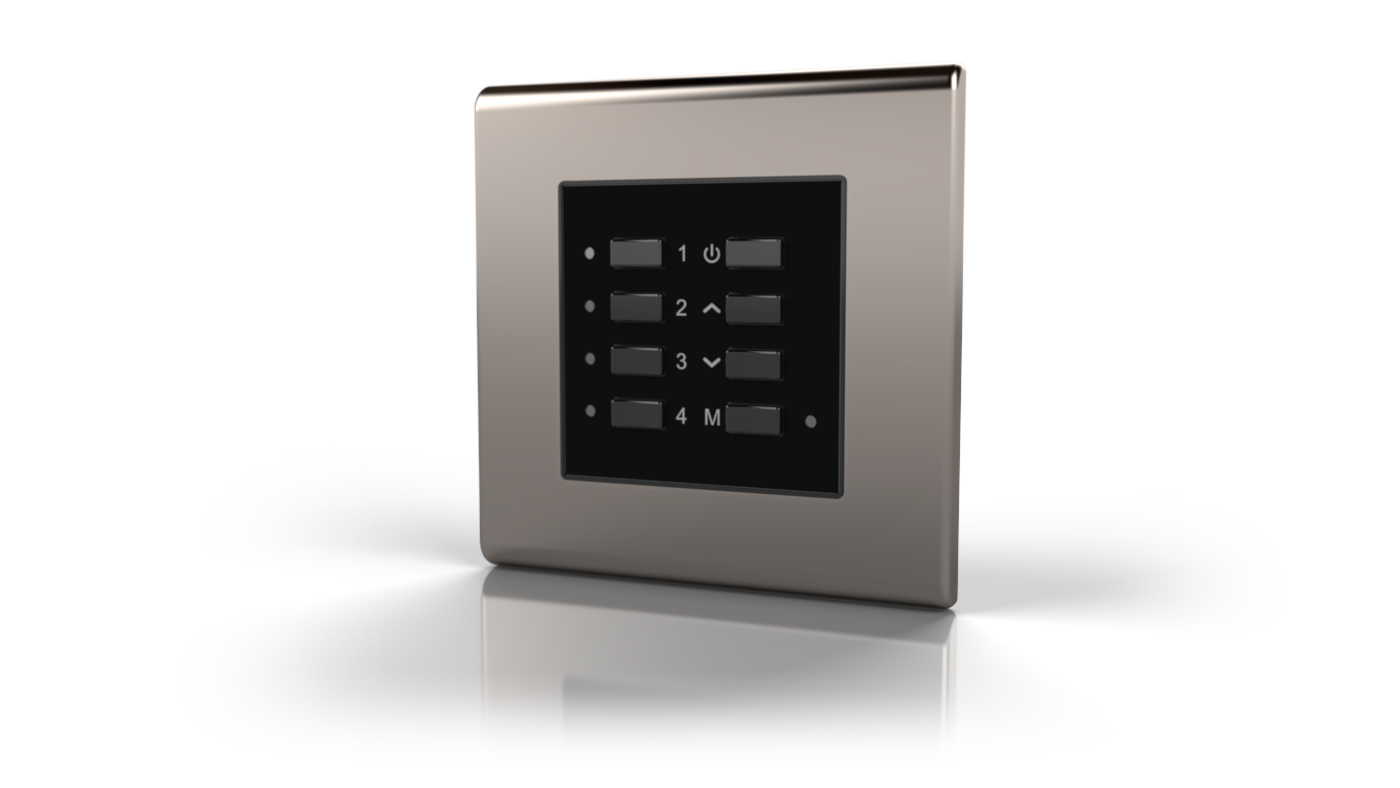

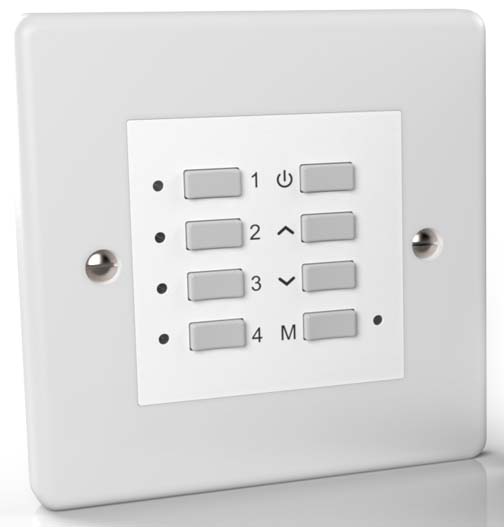

Available in black or white, the panel can be supplied with a white plastic, or brushed steel faceplate. Alternatively it will clip into any manufacturer’s UK single gang 50mm x 50mm Euro Module faceplate. It is fixed to the wall with a 30mm (or deeper) backbox.
Multiple Scene Setting Panels can be daisy chained to a single ZoneLite controller. They can also be used with flex7 PIR Sensor Heads if absence or occupancy control is required.
