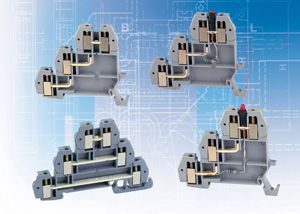

Three-stage DIN-rail terminal blocks from Elkay Electrical

The three-stage terminal blocks with screw terminals offer a variety of wiring configurations, LED indicators and have easy access for the conductor making wiring straightforward. They provide a large contact area for the conductor, due to the 'V' shape of the cable clamp, and are suitable for both single and multi-wire insertion. Connection capacity for rigid conductors ranges from 0.5mm² to 4mm² and flexible conductors from 0.5mm² to 2.5mm². The Morsettitalia DIN-rail system offers a practical, modular range of with a full choice of screw and screwless terminal blocks for the contractor and panel builder. They are extremely competitively priced, are light in weight, have a snap-on solid foot and are extremely easy to use. They come with a full range of accessories including end plates, covers, jumper bar sets and end brackets. All products within the range are designed for use with standard symmetrical DIN rails, resulting in a more compact terminal than normal. The products are approved by leading international testing organisations, including CSA, UL, VDE, IMQ, SEV and KEMA. The terminal blocks are made from halogen-free, self-extinguishing Nylon 66.6 and manufactured in accordance with EN ISO 9001: 2000.
