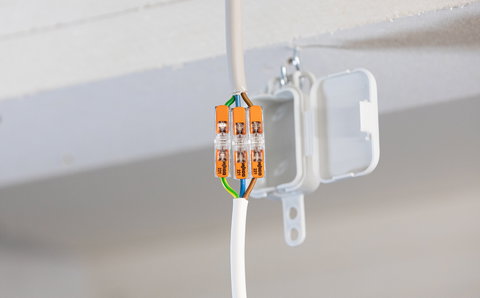

WAGO , the connection technology specialist, will launch their new 221 series Inline connector in January 2022 providing simple, quick & reliable connection of solid, stranded and fine stranded conductors in a straight line.
The WAGO Inline Lever Connector combines all the familiar advantages of the 221 Series Splicing Connectors in a slim design. It allows universal conductor connection using lever technology that removes the need for tools and provides a visibly secure conductor contact. Rated at 32A, 450V makes them ideal for a variety of applications such as lighting, extending cables, cable repair, distribution boxes and much more. The compact dimensions and versatility also make them perfect for connecting cables in tight spaces such as behind switches or sockets.
A full range of accessories are available including a Maintenance Free junction box and a range of mounting adapters in screw, snap & DIN rail versions that give users the freedom to create connections to suit their individual needs.
Benefits include:
•Connecting solid, stranded and fine-stranded conductors from 0.2 to 4mm² in the feedthrough direction
•Slim design minimizes dimensions for installation in tight spaces
•Tool-free connection and disconnection thanks to convenient lever technology
•Adapters for custom multiple installations.
• 32A, 450V rated
• Maintenance free to BS5733 when used with WAGOBOX Light enclosure and adapter
The connectors are UKCA, CE & ENEC accredited and fully compliant with 18th edition wiring regulations and whilst speed and simplicity are important, WAGO also wants to make work safer and more reliable. This is achieved by easy-to-read technical markings, a transparent enclosure enabling quick visual inspection of conductor termination, and a test point for continuity testing once installed.
