Technical Data
Main Features
Nominal current
10 A
Width
17.5 mm
Height
90 mm
Depth
55 mm
Max. starting current
-
With detachable clamps
no
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
With forced-guided contacts
no
Type of switch contact
Single contact
Complete with socket
yes
Type of electric connection
Spring clamp connection
Rated control supply voltage AC 50 Hz
250 - 250 V
Rated control supply voltage AC 60 Hz
250 - 250 V
Rated control supply voltage DC
Material of contact surface
-
Voltage type (operating voltage)
-
Degree of protection (IP)
IP20
With LED indication
no
Material contact
-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Operating voltage DC
Voltage type for actuating
-
Number of contacts as normally closed contact
Number of contacts as normally open contact
Number of contacts as change-over contact
1
Material of contact insert
-
Relay technology category according to IEC 61810-7
-
Downloads

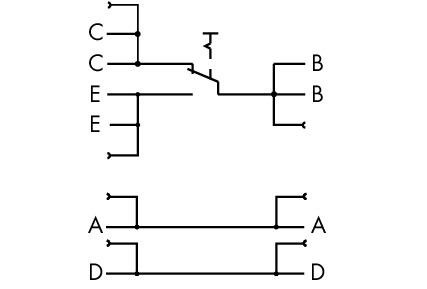

Switching module;with changeover rocker switch;Switching voltage: 250 VAC
Product details
SKU Code: 789-800
EAN Code: 4017332792554
Minimum order: 10
Available for Back Order (1 seller)
Availability
Back Order
£37.31
Distributor | Availability | Price | |
---|---|---|---|
![]() |
Back Order | £37.31 Ex. VAT |
Price:
£37.31 ex. vat
