Technical Data
Main Features
Width
30 mm
Height
20 mm
Depth
152 mm
Housing colour
Other
Rated voltage
32 V
Housing material
Plastic
Operating temperature
-25 - 80 °C
With potential separation
no
Operating voltage
10 - 30 V
Explosion safety category for gas
None
Explosion safety category for dust
None
Material of contact surface
Gold
Max. current carrying capacity per I/O signal
2 A
Max. current carrying capacity per socket
6 A
Max. total current
-
Degree of protection (IP)
IP68
With LED indication
yes
Pollution degree
3
Connection for NPN-sensors
no
Number of channels per connector slot
8
Number of sensor-/actuator-slots
8
Type of branches for sensor-/actuator cables
M8
Thread sleeves sensor/actuator slots
M8
Length of the preassembled cable
5 m
Cable length configurable
yes
Cable outer diameter for cable gland
Diameter contact female
-
Number of poles sensor/actuator slots
3
Fix cable version suitable for cable guide chain
yes
Type of connector for trunk line
-
Material insulation body
Polyamide (PA)
Connectable conductor cross section
Material contact body
Brass
Degree of protection (NEMA)
-
Downloads

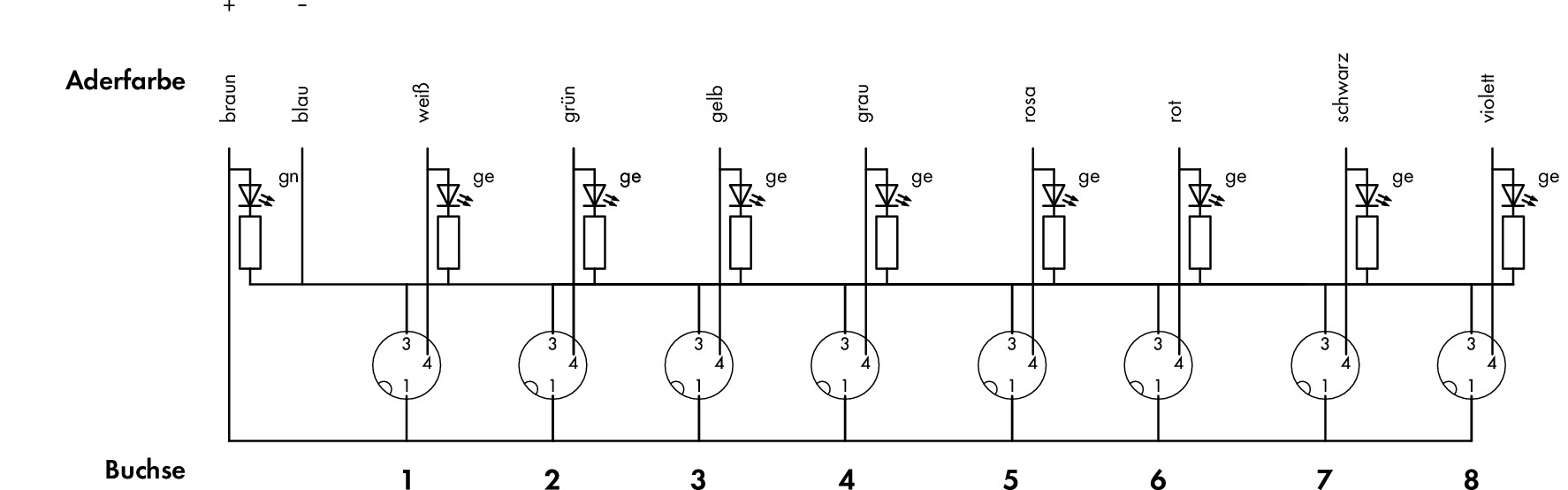

M8 sensor/actuator box;8-way;3-pole
Product details
SKU Code: 757-483/000-005
EAN Code: 4044918978637
Minimum order: 1
Available for Back Order (2 sellers)
Availability
Back Order
£125.64
Back Order Manufacturer lead time of 8 weeks.
£204.27
Distributor | Availability | Price | |
---|---|---|---|
![]() |
Back Order | £125.64 Ex. VAT | |
![]() |
Back Order Manufacturer lead time of 8 weeks. | £204.27 Ex. VAT |
Price Range:
£125.64 > £204.27 ex. vat
