Technical Data
Main Features
Width
30 mm
Height
20 mm
Depth
123 mm
Housing colour
Other
Rated voltage
32 V
Housing material
Plastic
Operating temperature
-25 - 80 °C
With potential separation
no
Operating voltage
10 - 30 V
Explosion safety category for gas
None
Explosion safety category for dust
None
Material of contact surface
Gold
Max. current carrying capacity per I/O signal
2 A
Max. current carrying capacity per socket
6 A
Max. total current
-
Degree of protection (IP)
IP68
With LED indication
yes
Pollution degree
3
Connection for NPN-sensors
no
Number of channels per connector slot
6
Number of sensor-/actuator-slots
6
Type of branches for sensor-/actuator cables
M8
Thread sleeves sensor/actuator slots
M8
Length of the preassembled cable
10 m
Cable length configurable
yes
Cable outer diameter for cable gland
Diameter contact female
-
Number of poles sensor/actuator slots
3
Fix cable version suitable for cable guide chain
yes
Type of connector for trunk line
-
Material insulation body
Polyamide (PA)
Connectable conductor cross section
Material contact body
Brass
Degree of protection (NEMA)
-
Downloads

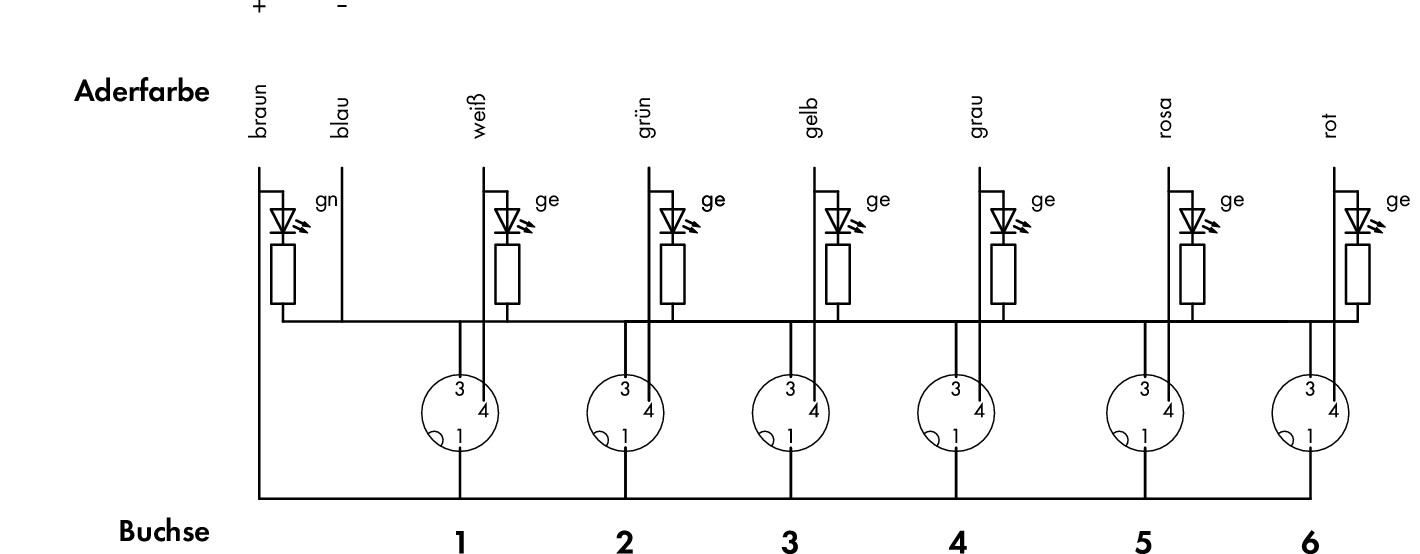

M8 sensor/actuator box;6-way;3-pole
Product details
SKU Code: 757-463/000-010
EAN Code: 4044918978620
Minimum order: 1
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
