Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Blue
Width
6 mm
Height
77 mm
Depth
43.5 mm
Rated voltage
400 V
Number of clamp positions
2
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Connecting plate required
yes
Suitable for N-busbar
3x10 mm
Type of electric connection
Spring clamp connection
Connectable conductor cross section solid-core
0.08 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 4 mm²
Connectable conductor cross section multi-wired
0.08 - 4 mm²
Material insulation body
Thermoplastic
Rated current In
32 A
Downloads

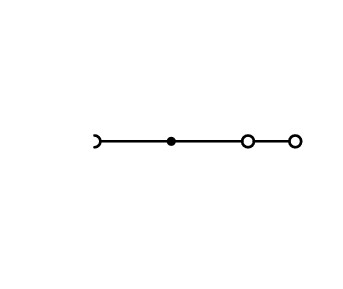

2-conductor N-disconnect terminal block;4 mm²;CAGE CLAMP®;blue
Product details
SKU Code: 781-643
EAN Code: 4044918808088
Minimum order: 50
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
