Mounting method

Snap mounting support rail

Width

6 mm

Height

94 mm

Depth

97.8 mm

Switching current

-

Number of channels

1

Power consumption

-

Switching power

-

Type of power supply

Other

Operating temperature

-25 - 70 °C

Switching voltage

-

Switching frequency

-

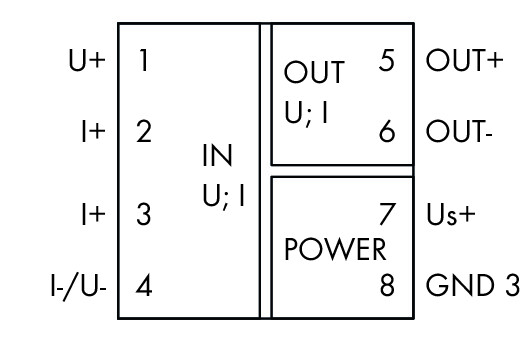

Type of electric connection

Spring clamp connection

Degree of protection (IP)

IP20

Number of output ranges +10 V ... -10 V

1

Number of output ranges +5 V ... -5 V

1

Number of output ranges 0 V ... 1 V

Number of output ranges 0 mA ... 10 mA

1

Number of output ranges 0 V ... 10 V

1

Number of output ranges 0 mV ... 100 mV

Number of output ranges 0 V ... 2 V

Number of output ranges 0 V ... 2.5 V

Number of output ranges 0 mA ... 20 mA

1

Number of output ranges 0 V ... 20 V

Number of output ranges 0 mV ... 200 mV

Number of output ranges 0 V ... 24 V

Number of output ranges 0 V ... 30 V

Number of output ranges 0 mV ... 300 mV

Number of output ranges 0 mA ... 5 mA

Number of output ranges 0 V ... 5 V

1

Number of output ranges 0 mV ... 500 mV

Number of output ranges 0 mV ... 60 mV

Number of output ranges -1 V ... +1 V

Number of output ranges 1 V ... 5 V

1

Number of output ranges -10 mA ... +10 mA

1

Number of output ranges -10 V ... +10 V

1

Number of output ranges 10 V ... 0 V

Number of output ranges 10 V ... 2 V

Number of output ranges -100 mV ... +100 mV

Number of output ranges -2 V ... +2 V

Number of output ranges 2 V ... 10 V

1

Number of output ranges -2.5 V ... +2.5 V

Number of output ranges -20 mA ... +20 mA

1

Number of output ranges -20 V ... +20 V

Number of output ranges 20 mA ... 0 mA

Number of output ranges 20 mA ... 4 mA

Number of output ranges -300 mV ... +300 mV

Number of output ranges 4 mA ... 20 mA

1

Number of output ranges -5 mA ... +5 mA

Number of output ranges -5 V ... +5 V

1

Number of output ranges 5 V ... 0 V

Number of output ranges 5 V ... 1 V

Number of output ranges -500 mV ... +500 mV

Number of output ranges -60 mV ... +60 mV

Number of input ranges +10 V ... -10 V

1

Number of input ranges +5 V ... -5 V

1

Number of input ranges 0 V ... 1 V

1

Number of input ranges 0 mA ... 10 mA

Number of input ranges 0 V ... 10 V

1

Number of input ranges 0 mV ... 100 mV

1

Number of input ranges 0 V ... 2 V

Number of input ranges 0 V ... 2.5 V

Number of input ranges 0 mA ... 20 mA

Number of input ranges 0 V ... 20 V

Number of input ranges 0 mV ... 200 mV

Number of input ranges 0 V ... 24 V

Number of input ranges 0 V ... 30 V

Number of input ranges 0 mV ... 300 mV

1

Number of input ranges 0 mA ... 5 mA

Number of input ranges 0 V ... 5 V

1

Number of input ranges 0 mV ... 500 mV

1

Number of input ranges 0 mV ... 60 mV

1

Number of input ranges -1 V ... +1 V

Number of input ranges 1 V ... 5 V

1

Number of input ranges -10 mA ... +10 mA

Number of input ranges -10 V ... +10 V

1

Number of input ranges 10 V ... 0 V

Number of input ranges 10 V ... 2 V

Number of input ranges -100 mV ... +100 mV

1

Number of input ranges -2 V ... +2 V

Number of input ranges 2 V ... 10 V

1

Number of input ranges -2.5 V ... +2.5 V

Number of input ranges -20 mA ... +20 mA

Number of input ranges -20 V ... +20 V

Number of input ranges 20 mA ... 0 mA

Number of input ranges 20 mA ... 4 mA

Number of input ranges -300 mV ... +300 mV

1

Number of input ranges 4 mA ... 20 mA

Number of input ranges -5 mA ... +5 mA

1

Number of input ranges -5 V ... +5 V

1

Number of input ranges 5 V ... 0 V

Number of input ranges 5 V ... 1 V

Number of input ranges -500 mV ... +500 mV

1

Number of input ranges -60 mV ... +60 mV

Rated operating frequency

100 - 5000 Hz

Rated supply voltage AC

Rated supply voltage DC

16.8 - 31.2 V

Load

600 - 1000 Ohm

Load influence

-

Inherently safe according to EN 60947-5-6 NAMUR

no

Galvanic separation between output to output

no

Galvanic separation between input and output

yes

Galvanic separation between inputs

yes

Galvanic separation between supply voltage and all other current circuits

yes

Construction type of device

Other

Malfunction message output

no

Temperature drift

0.01 %/K

SIL according to IEC 61508

-
