Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Green/yellow
Width
5.2 mm
Height
93.3 mm
Depth
81.3 mm
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
PEN function possible
no
Number of levels
3
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Downloads

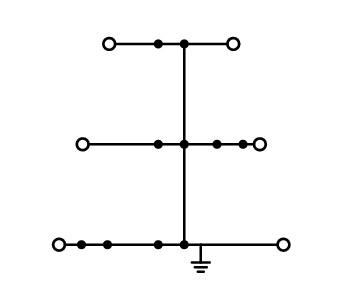

Triple-deck terminal block;6-conductor ground terminal block;2.5 mm²;green-yellow
Product details
SKU Code: 2002-3237
EAN Code: 4044918989718
Minimum order: 50
Some Availability (1 seller)
Availability
50 In Stock
£6.88
(unit price £0.13) Selling in packs of 50.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
50 In Stock | £6.88 Ex. VAT | (unit price £0.13) Selling in packs of 50. |
Price:
£6.88 ex. vat
