Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Other
Width
5.2 mm
Height
69.7 mm
Depth
51.7 mm
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
PEN function possible
yes
Number of levels
2
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Downloads

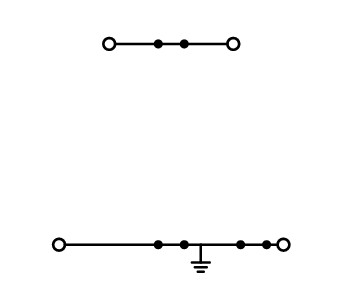

Double-deck terminal block;Ground conductor/through terminal block;2.5 mm²;gray
Product details
SKU Code: 2002-2217
EAN Code: 4044918691123
Minimum order: 50
Some Availability (1 seller)
Availability
1 In Stock
£184.33
(unit price £3.68) Selling in packs of 50.
Distributor | Availability | Price | |
---|---|---|---|
![]() |
1 In Stock | £184.33 Ex. VAT | (unit price £3.68) Selling in packs of 50. |
Price:
£184.33 ex. vat
