Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Green/yellow
Width
5.2 mm
Height
69.7 mm
Depth
51.7 mm
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
PEN function possible
no
Number of levels
2
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Downloads

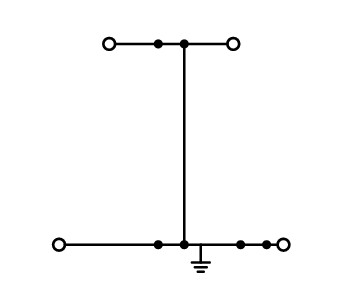

Double-deck terminal block;4-conductor ground terminal block;2.5 mm²;green-yellow
Product details
SKU Code: 2002-2207
EAN Code: 4044918691147
Minimum order: 50
Good Availability (2 sellers)
Availability
80 In Stock
£4.54
(unit price £0.45) Selling in packs of 10.
50 In Stock
£4.94
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
80 In Stock | £4.54 Ex. VAT | (unit price £0.45) Selling in packs of 10. |
|
|
50 In Stock | £4.94 Ex. VAT |
Price Range:
£4.54 > £4.94 ex. vat
