Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
White
Width
4 mm
Height
73 mm
Depth
27 mm
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
PEN function possible
yes
Number of levels
1
Number of clamp positions per level
4
Connectable conductor cross section solid-core
0.08 - 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 1.5 mm²
Connectable conductor cross section multi-wired
0.08 - 1.5 mm²
Material insulation body
Thermoplastic
Downloads

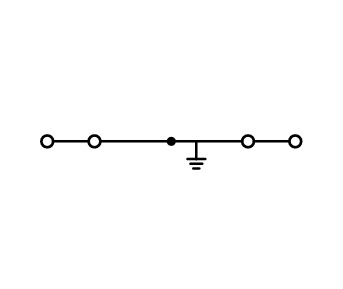

4-conductor shield terminal block;1.5 mm²;center marking;white
Product details
SKU Code: 279-838
EAN Code: 4045454084462
Minimum order: 100
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
