Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Green/yellow
Width
5 mm
Height
44.5 mm
Depth
27.5 mm
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
PEN function possible
yes
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 4 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Downloads

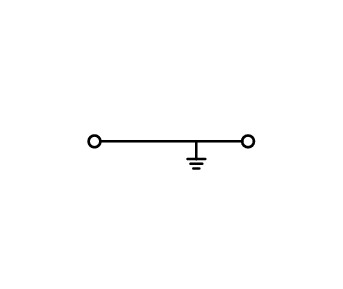

2-conductor ground terminal block;2.5 mm²;lateral marker slots;green-yellow
Product details
SKU Code: 870-907
EAN Code: 4044918649728
Minimum order: 100
Some Availability (1 seller)
Availability
Out of Stock
£3.06
(unit price £0.30) Selling in packs of 10.
136 In Stock
£3.36
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
Out of Stock | £3.06 Ex. VAT | (unit price £0.30) Selling in packs of 10. |
|
|
136 In Stock | £3.36 Ex. VAT |
Price:
£3.36 ex. vat
