Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
6.2 mm
Height
76.8 mm
Depth
57.6 mm
Rated voltage
250 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
no
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication
Number of levels
1
Voltage type for defect indication
-
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
6.3 A
Downloads

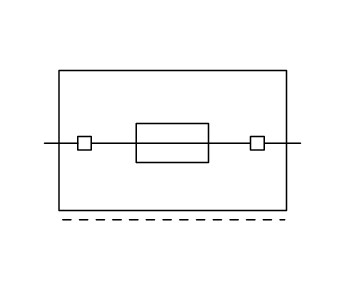

3-conductor fuse terminal block;with pivoting fuse holder;and end plate;gray
Product details
SKU Code: 2002-1711
EAN Code: 4050821707608
Minimum order: 50
Some Availability (2 sellers)
Availability
Back Order FREE delivery for orders over £50.00
£230.79
(unit price £4.61) Selling in packs of 50.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
Back Order FREE delivery for orders over £50.00 | £230.79 Ex. VAT | (unit price £4.61) Selling in packs of 50. |
Price:
£230.79 ex. vat
Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
6.2 mm
Height
76.8 mm
Depth
57.6 mm
Rated voltage
250 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
no
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication
Number of levels
1
Voltage type for defect indication
-
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
6.3 A
