Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
5.2 mm
Height
66.1 mm
Depth
32.9 mm
Rated voltage
400 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of fuse insert
Blade fuse
Type of fuse holder
Pluggable
Type of indication element for defect indication
None
Supply voltage for defect-indication
Number of levels
1
Voltage type for defect indication
-
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
10 A
Downloads

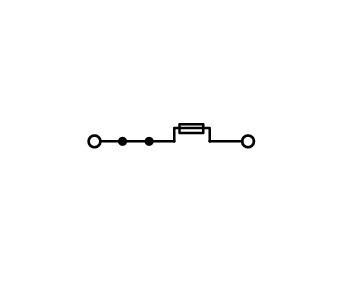

2-conductor fuse terminal block;for mini-automotive blade-style fuses;per DIN 7258-3f, ISO 8820-3;gray
Product details
SKU Code: 2202-1681
EAN Code: 4055143907651
Minimum order: 50
Some Availability (2 sellers)
Availability
Back Order FREE delivery for orders over £50.00
£130.29
(unit price £2.60) Selling in packs of 50.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
Back Order FREE delivery for orders over £50.00 | £130.29 Ex. VAT | (unit price £2.60) Selling in packs of 50. |
Price:
£130.29 ex. vat
